D2F Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACTION SPDT 0.1A 30V

...

Part	Ingress Protection	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Release Force	Mechanical Life	Mounting Type	Pretravel	Pretravel	Termination Style	Voltage Rating - DC	Operating Position	Operating Position	Current Rating (Amps)	Operating Force	Differential Travel	Differential Travel	Switch Function	Circuit	Operating Position [custom]	Operating Position [custom]	Voltage Rating - AC	Features

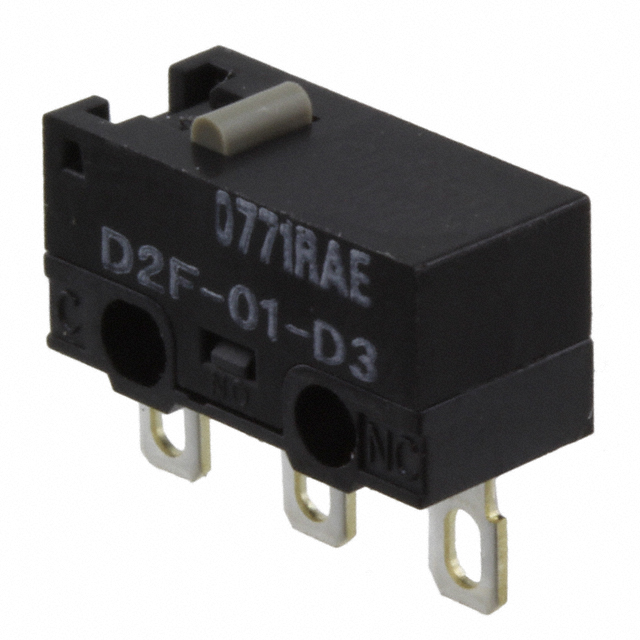

Omron Electronics Inc-EMC Div D2F-01-D3	IP40	100000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	20 gf	1000000 Cycles	Chassis Mount	0.02 in	0.5 mm	Solder Lug	30 V	0.217 in	5.5 mm	100 mA	150 gf	0.13 mm	0.005 in	On-Mom	SPDT

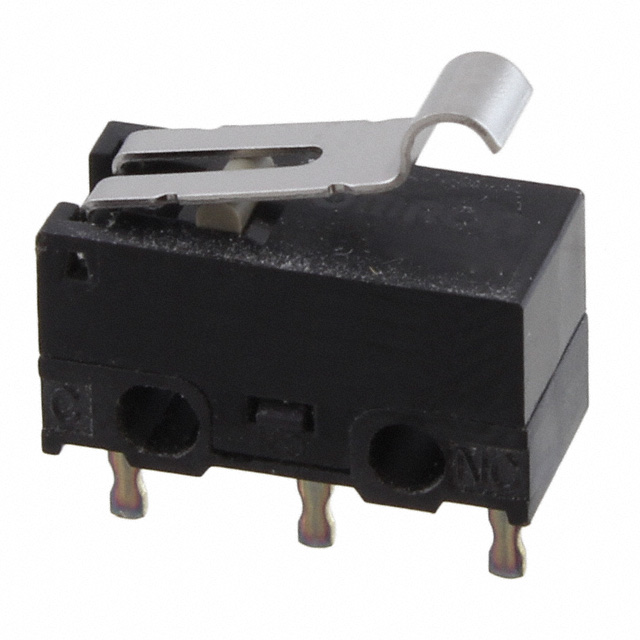

Omron Electronics Inc-EMC Div D2F-FL3-T	IP40	30000 Cycles	Lever Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	2.039 gf	1000000 Cycles	Through Hole			PC Pin	30 V			1 A 500 mA	75 gf	0.45 mm	0.018 in	On-Mom	SPDT	0.335 in	8.5 mm	125 V

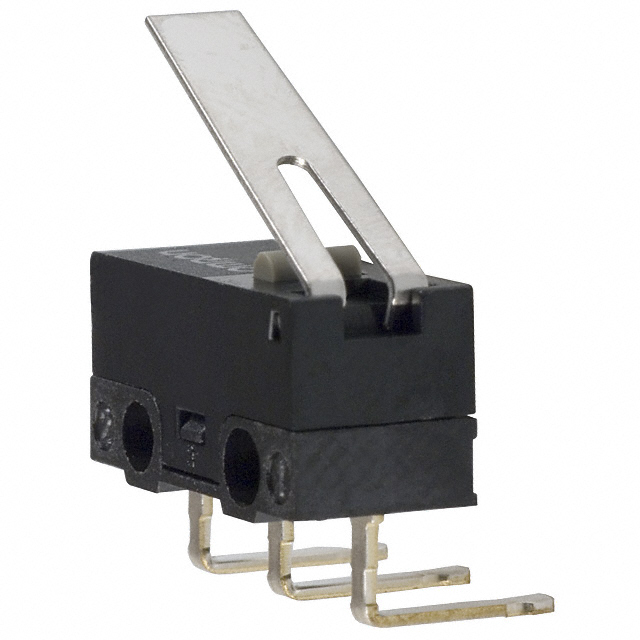

Omron Electronics Inc-EMC Div D2F-L-A1	IP40	30000 Cycles	Lever Straight	85 °C	-40 °C	0.55 mm	0.022 in	5.099 gf	1000000 Cycles	Through Hole Right Angle			PC Pin	30 V	0.268 "	6.8 mm	2 A 3 A	80 gf	0.5 mm	0.02 in	On-Mom	SPDT			125 V	Actuator Mounted Left Side
Omron Electronics Inc-EMC Div D2F-01F-D3	IP40	100000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	5.099 gf	1000000 Cycles	Chassis Mount	0.02 in	0.5 mm	Solder Lug	30 V	0.217 in	5.5 mm	100 mA	75 gf	0.13 mm	0.005 in	On-Mom	SPDT

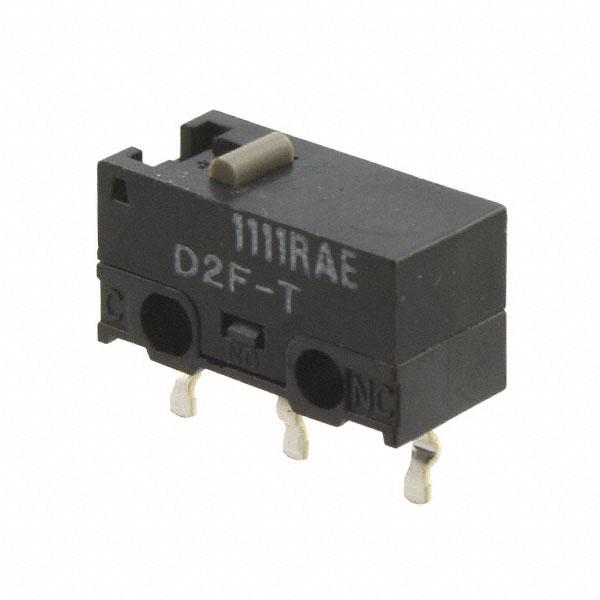

Omron Electronics Inc-EMC Div D2F-T	IP40	30000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	20 gf	1000000 Cycles	Through Hole	0.02 in	0.5 mm	PC Pin	30 V	0.217 in	5.5 mm	2 A 3 A	150 gf	0.13 mm	0.005 in	On-Mom	SPDT			125 V
Omron Electronics Inc-EMC Div D2FL30D3	IP40	30000 Cycles	Lever Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	4.079 gf	1000000 Cycles	Chassis Mount			Solder Lug	30 V	0.374 in	9.5 mm	2 A 3 A	150 gf	0.5 mm	0.02 in	On-Mom	SPDT			125 V

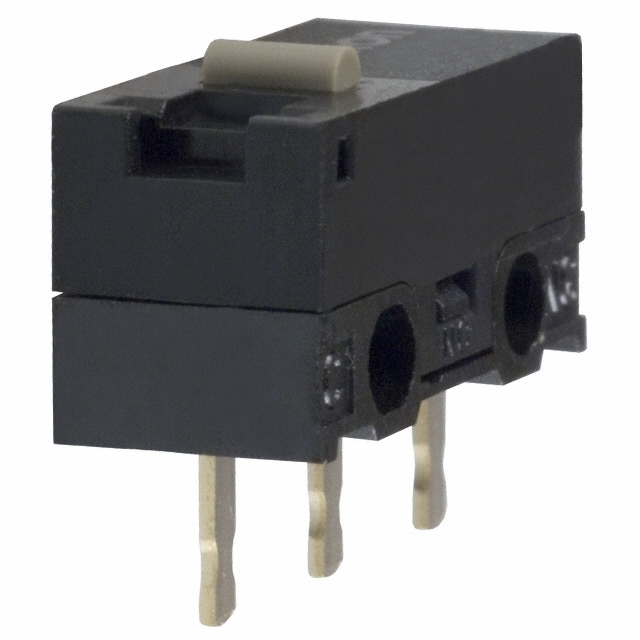

Omron Electronics Inc-EMC Div D2F-01	IP40	100000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	20 gf	1000000 Cycles	Through Hole	0.02 in	0.5 mm	PC Pin	30 V	0.217 in	5.5 mm	100 mA	150 gf	0.13 mm	0.005 in	On-Mom	SPDT

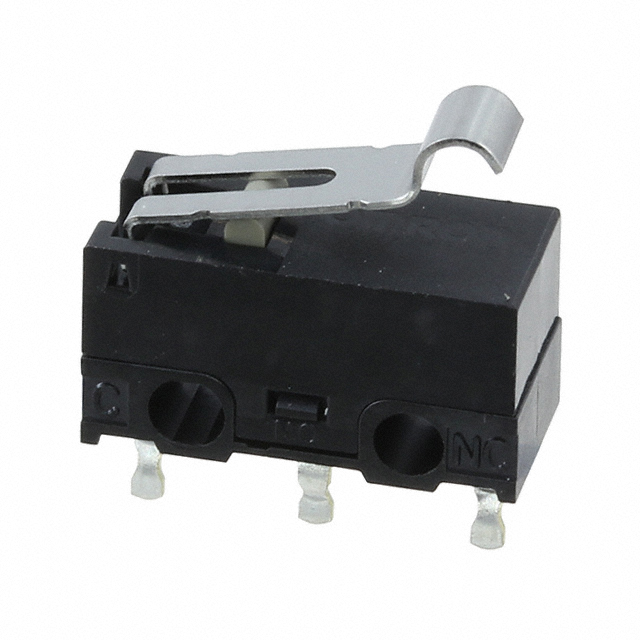

Omron Electronics Inc-EMC Div D2F-01L3-T(N)	IP40	100000 Cycles	Lever Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	5.099 gf	1000000 Cycles	Through Hole			PC Pin	30 V			100 mA	80 gf	0.45 mm	0.018 in	On-Mom	SPDT	0.335 in	8.5 mm
Omron Electronics Inc-EMC Div D2F-01F-A	IP40	100000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	5.099 gf	1000000 Cycles	Through Hole Right Angle	0.02 in	0.5 mm	PC Pin	30 V	0.217 in	5.5 mm	100 mA	75 gf	0.13 mm	0.005 in	On-Mom	SPDT

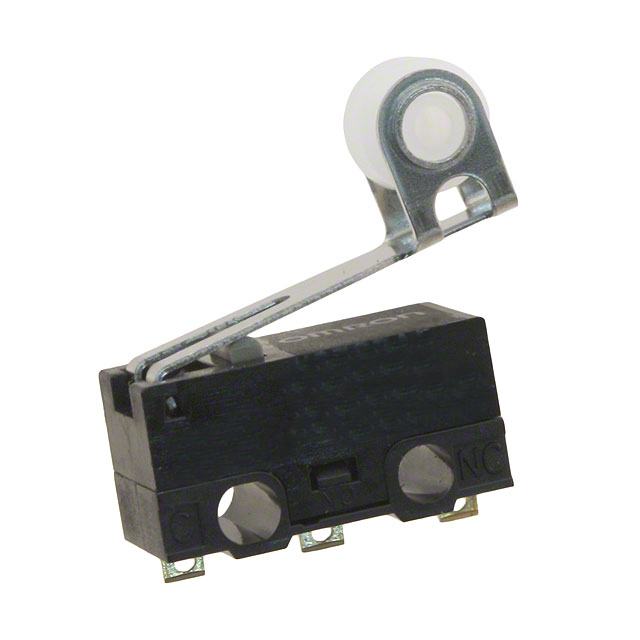

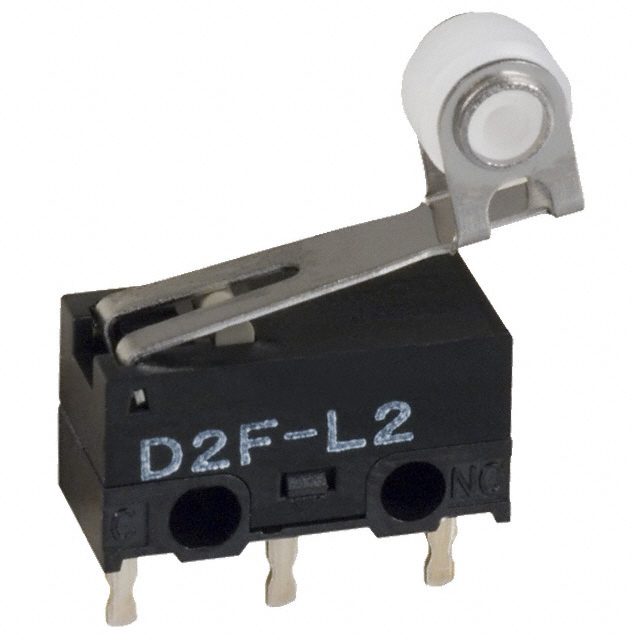

Omron Electronics Inc-EMC Div D2F-L2-D	IP40	30000 Cycles	Lever Roller	85 °C	-40 °C	0.55 mm	0.022 in	5.099 gf	1000000 Cycles	Chassis Mount			Solder Lug	30 V	0.512 in	13 mm	2 A 3 A	80 gf	0.5 mm	0.02 in	On-Mom	SPDT			125 V
