0400-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Accepts Square Pin Size	Accepts Square Pin Size	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter	Mounting Hole Diameter
Mill-Max Manufacturing Corp. 0400-0-15-80-47-80-04-0	-55 C	125 °C	0.078 "	1.98 mm	0.051 in	1.3 mm	Standard Tail	3.94 mm	0.155 in	0.025 in	0.64 mm	0.51 mm	0.02 in	Press-Fit	Beryllium Copper	200 Áin	5.08 Ám	Tin	0.31 in	7.87 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.067 in	1.7 mm
Mill-Max Manufacturing Corp. 0400-0-15-80-47-14-04-0	-55 C	125 °C	0.078 "	1.98 mm	0.051 in	1.3 mm	Standard Tail	3.94 mm	0.155 in	0.025 in	0.64 mm	0.51 mm	0.02 in	Press-Fit	Beryllium Copper	10 Áin	0.25 Ám	Gold	0.31 in	7.87 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.067 in	1.7 mm
Mill-Max Manufacturing Corp. 0400-0-15-80-47-27-04-0	-55 C	125 °C	0.078 "	1.98 mm	0.051 in	1.3 mm	Standard Tail	3.94 mm	0.155 in	0.025 in	0.64 mm	0.51 mm	0.02 in	Press-Fit	Beryllium Copper	30 Áin	0.76 Ám	Gold	0.31 in	7.87 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.067 in	1.7 mm
Mill-Max Manufacturing Corp. 0400-0-15-15-47-14-04-0	-55 C	125 °C	0.078 "	1.98 mm	0.051 in	1.3 mm	Standard Tail	3.94 mm	0.155 in	0.025 in	0.64 mm	0.51 mm	0.02 in	Press-Fit	Beryllium Copper	10 Áin	0.25 Ám	Gold	0.31 in	7.87 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.067 in	1.7 mm

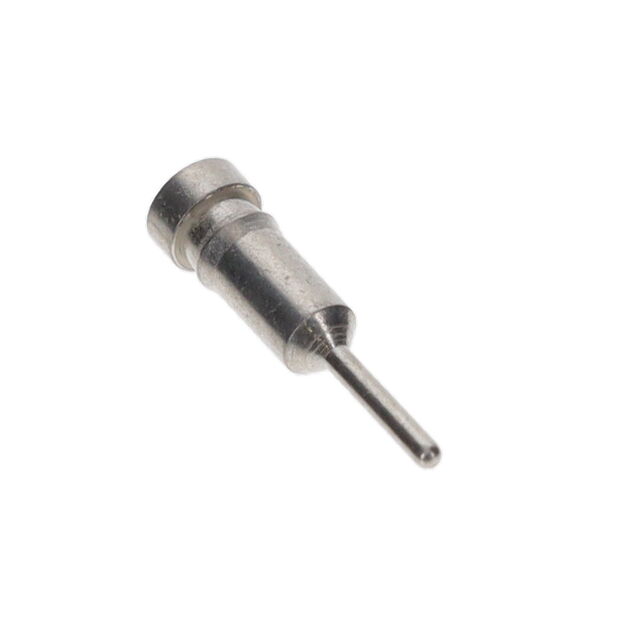

Mill-Max Manufacturing Corp. 0400-0-15-01-47-01-04-0	-55 C	125 °C	0.078 "	1.98 mm	0.051 in	1.3 mm	Standard Tail	3.94 mm	0.155 in	0.025 in	0.64 mm	0.51 mm	0.02 in	Press-Fit	Beryllium Copper	200 Áin	5.08 Ám	Tin-Lead	0.31 in	7.87 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.067 in	1.7 mm
