26PCB Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

MOUNTING BRACKET FLOW THRU SENS

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Operating Pressure	Operating Pressure	Output Type	Features	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Applications	Mounting Type	Output	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Termination Style	Package / Case	Package / Case	Output	Accuracy	Supplier Device Package
Honeywell Sensing and Productivity Solutions 26PCBKT
Honeywell Sensing and Productivity Solutions 26PCBFG5G	4-SIP	85 °C	-40 C	Barbless	5 PSI	34.47 kPa	Wheatstone Bridge	Temperature Compensated	Male Tube	0.25 in	0.25 "	137.9 kPa	20 PSI	Board Mount	Through Hole	10V	0 mV	150 mV	2.5 V	16 V	Gauge	PC Pin
Honeywell Sensing and Productivity Solutions 26PCBFA2G	4-DIP 4-SIP Module Top Port	85 °C	-40 C	Barbless	5 PSI 5 PSI	34.47 kPa 34.47 kPa	Wheatstone Bridge	Temperature Compensated	Dual Male Tube	5 mm	0.2 in	137.9 kPa	20 PSI	Board Mount Medical Ventilation	Through Hole		0 mV	50 mV	2.5 V	16 V	Compound Gauge	PC Pin PC Pins	0.3 in	7.62 mm	10 V	0.5 %	4-DIP
Honeywell Sensing and Productivity Solutions 26PCBFG5G38	4-SIP Module	85 °C	-40 C	Barbless	5 PSI	34.47 kPa	Wheatstone Bridge	Temperature Compensated	Male Tube	0.25 in	0.25 "	137.9 kPa	20 PSI		Through Hole		0 mV	50 mV	2.5 V	16 V	Gauge	PC Pin			10 V	0.5 %

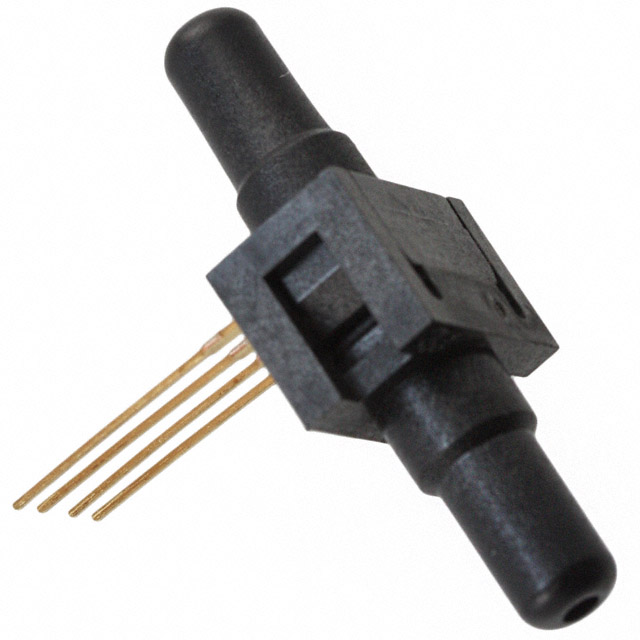

Honeywell Sensing and Productivity Solutions 26PCBFA3D	4-SIP Module	85 °C	-40 C	Barbless	5 PSI	34.47 kPa	Wheatstone Bridge	Temperature Compensated	Dual Male Tube	5 mm	0.2 in			Board Mount	Through Hole		0 mV	50 mV	2.5 V	16 V	Differential	PC Pin			10 V	0.5 %
Honeywell Sensing and Productivity Solutions 26PCBFG2G	4-SIP Module	85 °C	-40 C	Barbed	5 PSI	34.47 kPa	Wheatstone Bridge	Temperature Compensated	Male Tube	3.56 mm	0.14 in			Board Mount	Through Hole		0 mV	50 mV	2.5 V	16 V	Compound	PC Pin			10 V	0.5 %

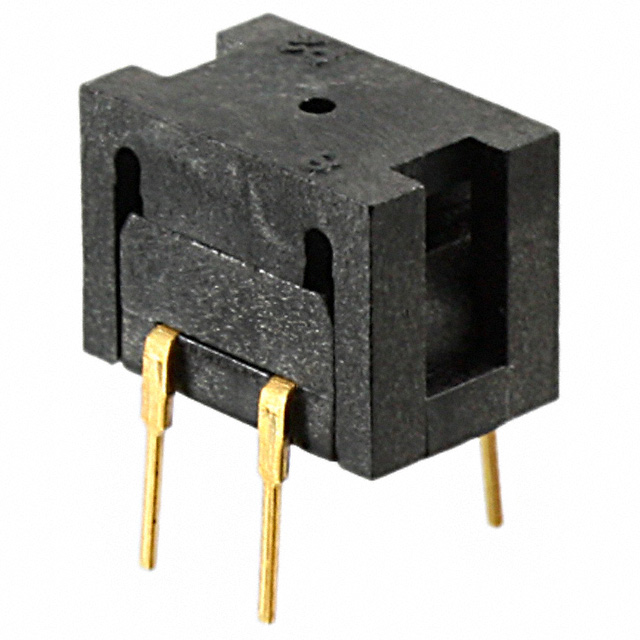

Honeywell Sensing and Productivity Solutions 26PCBFD2G	4-SIP Module	85 °C	-40 C	No Port	5 PSI	34.47 kPa	Wheatstone Bridge	Temperature Compensated						Board Mount	Through Hole		0 mV	50 mV	2.5 V	16 V	Compound	PC Pin			10 V	0.5 %
