222DMV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Circuit	Illumination	Termination Style	Actuator Orientation	Operating Force	Actuator Type	Switch Function	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Features	Mounting Type

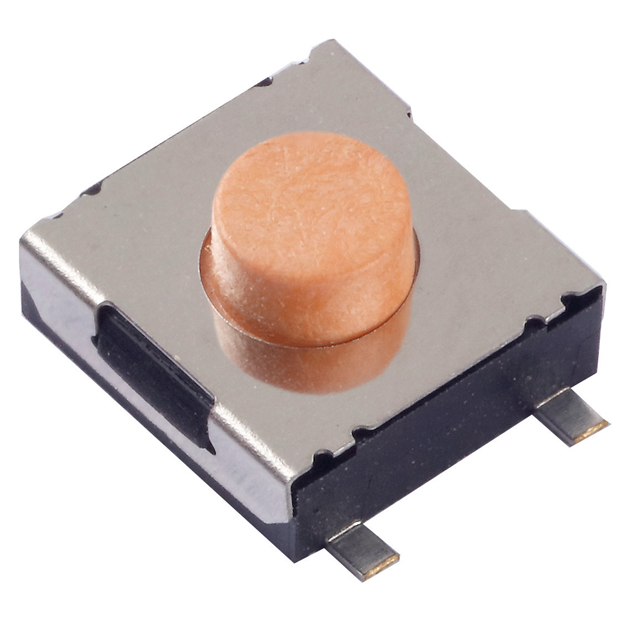

CTS Electrocomponents 222DMVCBR	0.25 mm	200000 Cycles	SPST-NO	Non-Illuminated	Gull Wing	Top Actuated	360 gf	Standard	Off-Mom	0.05 A 12 VDC	85 °C	-40 C	3.5 mm	6.2 mm	6.2 mm	Tactile Feedback	Surface Mount

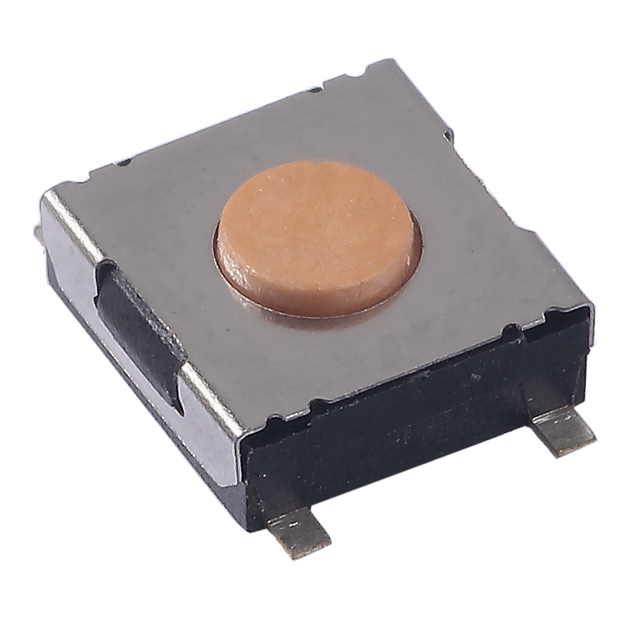

CTS Electrocomponents 222DMVABR	0.25 mm	200000 Cycles	SPST-NO	Non-Illuminated	Gull Wing	Top Actuated	360 gf	Standard	Off-Mom	0.05 A 12 VDC	85 °C	-40 C	2.5 mm	6.2 mm	6.2 mm	Tactile Feedback	Surface Mount
CTS Electrocomponents 222DMVBBR	0.25 mm	200000 Cycles	SPST-NO	Non-Illuminated	Gull Wing	Top Actuated	360 gf	Standard	Off-Mom	0.05 A 12 VDC	85 °C	-40 C	3.1 mm	6.2 mm	6.2 mm	Tactile Feedback	Surface Mount

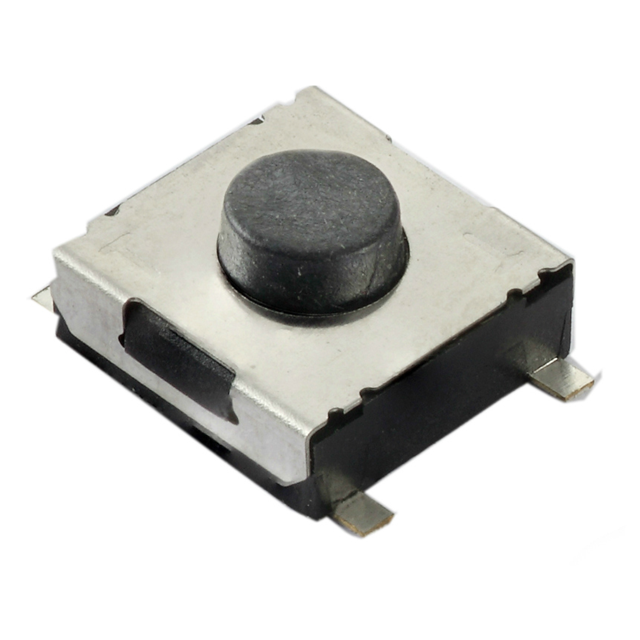

CTS Electrocomponents 222DMVCAR	0.25 mm	1000000 Cycles	SPST-NO	Non-Illuminated	Gull Wing	Top Actuated	160 gf	Standard	Off-Mom	0.05 A 12 VDC	85 °C	-40 C	3.5 mm	6.2 mm	6.2 mm	Tactile Feedback	Surface Mount
