103324 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

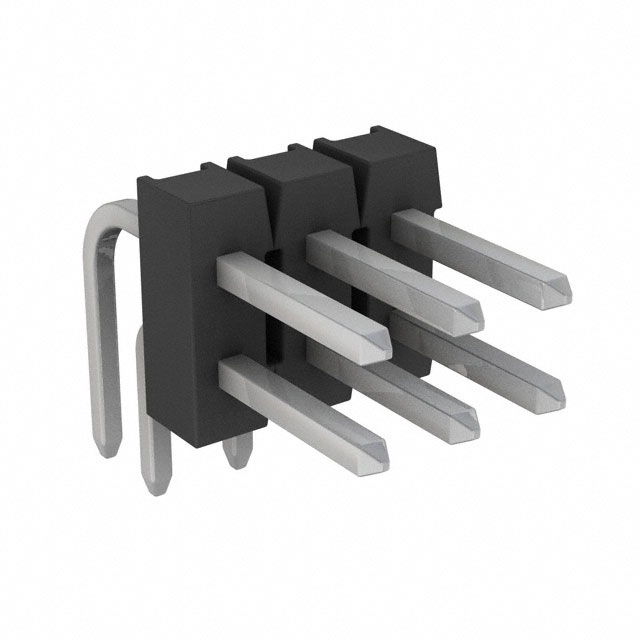

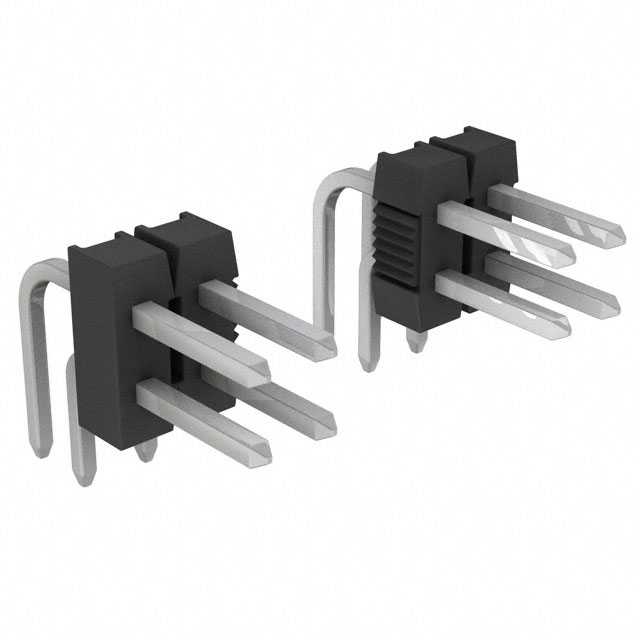

CONN HEADER R/A 58POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post	Termination	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Material Flammability Rating	Connector Type	Insulation Material	Number of Positions	Shrouding	Contact Type	Style
TE Connectivity AMP Connectors 4-103324-0-29	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	58	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-05	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	10	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-35	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	70	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-28	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	56	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-06	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	12	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-33	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	66	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 9-103324-0-12	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm		UL94 V-0	Header Breakaway	Thermoplastic	24	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-27	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	54	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-15	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	30	Unshrouded	Male Pin	Board to Board Cable
TE Connectivity AMP Connectors 4-103324-0-12	2.54 µm	100 µin	3 A	105 ░C	-65 ░C	Copper Alloy	0.238 "	6.05 mm	0.1 in	2.54 mm	Tin-Lead	8.08 mm	0.318 in	Push-Pull	All	0.11 in	2.79 mm	Solder	2	100 çin	2.54 çm	Right Angle Through Hole	Square	Black	0.1 "	2.54 mm	Tin-Lead	UL94 V-0	Header Breakaway	Thermoplastic	24	Unshrouded	Male Pin	Board to Board Cable
