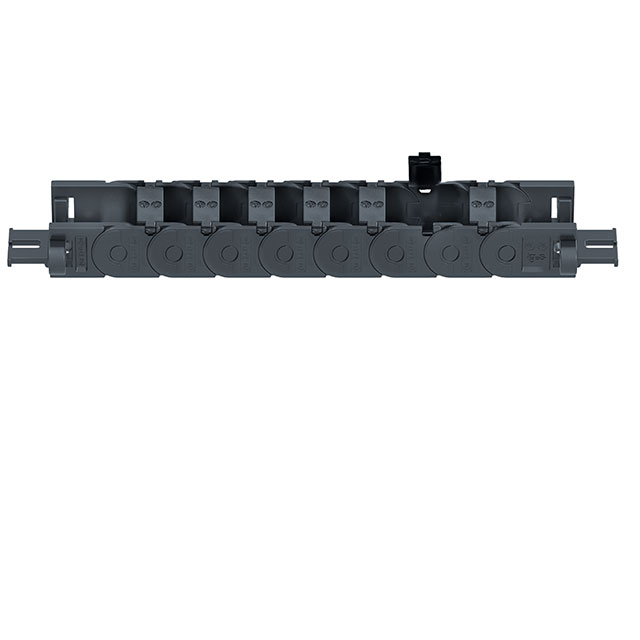

E2-15-40 Series
Manufacturer: Igus
Beta
⌘K
CABLE CARRIER .76H X 1.87W 1=1FT
| Part | Link Pitch | Link Pitch | Minimum Bend Radius [radius] | Minimum Bend Radius [radius] | Operating Temperature [Max] | Operating Temperature [Min] | Loading Side | Outer Height [z] | Outer Height [z] | Cavity Width | Cavity Width | Material | Cavity Height | Cavity Height | Frame Type | Outer Width | Outer Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Igus | 0.79 in | 20.07 mm | 48.01 mm | 1.89 " | 120 °C | -40 C | Inside and Outside Bend | 19.3 mm | 0.76 in | 1.57 in | 39.88 mm | Igumid G | 14.48 mm | 0.57 in | Open | 47.5 mm | 1.87 in |
