717-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K

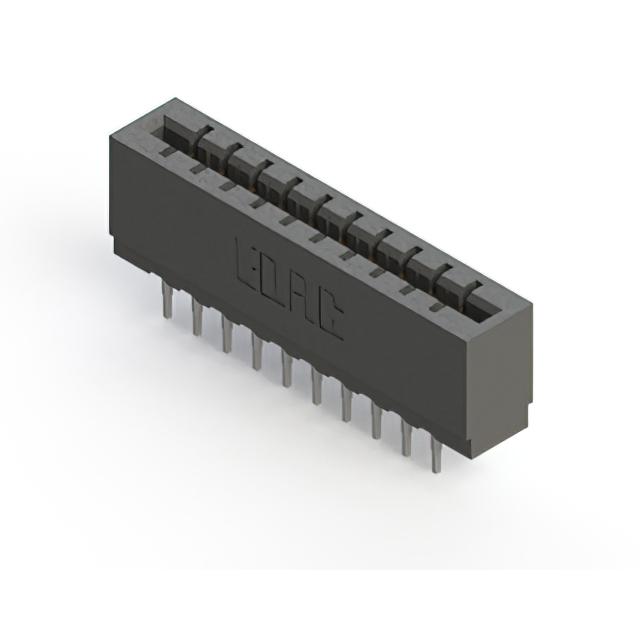

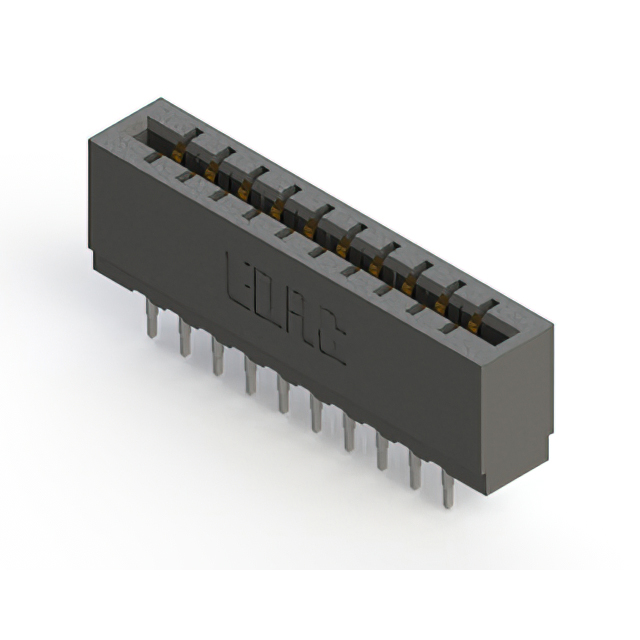

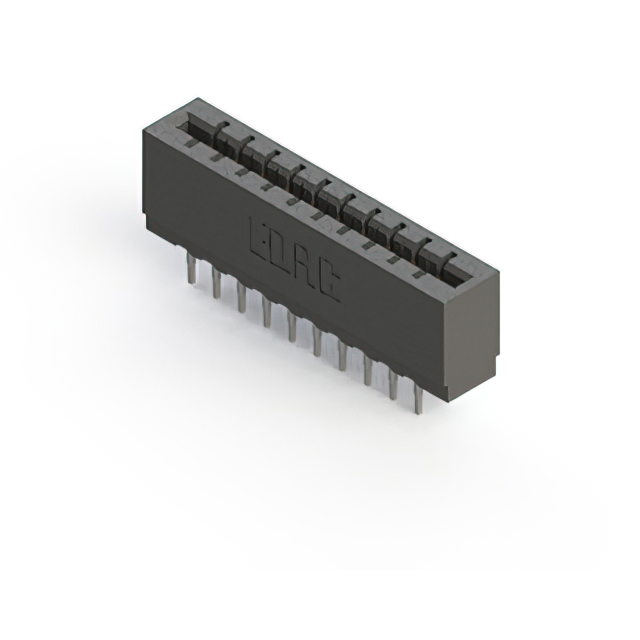

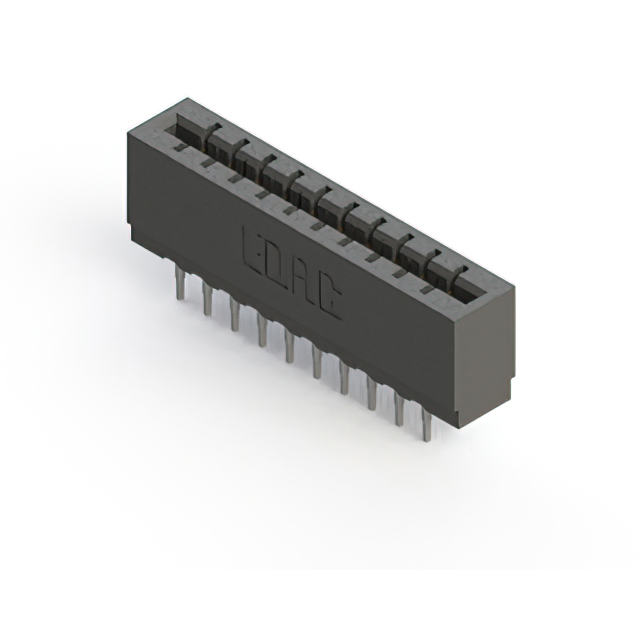

CONN EDGE SGL FMALE 20POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Material | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Mounting Type | Color | Contact Finish | Pitch | Pitch | Contact Type | Gender | Card Type | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 20 | 1 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 20 Bay/Row | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Single Edge | Press-Fit Wire Wrap | Single | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit Wire Wrap | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 20 | 1 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 20 Bay/Row | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Single Edge | Press-Fit Wire Wrap | Single | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever Make Before Break | Female | Non Specified - Dual Edge | Press-Fit | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 20 | 1 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 20 Bay/Row | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Single Edge | Press-Fit | Single | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit Wire Wrap | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit Wire Wrap | Dual | 30 Áin | 0.76 Ám | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 20 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | Through Hole | Black | Gold | 3.96 mm | 0.156 in | Cantilever | Female | Non Specified - Dual Edge | Press-Fit | Dual | 30 Áin | 0.76 Ám | 2 | 2 |
