1094 Series

Catalog

SHL RECP ASSY

Part	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Stud/Tab Size	Thickness	Thickness	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Features
TE Connectivity AMP Connectors 109464-90

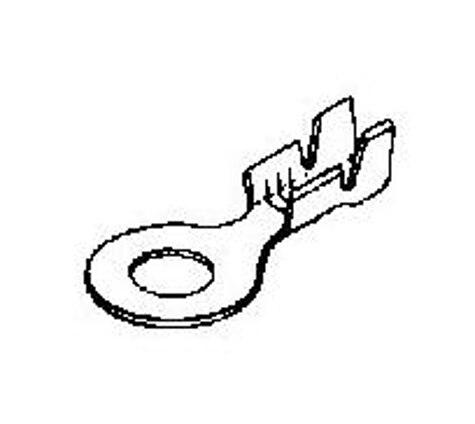

TE Connectivity AMP Connectors 109451-6	0.676 in	17.18 mm	Crimp	Tin	14 AWG	16 AWG	Non-Insulated	Free Hanging (In-Line)	0.296 in	7.52 mm	Circular	10 Stud	0.76 mm	0.03 in

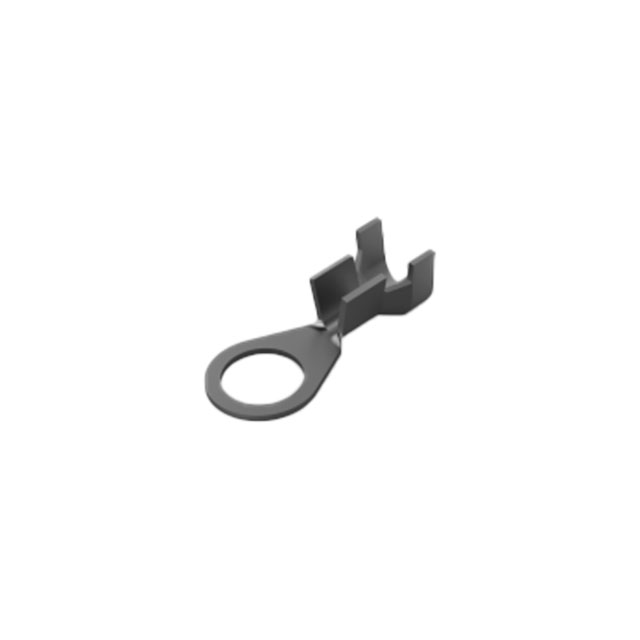

TE Connectivity AMP Connectors 109452-6	0.676 in	17.18 mm	Crimp	Tin	14 AWG	18 AWG	Non-Insulated	Free Hanging (In-Line)	0.296 in	7.52 mm	Circular	10 Stud	0.51 mm	0.02 in	2.67 mm 4.32 mm	0.105 in 0.17 in	Brass	Serrated Termination
