2.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 3 Circuits, Tape and Reel
2.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 3 Circuits, Tape and Reel
2.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 3 Circuits, Tape and Reel
| Part | Mounting Type | Insulation Material | Material Flammability Rating | Contact Type | Number of Positions | Contact Finish - Mating | Number of Rows | Applications | Voltage Rating | Connector Type | Termination | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Current Rating (Amps) | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Style | Contact Finish - Post | Shrouding | Insulation Color | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

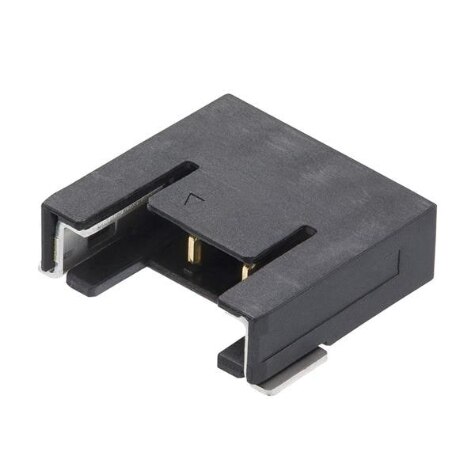

 Molex | Surface Mount Right Angle | Nylon Polyamide (PA) | UL94 V-0 | Male Blade | 2 | Gold | 1 | Automotive General Purpose Industrial Telecommunications | 250 VDC | Header | Solder | 0.102 in | 2.6 mm | 3.94 µin | 0.1 µm | Copper Alloy | 6.5 A | 0.079 in | 2 mm | Rectangular | Board to Cable/Wire | Gold | Shrouded - 4 Wall | Black | Detent Lock | -40 °C | 105 ░C | All | Solder Retention |
Molex | Surface Mount Right Angle | Nylon Polyamide (PA) | UL94 V-0 | Male Blade | 4 | Gold | 1 | Automotive General Purpose Industrial Telecommunications | 250 VDC | Header | Solder | 0.102 in | 2.6 mm | 3.94 µin | 0.1 µm | Copper Alloy | 6.5 A | 0.079 in | 2 mm | Rectangular | Board to Cable/Wire | Gold | Shrouded - 4 Wall | Black | Detent Lock | -40 °C | 105 ░C | All | Solder Retention |
 Molex | Surface Mount Right Angle | Nylon Polyamide (PA) | UL94 V-0 | Male Blade | Gold | 1 | Automotive General Purpose Industrial Telecommunications | 250 VDC | Header | Solder | 0.102 in | 2.6 mm | 3.94 µin | 0.1 µm | Copper Alloy | 6.5 A | 0.079 in | 2 mm | Rectangular | Board to Cable/Wire | Gold | Shrouded - 4 Wall | Black | Detent Lock | -40 °C | 105 ░C | All | Solder Retention |
