2271195 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

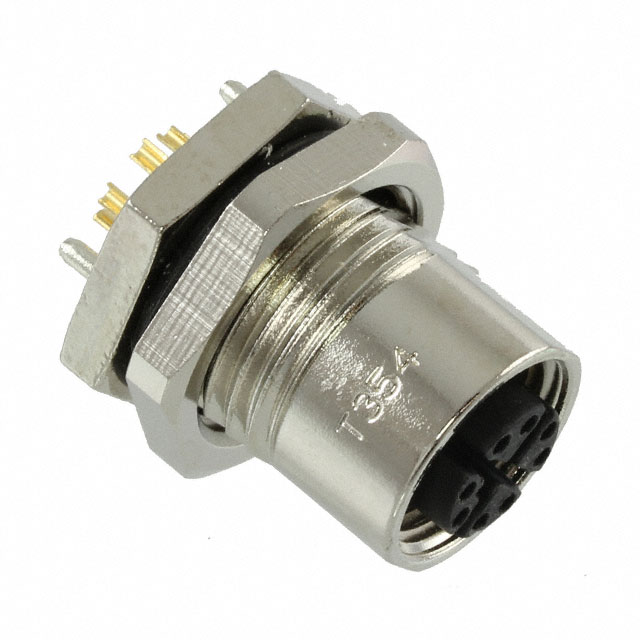

CONN RCPT FMALE 8POS SOLDER CUP
| Part | Mounting Feature | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Contact Finish - Mating | Number of Positions | Current Rating (Amps) | Shell Finish | Primary Material | Shell Material | Connector Type | Applications | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Bulkhead - Front Side Nut | M12-8 | -40 °C | 70 °C | 48 VDC | Silver | X | 0.5 µm | 19.7 µin | Shielded | Gold | 8 | 0.5 A | Nickel | Metal | Zinc Aluminum Alloy | Receptacle Female Sockets | Automotive Industrial | Board Guide | IP67 - Dust Tight Waterproof |
