PRPC039 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 78POS 2.54MM

Part	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Style	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Type	Number of Positions Loaded	Number of Rows [custom]	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Shrouding	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Post	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Number of Rows

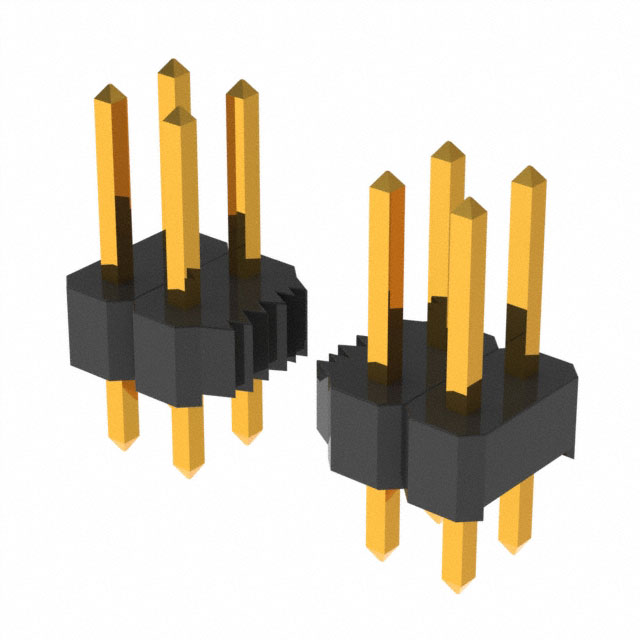

Sullins Connector Solutions PRPC039DAAN-RC	Flash	UL94 V-0	78	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash	0.448 in	11.39 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	Header Breakaway	Male Pin	All	2	Brass	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold
Sullins Connector Solutions PRPC039DFAN-RC	Flash	UL94 V-0	78	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash			0.318 in	8.08 mm	0.1 in	2.54 mm	Header Breakaway	Male Pin	All	2	Brass	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold	13.63 mm	0.537 in

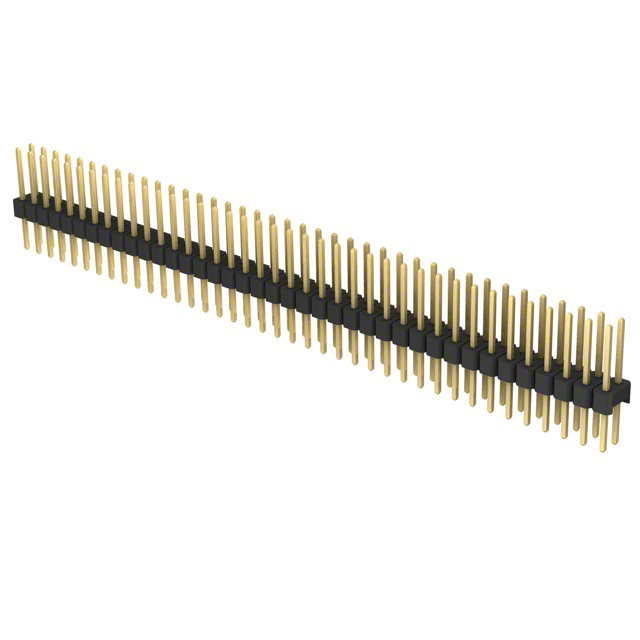

Sullins Connector Solutions PRPC039DFBN-RC	Flash	UL94 V-0	78	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash		0.637 in	0.318 in	8.08 mm	0.1 in	2.54 mm	Header Breakaway	Male Pin	All	2	Brass	Polybutylene Terephthalate (PBT)	5.58 mm	0.22 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold			16.17 mm
Sullins Connector Solutions PRPC039SBCN-M71RC	Flash	UL94 V-0	39	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash			0.23 in	5.84 mm			Header Breakaway	Male Pin	All		Brass	Polybutylene Terephthalate (PBT)	8.13 mm	0.32 in	Solder	Black	Unshrouded	Square	Right Angle Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold				1
Sullins Connector Solutions PRPC039SFAN-RC	Flash	UL94 V-0	39	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash			0.318 in	8.08 mm			Header Breakaway	Male Pin	All		Brass	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold	13.63 mm	0.537 in		1

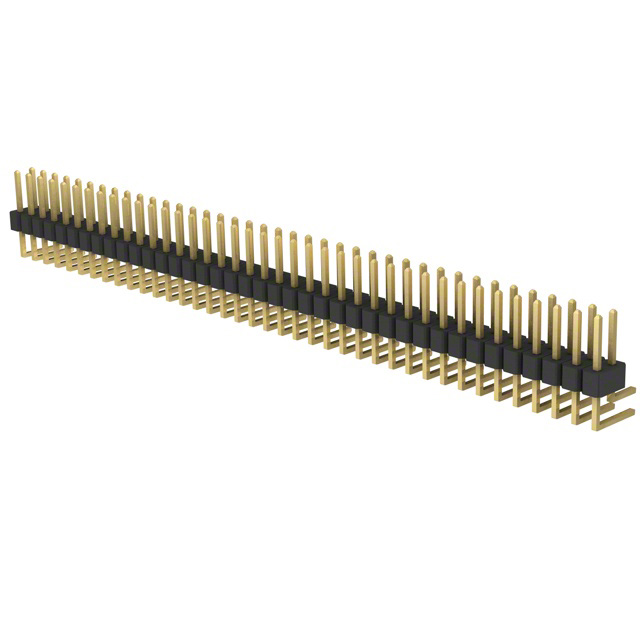

Sullins Connector Solutions PRPC039DBAN-M71RC	Flash	UL94 V-0	78	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash			0.23 in	5.84 mm	0.1 in	2.54 mm	Header Breakaway	Male Pin	All	2	Brass	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	Solder	Black	Unshrouded	Square	Right Angle Through Hole	0.1 "	2.54 mm	3 A	0.197 "	5 mm	Gold

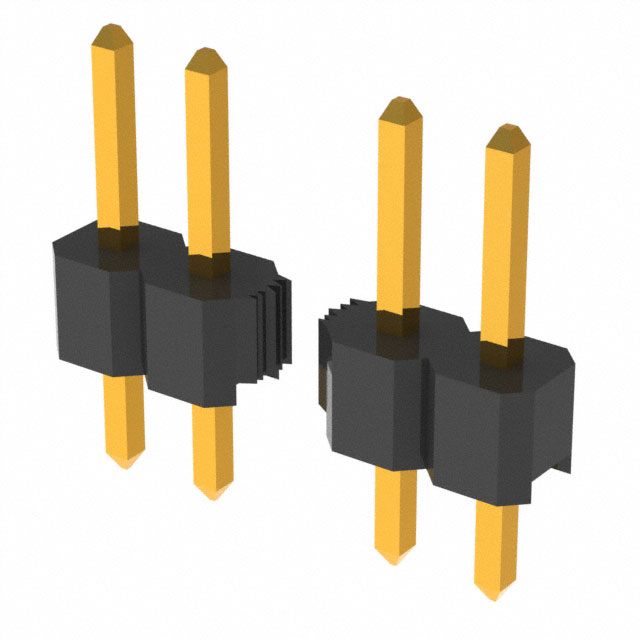

Sullins Connector Solutions PRPC039SAAN-RC	Flash	UL94 V-0	39	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash	0.448 in	11.39 mm	0.23 in	5.84 mm			Header Breakaway	Male Pin	All		Brass	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold				1

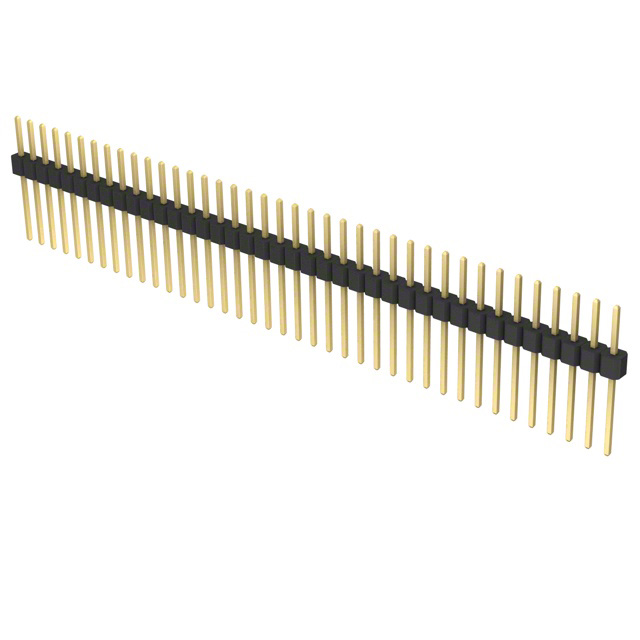

Sullins Connector Solutions PRPC039SADN-RC	Flash	UL94 V-0	39	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash	0.748 in	19.01 mm	0.23 in	5.84 mm			Header Breakaway	Male Pin	All		Brass	Polybutylene Terephthalate (PBT)	10.67 mm	0.42 in	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold				1

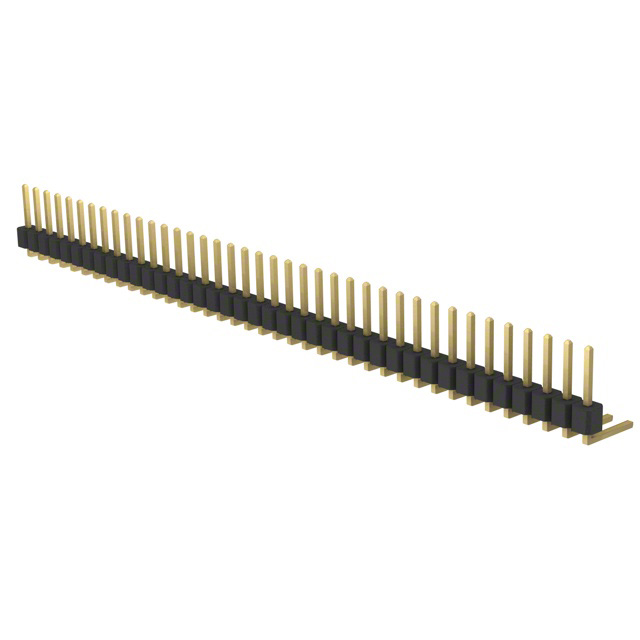

Sullins Connector Solutions PRPC039SBBN-M71RC	Flash	UL94 V-0	39	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash			0.23 in	5.84 mm			Header Breakaway	Male Pin	All		Brass	Polybutylene Terephthalate (PBT)	5.58 mm	0.22 in	Solder	Black	Unshrouded	Square	Right Angle Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold				1

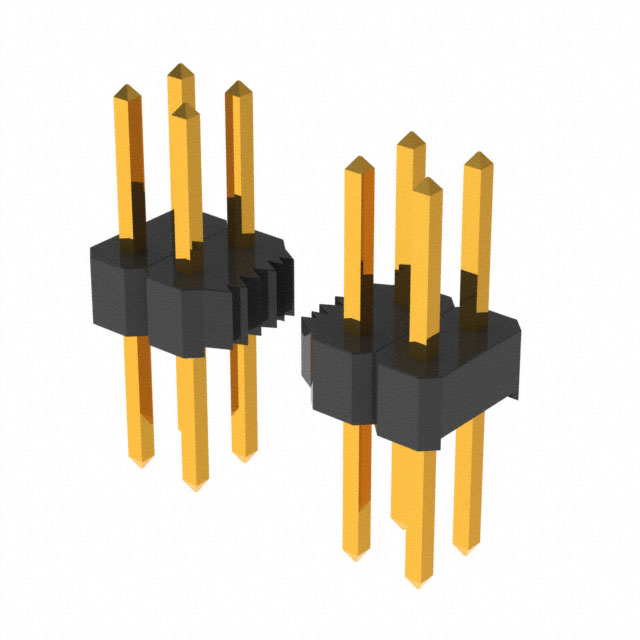

Sullins Connector Solutions PRPC039DABN-RC	Flash	UL94 V-0	78	Gold	Board to Board Cable	Push-Pull	-40 C	105 ░C	Flash	0.558 in	14.18 mm	0.23 in	5.84 mm	0.1 in	2.54 mm	Header Breakaway	Male Pin	All	2	Brass	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 "	Solder	Black	Unshrouded	Square	Through Hole	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	Gold
