001606 Series
Manufacturer: Molex
Beta
⌘K

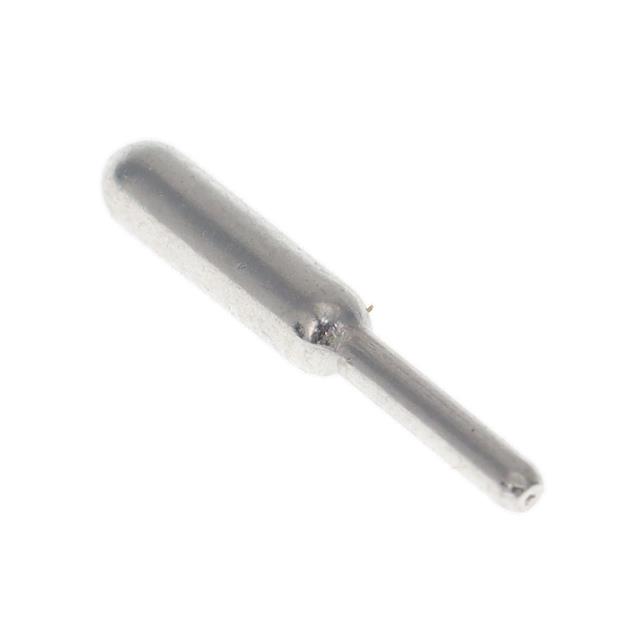

CONN PC PIN CIRC 0.093DIA TIN
| Part | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Contact Finish | Contact Material | Termination | Terminal Style | Length - Overall [x] | Length - Overall [x] | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Length - Overall | Length - Overall | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange | Pin Size - Below Flange | Pin Size - Below Flange | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Non-Insulated | 2.36 mm | 0.093 in | Through Hole | Electro-Tin | Brass | Solder | Flanged | 0.592 " | 15.04 mm | Single Post | 0.093 in | 2.36 mm | 0.125 in | 3.18 mm | 200 Áin | 5.08 Ám | |||||||||||
 Molex | Tin | 200 Áin | 5.08 Ám | Solder | Pin | |||||||||||||||||||||||
Molex | Non-Insulated | 2.36 mm | 0.093 in | Through Hole | Electro-Tin | Brass Alloy | Solder | Single End | PC Pin | 0.093 in | 2.36 mm | 0.125 in | 3.18 mm | 200 Áin | 5.08 Ám | 0.77 in | 19.56 mm | 3.56 mm | 0.14 " | 0.584 in | 14.83 mm | |||||||
Molex | Non-Insulated | Through Hole | Tin | Brass | Solder | Single End | 0.435 in | 11.05 mm | PC Pin | 0.062 in | 1.57 mm | 0.09 in | 2.29 mm | 3.18 mm | 0.125 " | 0.28 in | 1.58 mm | 0.062 in | 7.11 mm |
