PRPC027 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 54POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Finish - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Insulation Height	Insulation Height	Contact Type	Number of Positions	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Termination	Style	Fastening Type	Material Flammability Rating	Mounting Type	Number of Rows	Overall Contact Length	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

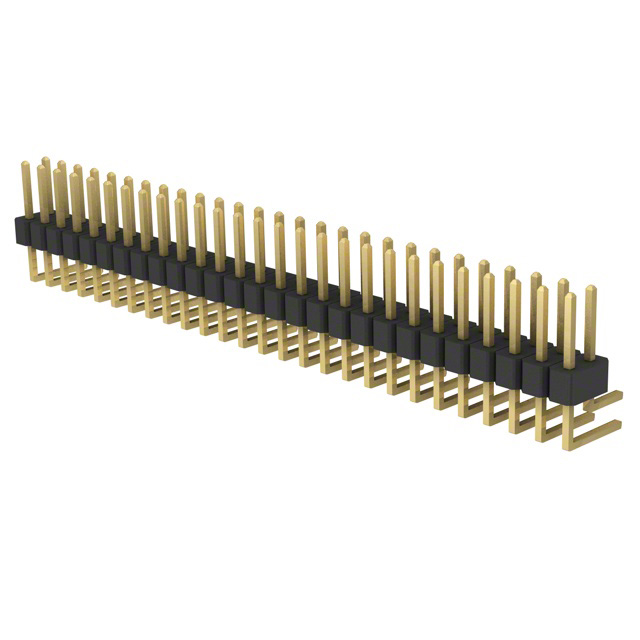

Sullins Connector Solutions PRPC027DBAN-M71RC	Flash	Flash	All	2	0.23 in	5.84 mm	Gold	Gold	Header Breakaway	0.1 in	2.54 mm	Square	0.197 "	5 mm	Male Pin	54	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	3.05 mm	0.12 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Right Angle Through Hole
Sullins Connector Solutions PRPC027SAAN-RC	Flash	Flash	All		0.23 in	5.84 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	3.05 mm	0.12 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Through Hole	1	0.448 in	11.39 mm

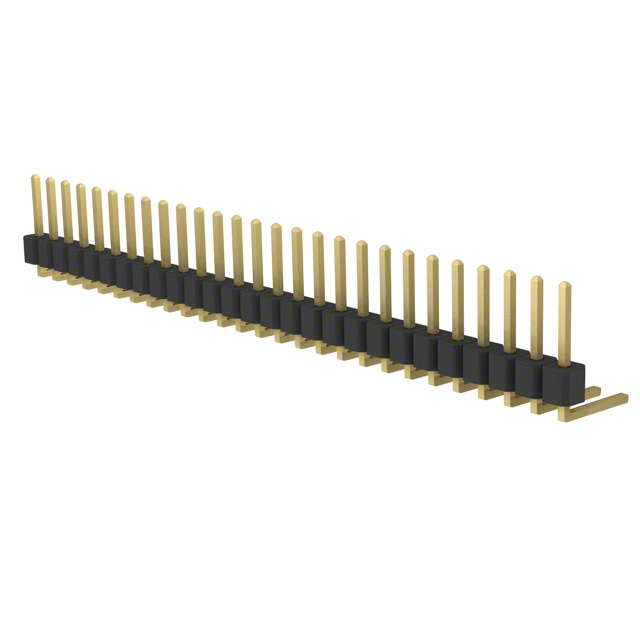

Sullins Connector Solutions PRPC027SBBN-M71RC	Flash	Flash	All		0.23 in	5.84 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	5.58 mm	0.22 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Right Angle Through Hole	1

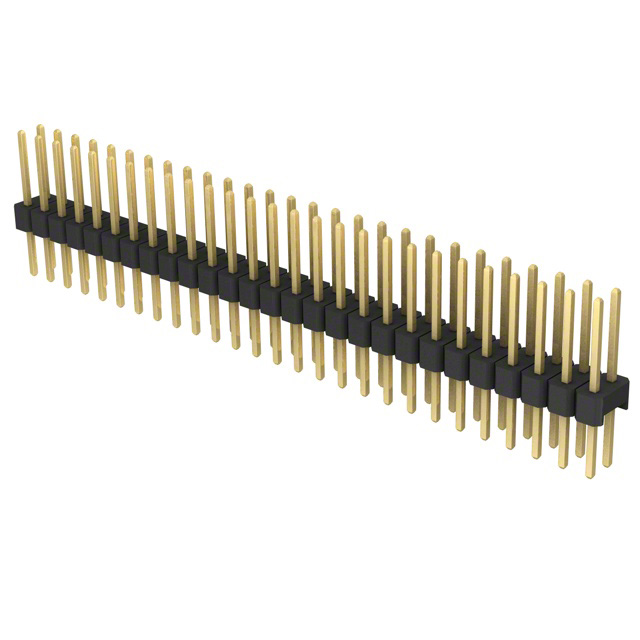

Sullins Connector Solutions PRPC027DFBN-RC	Flash	Flash	All	2	0.318 in	8.08 mm	Gold	Gold	Header Breakaway	0.1 in	2.54 mm	Square	0.098 "	2.5 mm	Male Pin	54	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	5.58 mm	0.22 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Through Hole			0.637 in	16.17 mm

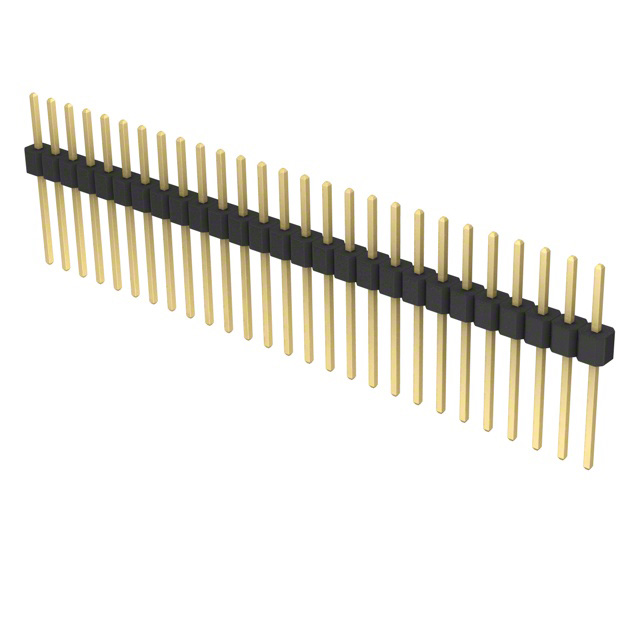

Sullins Connector Solutions PRPC027SADN-RC	Flash	Flash	All		0.23 in	5.84 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	10.67 mm	0.42 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Through Hole	1	0.748 in	19.01 mm
Sullins Connector Solutions PRPC027SFAN-RC	Flash	Flash	All		0.318 in	8.08 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	3.05 mm	0.12 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Through Hole	1				13.63 mm	0.537 in

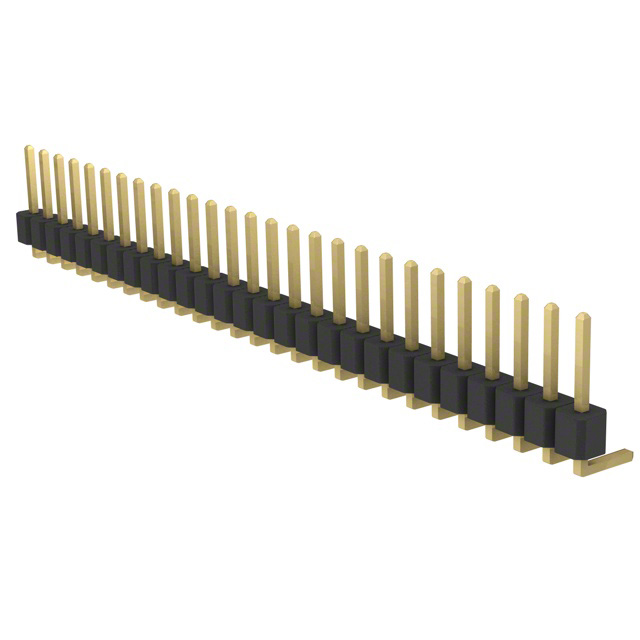

Sullins Connector Solutions PRPC027SBAN-M71RC	Flash	Flash	All		0.23 in	5.84 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	3.05 mm	0.12 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Right Angle Through Hole	1

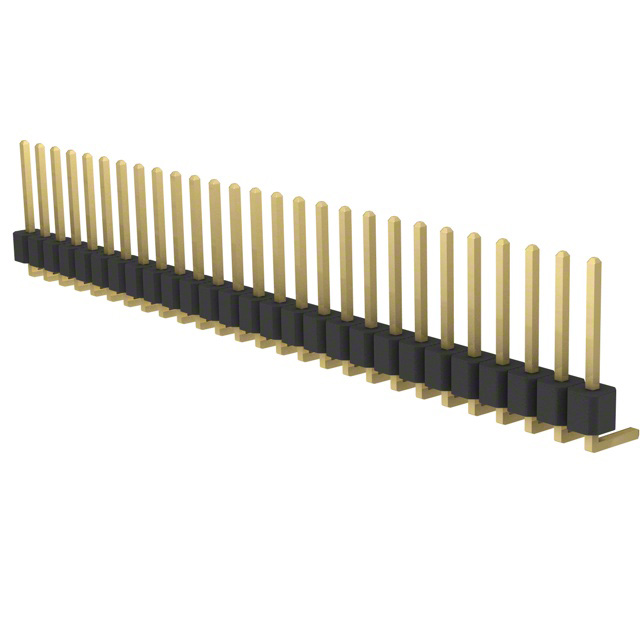

Sullins Connector Solutions PRPC027SGAN-M71RC	Flash	Flash	All		0.318 in	8.08 mm	Gold	Gold	Header Breakaway			Square	0.098 "	2.5 mm	Male Pin	27	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 "	2.54 mm	3.05 mm	0.12 in	3 A	-40 C	105 ░C	Brass	Black	Solder	Board to Board Cable	Push-Pull	UL94 V-0	Right Angle Through Hole	1
