PEC16 Series

Manufacturer: Sullins Connector Solutions

Catalog

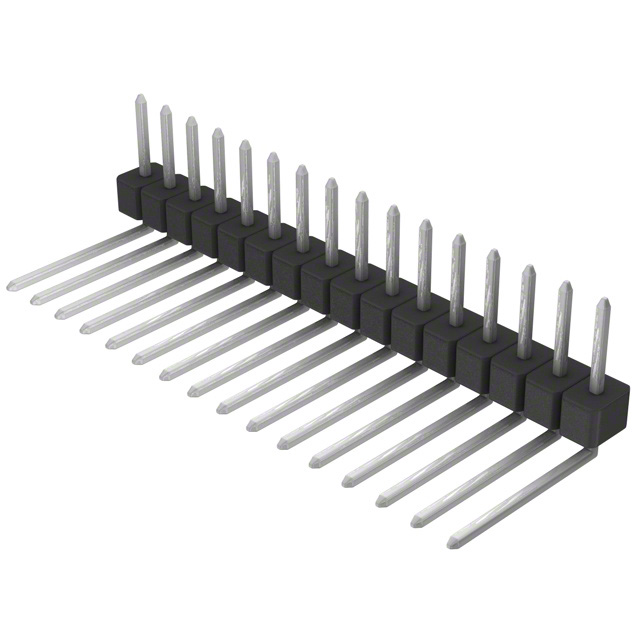

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Contact Material	Shrouding	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Number of Positions	Current Rating (Amps)	Insulation Height	Insulation Height	Style	Number of Rows	Material Flammability Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]
Sullins Connector Solutions PEC16SBEN	2.54 µm	100 µin	100 çin	2.54 çm	Right Angle Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	3.56 mm	0.14 in	Board to Board Cable	1	UL94 V-0	Tin	0.5 "	12.7 mm

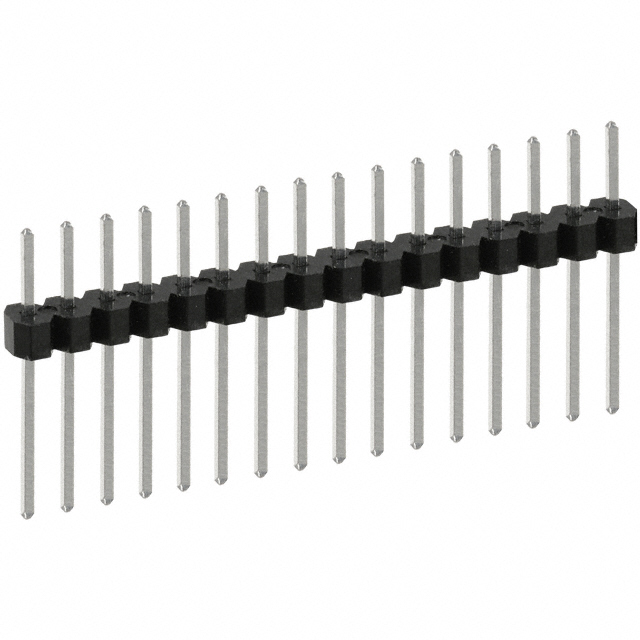

Sullins Connector Solutions PEC16SAEN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.52 in	13.21 mm	0.85 in	21.59 mm

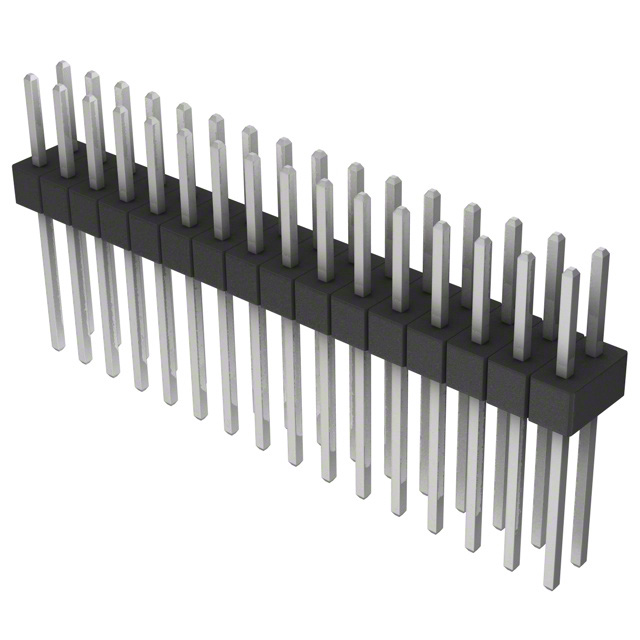

Sullins Connector Solutions PEC16SADN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.42 in	10.67 mm			19.05 mm	0.75 in

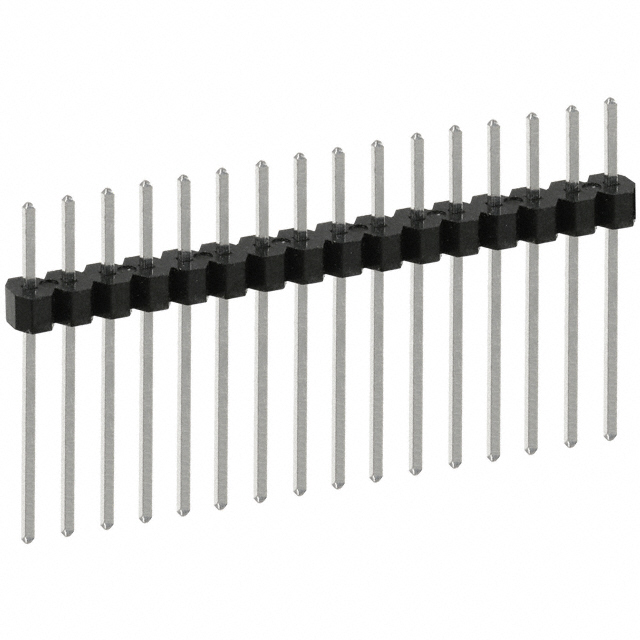

Sullins Connector Solutions PEC16SAGN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.72 "	18.29 mm	1.05 in	26.67 mm

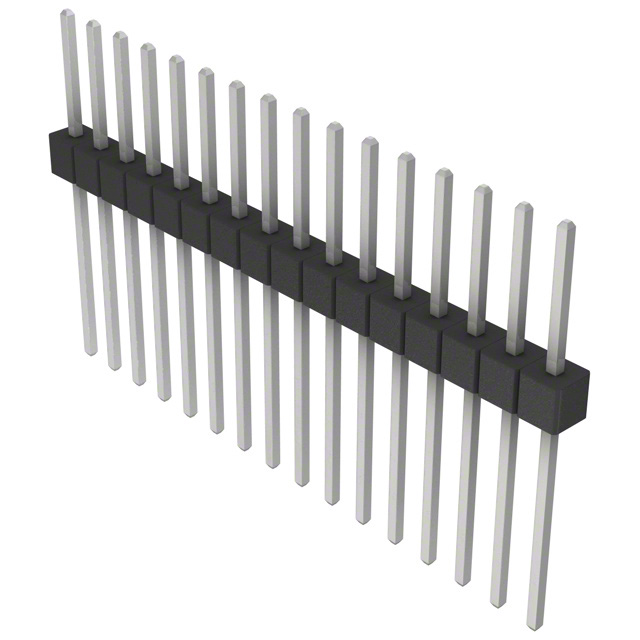

Sullins Connector Solutions PEC16SFEN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.52 in	13.21 mm	0.938 in	23.83 mm

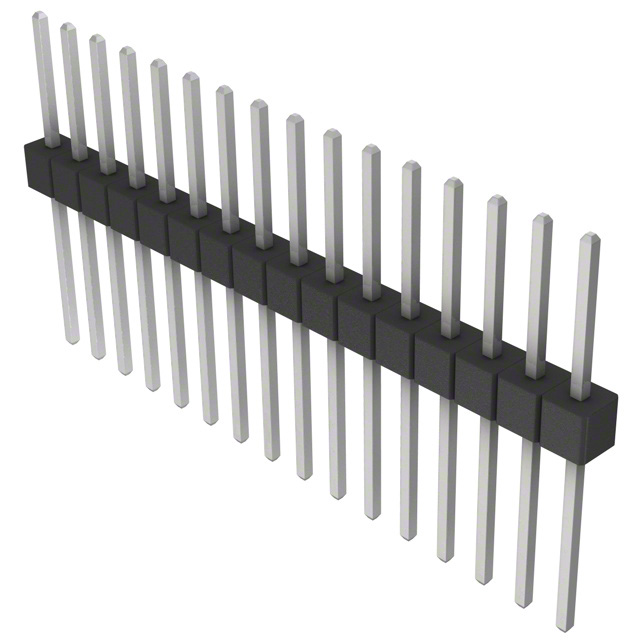

Sullins Connector Solutions PEC16SFDN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.42 in	10.67 mm	0.838 in	21.29 mm

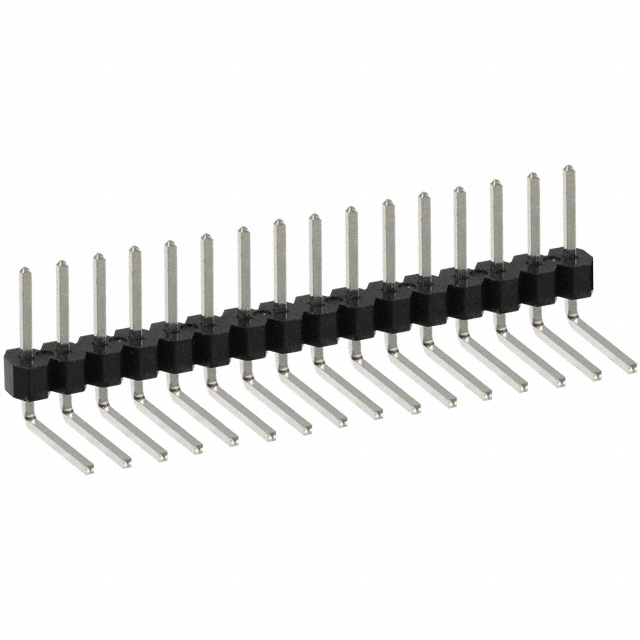

Sullins Connector Solutions PEC16SBCN	2.54 µm	100 µin	100 çin	2.54 çm	Right Angle Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	3.56 mm	0.14 in	Board to Board Cable	1	UL94 V-0	Tin	0.3 in	7.62 mm

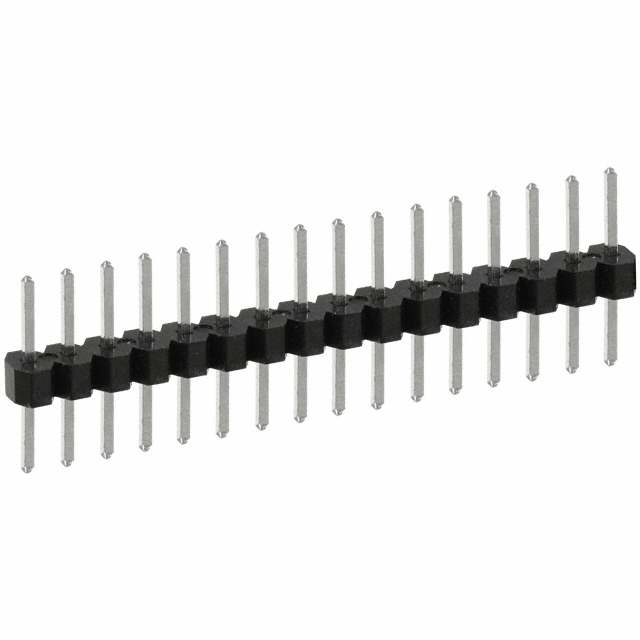

Sullins Connector Solutions PEC16SABN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.23 "	5.84 mm	0.56 in	14.22 mm
Sullins Connector Solutions PEC16SAHN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All	16	3 A	2.54 mm	0.1 in	Board to Board Cable	1	UL94 V-0	Tin	0.82 in	20.83 mm	1.15 in	29.21 mm

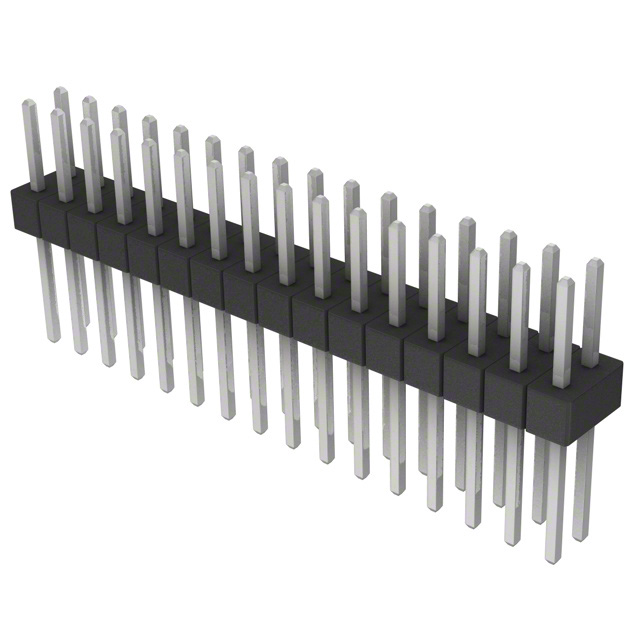

Sullins Connector Solutions PEC16DACN	2.54 µm	100 µin	100 çin	2.54 çm	Through Hole	Black	Phosphor Bronze	Unshrouded	Male Pin	0.1 "	2.54 mm	Push-Pull	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Solder	-65 ░C	125 °C	Square	All		3 A	2.54 mm	0.1 in	Board to Board Cable		UL94 V-0	Tin	0.32 in	8.13 mm	0.65 in	16.51 mm			0.1 in	2.54 mm	2
