807-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K

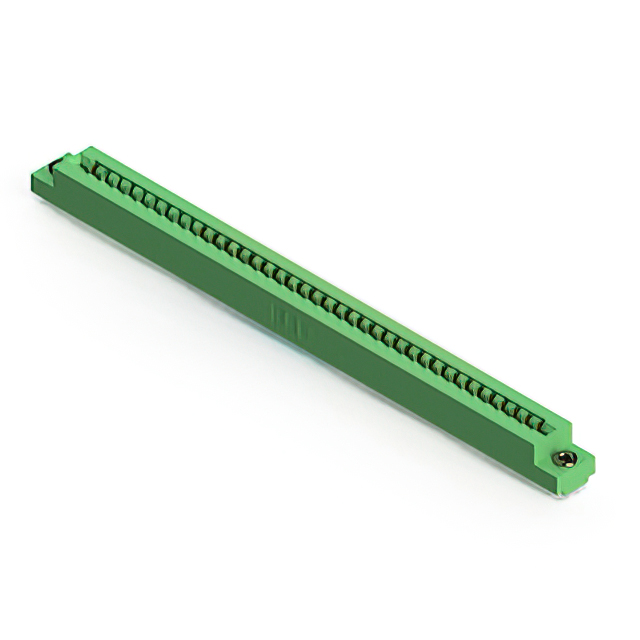

CONN EDGE DUAL FMALE 76POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Card Type | Gender | Contact Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Termination | Flange Feature | Contact Material | Number of Positions | Number of Rows [custom] | Features | Number of Positions/Bay/Row [custom] | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Tin | Green | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 76 | 2 | Card Extender | 38 | Board Edge Straddle Mount | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Tin | Green | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | 76 | 2 | 38 | Through Hole | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Gold | Green | Solder | Side Mount Opening Unthreaded | Copper Alloy | 76 | 2 | 38 | Through Hole | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Gold | Green | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 76 | 2 | 38 | Through Hole | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Tin | Green | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | Copper Alloy | 76 | 2 | 38 | Through Hole | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Single | 125 °C | -40 C | Tin | Green | Solder | Side Mount Opening Unthreaded | Copper Alloy | 76 | 2 | 38 | Right Angle Through Hole | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Gold | Green | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | 76 | 2 | 38 | Through Hole | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Dual | 125 °C | -40 C | Tin | Green | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | 76 | 2 | Card Extender | 38 | Board Edge Straddle Mount | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Single | 125 °C | -40 C | Gold | Green | Solder | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 76 | 2 | 38 | Right Angle Through Hole | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Female | Semi Bellows | Single | 125 °C | -40 C | Gold | Green | Solder | Floating Bobbin Flush Mount | Copper Alloy | 76 | 2 | 38 | Right Angle Through Hole | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin |
