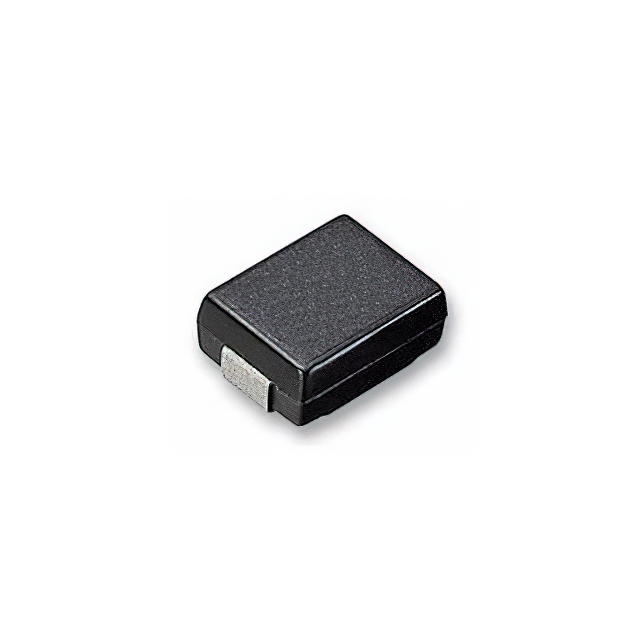

MVS4032 Series

Manufacturer: Meritek

Catalog

VARISTOR 4032 22V 300A 2SMD JLEA

Part	Varistor Voltage (Typ)	Varistor Voltage (Min) [Min]	Current - Surge	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Maximum AC Volts [Max]	Package / Case	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Mounting Type	Capacitance @ Frequency	Energy	Varistor Voltage (Max)
Meritek MVS4032P220K	22 V	20 V	300 A	1	85 C	-40 ¯C	14 V	2-SMD J-Lead	18 V	24 V	MLCV Surface Mount	1 kHz 2300 pF	1.3 J
Meritek MVS4032P331K	330 V	297 V	1200 A	1	85 C	-40 ¯C	215 V	2-SMD J-Lead		363 V	MLCV Surface Mount	120 pF	22 J
Meritek MVS4032P681K	680 V	612 V	1200 A	1	85 C	-40 ¯C	420 V	2-SMD J-Lead	560 V	748 V	MLCV Surface Mount	55 pF	35 J
Meritek MVS4032P201K	200 V	180 V	1200 A	1	85 C	-40 ¯C	130 V	2-SMD J-Lead	170 V	220 V	MLCV Surface Mount	200 pF	15 J
Meritek MVS4032P221K	220 V	198 V	1200 A	1	85 C	-40 ¯C	140 V	2-SMD J-Lead	180 V		MLCV Surface Mount	180 pF	18 J	242 V
Meritek MVS4032P180K	18 V	16 V	300 A	1	85 C	-40 ¯C	11 V	2-SMD J-Lead	14 V	20 V	MLCV Surface Mount	1 kHz 2750 pF	1.1 J
Meritek MVS4032P680K	68 V	61 V	300 A	1	85 C	-40 ¯C	40 V	2-SMD J-Lead	56 V		MLCV Surface Mount	900 pF	4.1 J	75 V
Meritek MVS4032P241K	240 V	216 V	1200 A	1	85 C	-40 ¯C	150 V	2-SMD J-Lead	200 V	264 V	MLCV Surface Mount	170 pF	18.5 J
Meritek MVS4032P361K	360 V	324 V	1200 A	1	85 C	-40 ¯C	230 V	2-SMD J-Lead	300 V	396 V	MLCV Surface Mount	115 pF	23 J
Meritek MVS4032P561K	560 V	504 V	1200 A	1	85 C	-40 ¯C	350 V	2-SMD J-Lead	450 V	616 V	MLCV Surface Mount	80 pF	33 J
