KX022 Series
Manufacturer: Kionix Inc.
Beta
⌘K

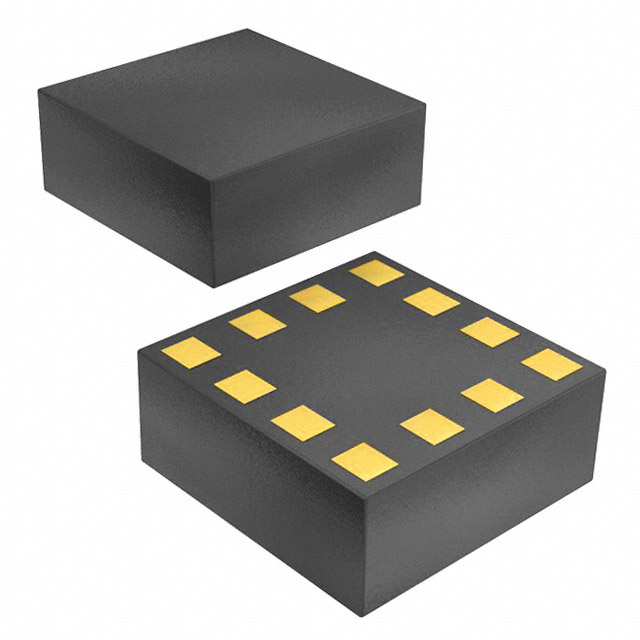

ACCELEROMETER 2-8G I2C/SPI 12LGA
| Part | Package Length | Package Name | Package Width | Mounting Type | Package / Case | Features | Acceleration Typical | Acceleration Range (Maximum) | Acceleration Peak | Acceleration Range (Minimum) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Bandwidth (Max) | Bandwidth (Min) | Type | Operating Temperature (Min) | Operating Temperature (Max) | Output Type | Axis | Sensitivity (LSB/g) | Sensitivity Tolerance (g) | Supplied Contents | Interface | Utilized IC / Part | Axis Count | Sensor Type | Contents | Sensing Range - Acceleration | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kionix Inc. | 2 mm | 12-LGA | 2 mm | Surface Mount | 12-VFLGA | Adjustable Bandwidth Selectable Scale | 4 g | 2 g | 8 g | -2 g | 3.6 V | 1.8 V | 800 Hz | 0.39 Hz | Digital | -40 °C | 85 °C | I2C SPI | X Y Z | 4096 LSB/g 16384 LSB/g | 2 g 8 g | ||||||||
 Kionix Inc. | 2 mm | 12-LGA | 2 mm | Surface Mount | 12-VFLGA | Adjustable Bandwidth Selectable Scale | 4 g | 2 g | 8 g | -2 g | 3.6 V | 1.71 V | 800 Hz | 0.39 Hz | Digital | -40 °C | 85 °C | I2C SPI | X Y Z | 4096 LSB/g 16384 LSB/g | 2 g 8 g | ||||||||

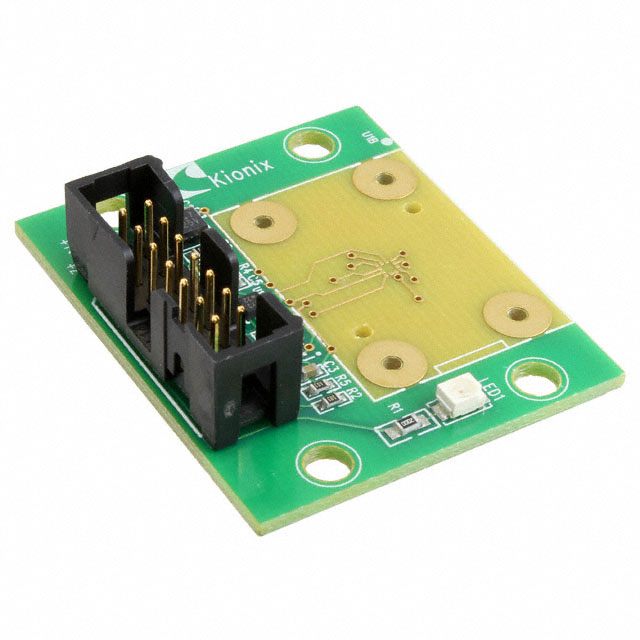

 Kionix Inc. | 3.6 V | 1.71 V | Board(s) | I2C Serial SPI | KX022-1020 | 3 Axis | 3 Axis Accelerometer | Board | ±2g 4g 8g | No |
