00560200 Series

Adapter 24V-S15/P7.N-S M'S

Catalog

Adapter 24V-S15/P7.N-S M'S

Part	Number of Positions (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Features	Fastening Type	Mounting Type	Housing Color	Housing Material	Convert To (Adapter End)	Convert From (Adapter End)	Connector Style	Shielding
LITTELFUSE 00560200	15	2	7	Cap (Cover)	Push-Pull	Free Hanging (In-Line)	Red	Plastic	Male Pins (2)	Female Sockets	Distributor Y-Shaped	Unshielded

Catalog

Adapter 24V-S15/P7.N-S M'S

Description

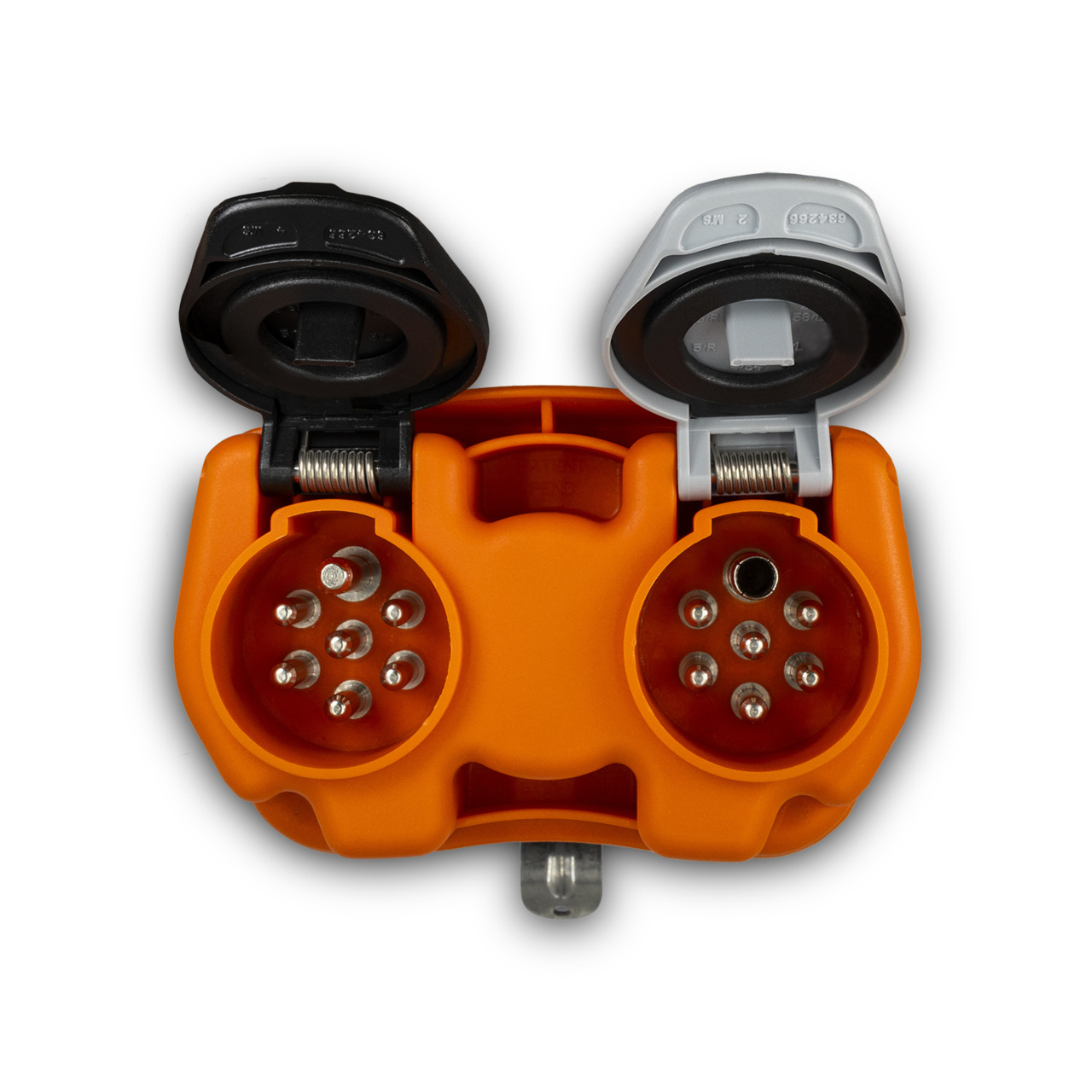

Various types of adaptors available to connect 7-pole Normal (ISO 1185) and Supplementary (ISO 3731) system to the newest 15-pole system (ISO 12098) and vice versa. Ultra compact style 15-pole plug to two sockets - 7-pole 24V Normal and Supplementary 00560200 is molded body
