GRPB081 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

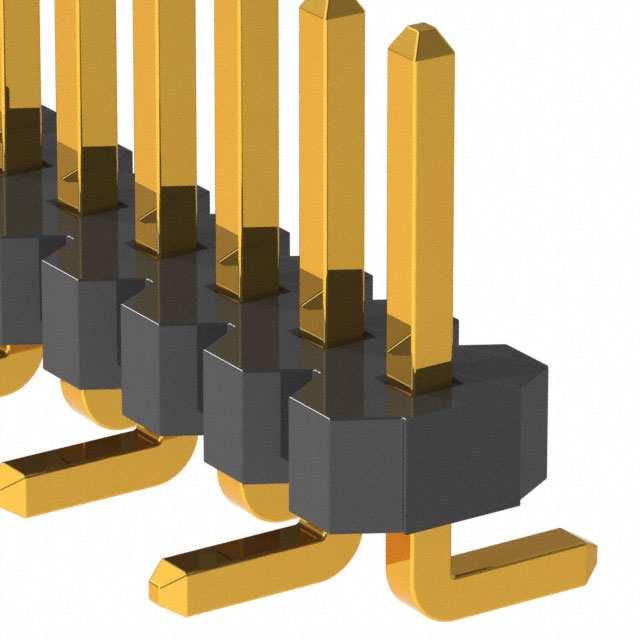

CONN HEADER SMD 8POS 1.27MM
| Part | Contact Finish Thickness - Post | Contact Type | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Connector Type | Number of Positions Loaded | Contact Shape | Number of Positions | Mounting Type | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Material | Contact Material | Insulation Height [z] | Insulation Height [z] | Style | Contact Finish Thickness - Mating | Shrouding | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Male Pin | 3 mm | 0.118 in | Gold | Header | All | Square | 8 | Surface Mount | UL94 V-0 | Solder | -40 C | 105 ░C | 1.27 mm | 0.05 in | 1 | Nylon 9T Polyamide (PA9T) | Brass | 1 mm | 0.039 in | Board to Board Cable | Flash | Unshrouded | Push-Pull | Gold |
