2258/3 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

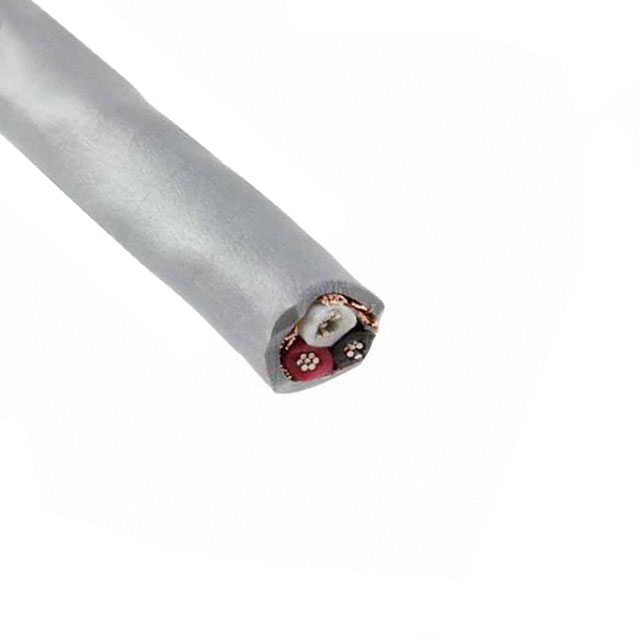

CABLE 3COND 18AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Usage | Shield Type | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Cable Type | Wire Gauge | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 95 % | Communication Control | Spiral | Poly-Vinyl Chloride (PVC) | Slate | 3 | 300 VDC | 0.02 " | 0.508 mm | 5.74 mm | 0.226 in | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 304.8 m | 1000 ft | Multi-Conductor | 18 AWG | Copper Tinned | ||
ALPHA WIRE | Copper Bare | 95 % | Communication Control | Spiral | Poly-Vinyl Chloride (PVC) | Slate | 3 | 300 VDC | 0.02 " | 0.508 mm | 5.74 mm | 0.226 in | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Multi-Conductor | 18 AWG | Copper Tinned | 100 ft | 30.5 m |
