2324245 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

2 TIN 2.5MM -55℃~+105℃ COPPER ALLOY STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Part	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Contact Material	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Style	Contact Type	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish - Post	Voltage Rating	Fastening Type	Number of Positions	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 1-2324245-6	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin	16	2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder

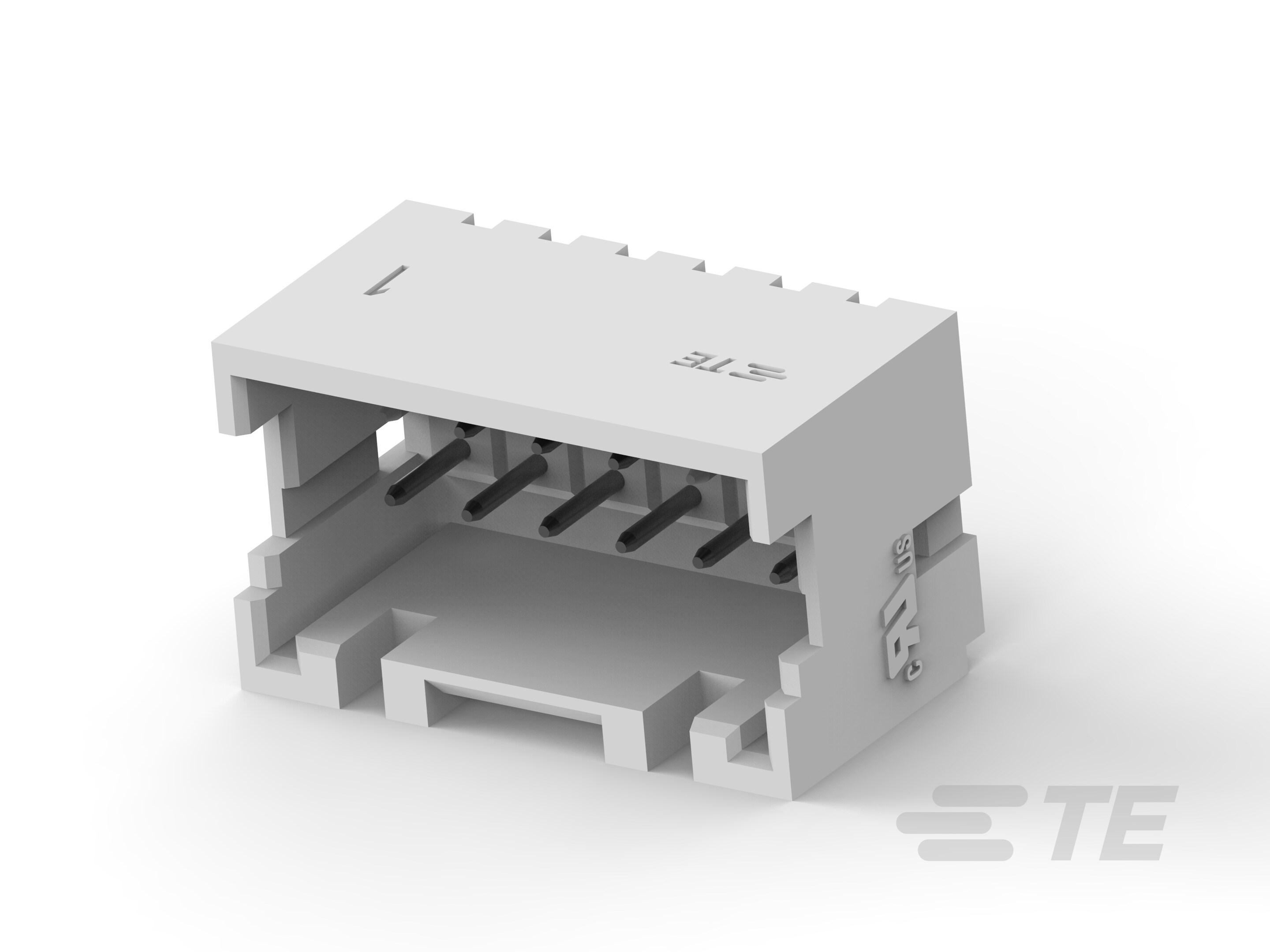

TE Connectivity Raychem Cable Protection 1-2324245-2	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	12	4.2 A

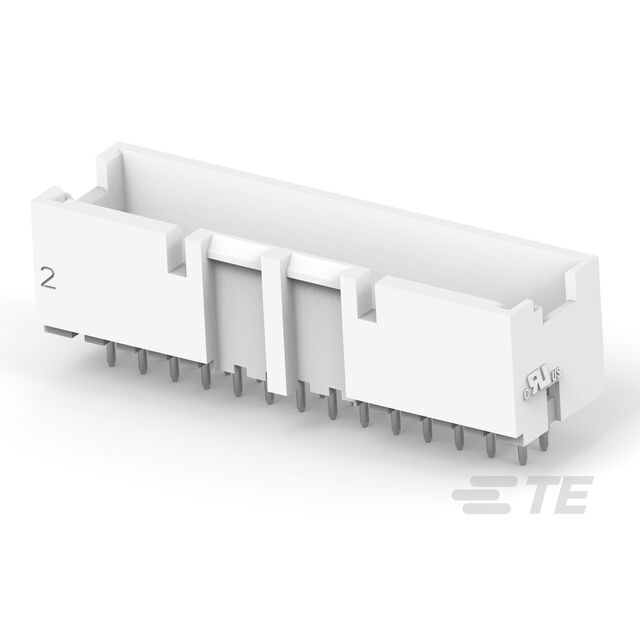

TE Connectivity Raychem Cable Protection 2-2324245-8	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	28	4.2 A
TE Connectivity Raychem Cable Protection 1-2324245-8	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	18	4.2 A

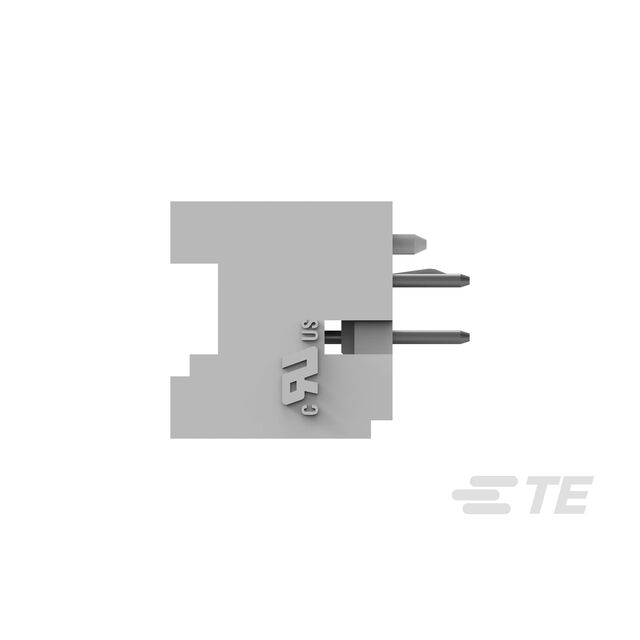

TE Connectivity Raychem Cable Protection 1-2324245-4	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	14	4.2 A
TE Connectivity Raychem Cable Protection 3-2324245-4	All	UL94 V-0			105 ░C	-55 °C	Through Hole	Solder	Brass	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural			0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	34

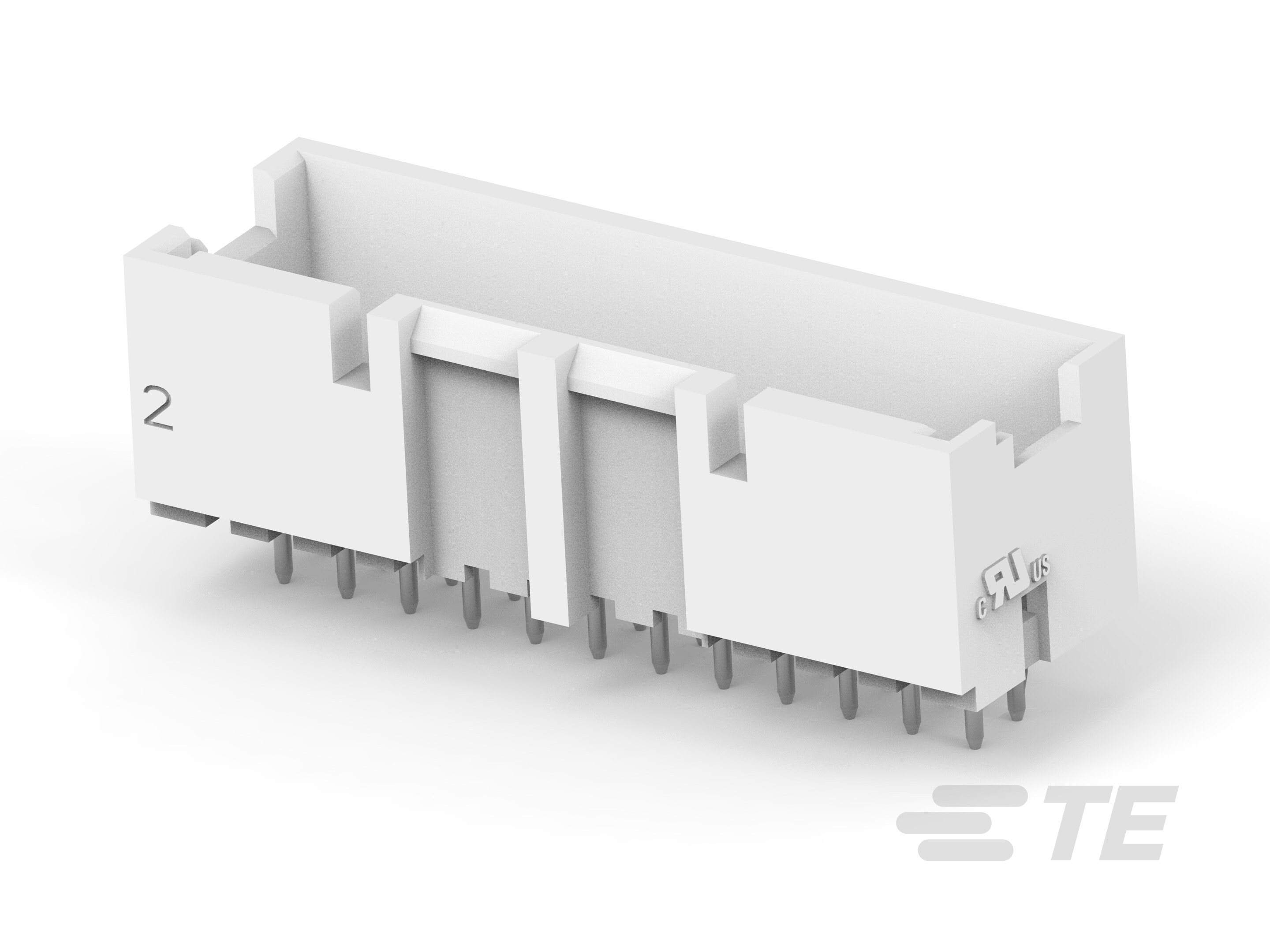

TE Connectivity Raychem Cable Protection 2-2324245-4	All	UL94 V-0	2.03 µm	80 µin	105 ░C	-55 °C	Through Hole	Kinked Pin Solder	Copper Alloy	Resin		2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	9.8 mm	0.386 in	2	Circular	Header	Natural	2.03 µm	80 µin	0.098 in	2.5 mm	Glow Wire Compliant	Tin	250 VAC	Latch Holder	24	4.2 A
