LP3961 Series

Catalog

IC REG LIN 2.5V 800MA SOT223-5

Part	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Number of Regulators	Protection Features	Current - Output	Current - Quiescent (Iq)	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Configuration	Control Features	Voltage Dropout (Max) [Max]
Texas Instruments LP3961EMPX-2.5	15 mA	7 V	TO-261-5 TO-261AB	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	SOT-223-5	2.5 V	Positive	Enable	0.35 V
Texas Instruments LP3961EMP-5.0	15 mA	7 V	TO-261-5 TO-261AB	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	SOT-223-5	5 V	Positive	Enable	0.35 V

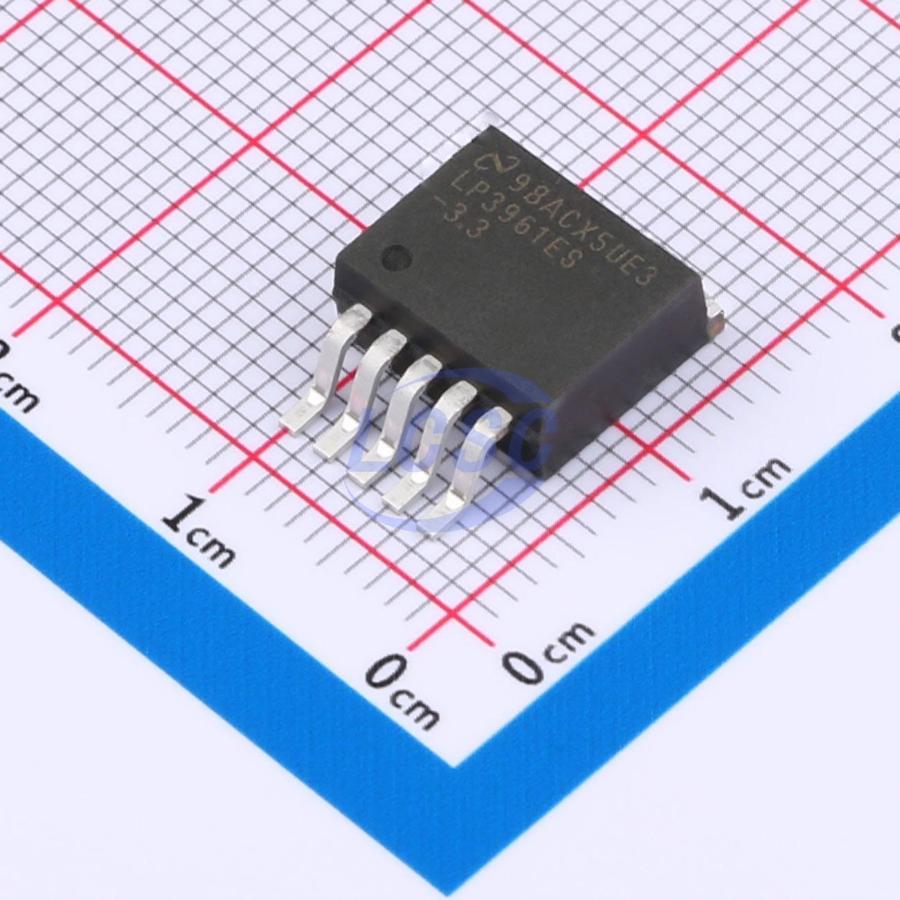

Texas Instruments LP3961ES-3.3/NOPB	15 mA	7 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	TO-263 (DDPAK-5)	3.3 V	Positive	Enable	0.35 V
Texas Instruments LP3961EMP-3.3/NOPB	15 mA	7 V	TO-261-5 TO-261AB	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	SOT-223-5	3.3 V	Positive	Enable	0.35 V
Texas Instruments LP3961EMPX-3.3	15 mA	7 V	TO-261-5 TO-261AB	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	SOT-223-5	3.3 V	Positive	Enable	0.35 V
Texas Instruments LP3961ES-5.0/NOPB	15 mA	7 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	TO-263 (DDPAK-5)	5 V	Positive	Enable	0.35 V
Texas Instruments LP3961EMPX-3.3/NOPB	15 mA	7 V	TO-261-5 TO-261AB	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	SOT-223-5	3.3 V	Positive	Enable	0.35 V
Texas Instruments LP3961ES-1.8/NOPB	15 mA	7 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	TO-263 (DDPAK-5)	1.8 V	Positive	Enable	0.35 V
Texas Instruments LP3961ES-2.5/NOPB	15 mA	7 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Surface Mount	125 °C	-40 °C	TO-263 (DDPAK-5)	2.5 V	Positive	Enable	0.35 V
Texas Instruments LP3961ET-2.5/NOPB	15 mA	7 V	TO-220-5 Formed Leads	1	Over Current Over Temperature Short Circuit	800 mA	9 mA	1.81 mOhm	Through Hole	125 °C	-40 °C	TO-220-5	2.5 V	Positive	Enable	0.35 V
