A42 Series
Manufacturer: Serpac
Beta
⌘K

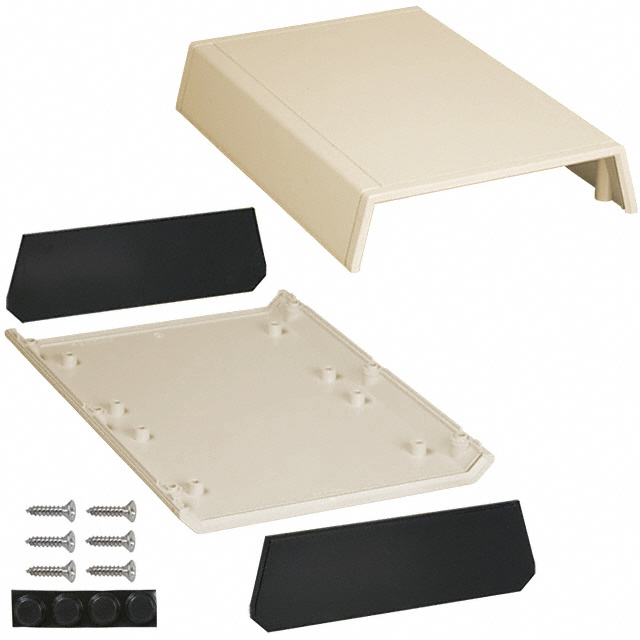

BOX ABS ALMOND 7.12"L X 5"W
| Part | Weight [custom] | Weight [custom] | Thickness | Thickness | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Design | Color | Material | Container Type | Height [z] | Height [z] | Material Flammability Rating | Ratings | Features | Area (L x W) | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Serpac | 0.48 lb | 217.72 g | 3.05 mm | 0.12 " | 5 in | 180.85 mm | 7.12 " | 127 mm | Split Sides and End Panel(s) | Almond | ABS Plastic | Box | 1.62 in | 41.15 mm | UL94 HB | IP40 | PCB Supports | 230 cm² | 35.6 in² |

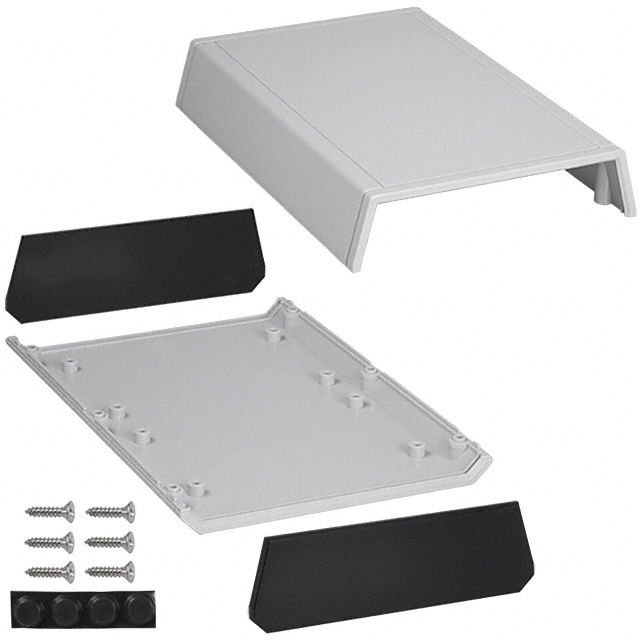

 Serpac | 0.48 lb | 217.72 g | 3.05 mm | 0.12 " | 5 in | 180.85 mm | 7.12 " | 127 mm | Split Sides and End Panel(s) | Gray | ABS Plastic | Box | 1.62 in | 41.15 mm | UL94 HB | IP40 | PCB Supports | 230 cm² | 35.6 in² |
