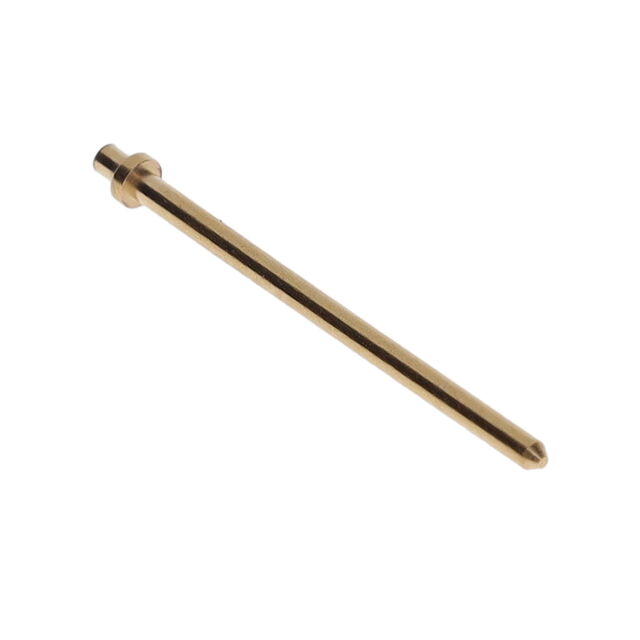

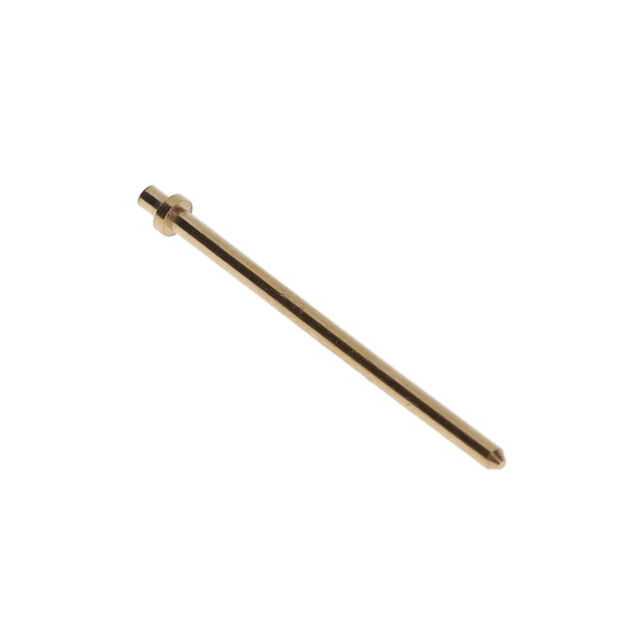

3105-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness | Board Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.75 in | 19.05 mm | Brass Alloy | 0.051 " | 1.3 mm | Tin | Through Hole | 200 Áin | 5.08 Ám | 0.821 in | 20.85 mm | Single End | 0.043 in | 1.09 mm | 1.78 mm | 0.07 in | Non-Insulated | Swage | PC Pin |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.75 in | 19.05 mm | Brass Alloy | 0.051 " | 1.3 mm | Gold | Through Hole | 20 µin | 0.51 µm | 0.821 in | 20.85 mm | Single End | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Non-Insulated | Swage | PC Pin |
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.75 in | 19.05 mm | Brass Alloy | 0.051 " | 1.3 mm | Gold | Through Hole | 10 Áin | 0.25 Ám | 0.821 in | 20.85 mm | Single End | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Non-Insulated | Swage | PC Pin |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.75 in | 19.05 mm | Brass Alloy | 0.051 " | 1.3 mm | Gold | Through Hole | 50 µin | 1.27 µm | 0.821 in | 20.85 mm | Single End | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | Non-Insulated | Swage | PC Pin |
