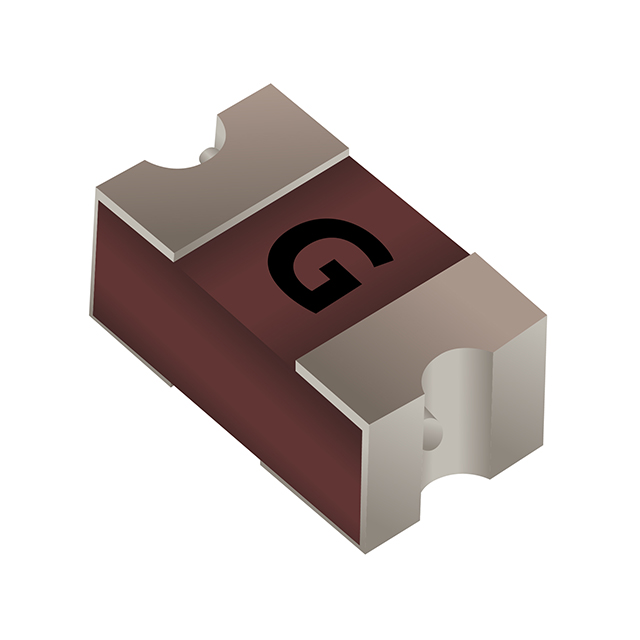

SF-1210 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FUSE BRDMT 2.5A 125VAC/65DC 1210
| Part | DC Cold Resistance | Melting I˛t | Approval Agency | Fuse Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Package / Case | Melting I²t | Voltage Rating - AC | Mounting Type | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Response Time | Voltage Rating - DC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 33 mOhms | 1.2 | UL | Board Mount (Cartridge Style Excluded) | 3.2 mm | 2.5 mm | 0.098 in | 0.126 " | 0.063 in | 1.6 mm | 1210 (3225 Metric) Concave | 1.2 I²t | 125 V | Surface Mount | 100 A | -55 C | 125 °C | Slow Blow | 65 VDC | 2.5 A |
Bourns Inc. | 0.05 Ohms | 0.5 | UL | Board Mount (Cartridge Style Excluded) | 3.2 mm | 2.5 mm | 0.098 in | 0.126 " | 0.063 in | 1.6 mm | 1210 (3225 Metric) Concave | 0.5 I²t | 125 V | Surface Mount | 100 A | -55 C | 125 °C | Slow Blow | 65 VDC | 1.5 A |
Bourns Inc. | 28 mOhms | UL | Board Mount (Cartridge Style Excluded) | 3.2 mm | 2.5 mm | 0.098 in | 0.126 " | 0.063 in | 1.6 mm | 1210 (3225 Metric) Concave | 1.5 I²t | 125 V | Surface Mount | 100 A | -55 C | 125 °C | Slow Blow | 65 VDC | 3 A |
