R16432 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

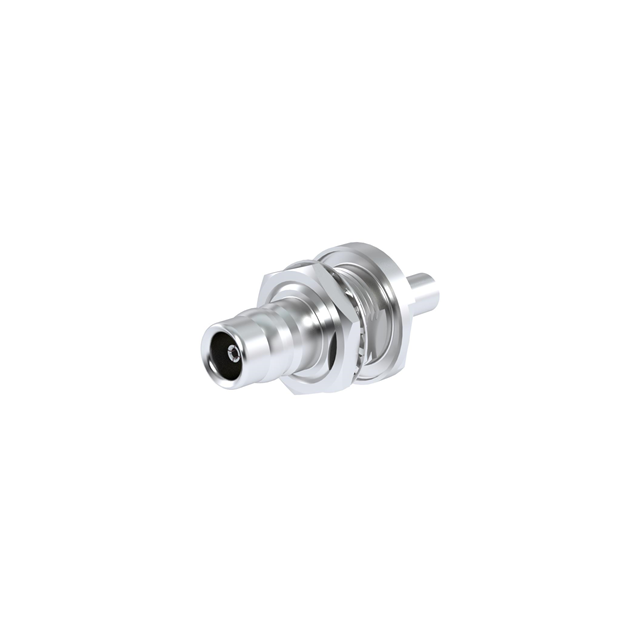

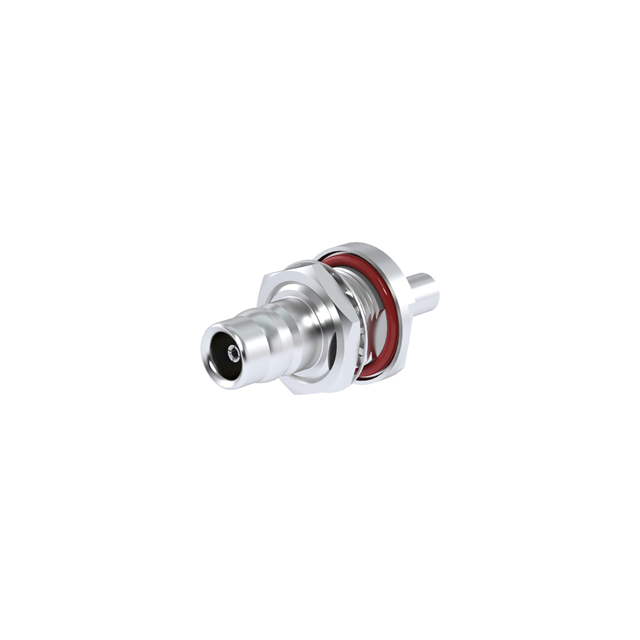

QN / STRAIGHT BULKHEAD JACK FULL
| Part | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Cable Group | Fastening Type | Mounting Feature | Connector Type | Center Contact Material | Contact Termination | Housing Color | Ingress Protection | Connector Style | Impedance | Frequency - Max [Max] | Shield Termination | Mounting Type | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | White Bronze | -55 C | 125 °C | 850 V | Polytetrafluoroethylene (PTFE) | 223 400 RG-142 | Snap-On | Bulkhead - Front Side Nut | Female Socket Jack | Beryllium Copper | Crimp | Silver | IP68 - Dust Tight Waterproof | QN | 50 Ohms | 6000 MHz | Crimp | Panel Mount | 1 | |
Radiall USA, Inc. | Brass | White Bronze | -55 C | 125 °C | 850 V | Polytetrafluoroethylene (PTFE) | RG-58 | Snap-On | Bulkhead - Front Side Nut | Female Socket Jack | Beryllium Copper | Crimp | Silver | IP68 - Dust Tight Waterproof | QN | 50 Ohms | 6000 MHz | Crimp | Panel Mount | 1 | 141 |
 Radiall USA, Inc. | Brass | White Bronze | -55 C | 125 °C | 850 V | Polytetrafluoroethylene (PTFE) | 223 400 RG-142 | Snap-On | Bulkhead - Front Side Nut | Female Socket Jack | Beryllium Copper | Crimp | Silver | IP68 - Dust Tight Waterproof | QN | 50 Ohms | 6000 MHz | Crimp | Panel Mount | 1 | |
 Radiall USA, Inc. | Brass | White Bronze | -55 C | 125 °C | 850 V | Polytetrafluoroethylene (PTFE) | RG-58 | Snap-On | Bulkhead - Front Side Nut | Female Socket Jack | Beryllium Copper | Crimp | Silver | IP68 - Dust Tight Waterproof | QN | 50 Ohms | 6000 MHz | Crimp | Panel Mount | 1 | 141 |
