1057151 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

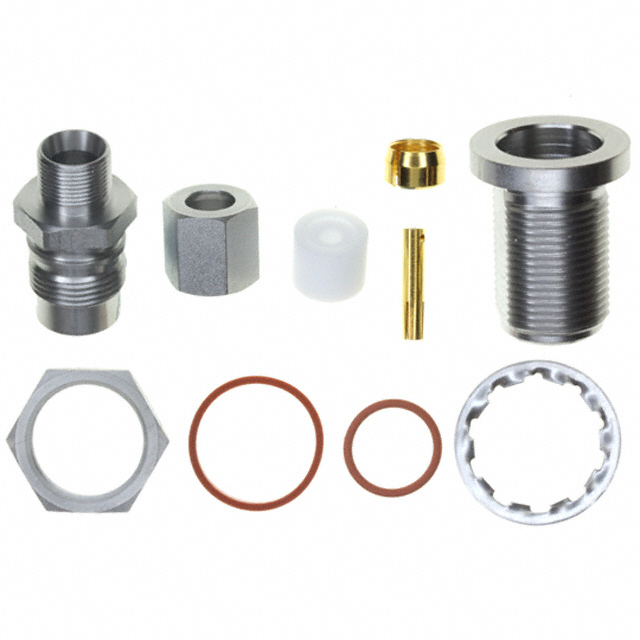

CONN N JACK STR 50 OHM SOLDER
| Part | Center Contact Plating | Voltage Rating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Mating Cycles | Shield Termination | Frequency - Max [Max] | Impedance | Cable Group | Connector Style | Center Contact Material | Fastening Type | Contact Termination | Mounting Feature | Mounting Type | Connector Type | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 1000 VDC | 1 Bushing 1 Clamp 1 Connector 1 Contact 1 Insulator 1 Lockwasher 2 Gaskets 2 Nuts | -65 ░C | 165 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Clamp | 11 GHz | 50 Ohms | RG-401 (.250" Semi Rigid) | N Type | Beryllium Copper | Threaded | Solder | Bulkhead - Front Side Nut | Panel Mount | Female Socket Jack | Silver | 1 |
