2564200 Series

Catalog

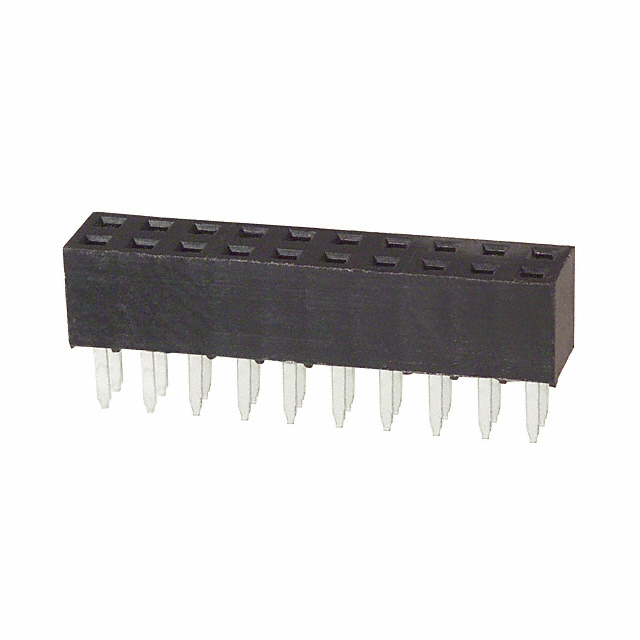

25642001RP2 ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Mounting Type	Contact Type	Termination	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Number of Rows [custom]
NorComp Inc. 25642001RP2	2.54 µm	100 µin	Square	Phosphor Bronze	Through Hole	Female Socket	Solder	Receptacle	Push-Pull	-40 C	105 ░C	2 mm	0.079 in	0.079 "	2 mm	0.118 in	3 mm	UL94 V-0	Gold	Tin	Black	0.177 in	4.5 mm	All	20	Flash	2
