QS40 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 960W

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Applications	Efficiency	Voltage - Isolation	Standard Number	Voltage - Output 1	Power (Watts)	Input Type	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Voltage - Output 1 [custom]

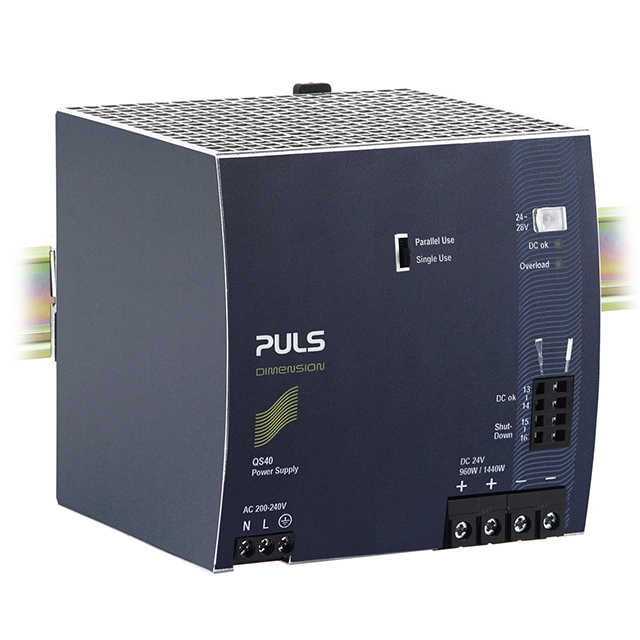

PULS, LP QS40.244	40 A	70 °C	-10 °C	124 mm	4.88 in	124 mm	5 "	4.88 in	127 mm	1	ITE (Commercial)	94.6 %	500 V	508 60950-1 61010-2-201 F47	24 V	960 W	AC	Adjustable Output Load Sharing PFC	170 VAC	264 VAC	ABS DNV GL EAC IEC SEMI UL

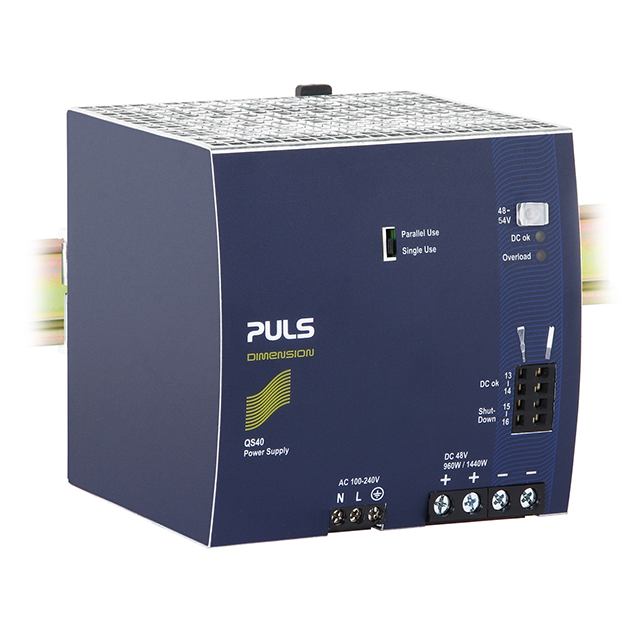

PULS, LP QS40.481	20 A	70 °C	-10 °C	124 mm	4.88 in	124 mm	5 "	4.88 in	127 mm	1	ITE (Commercial)	95 %	500 V	508 60950-1 61010-2-201 Class I Div 2	48 V	960 W	AC	Adjustable Output Load Sharing PFC	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL

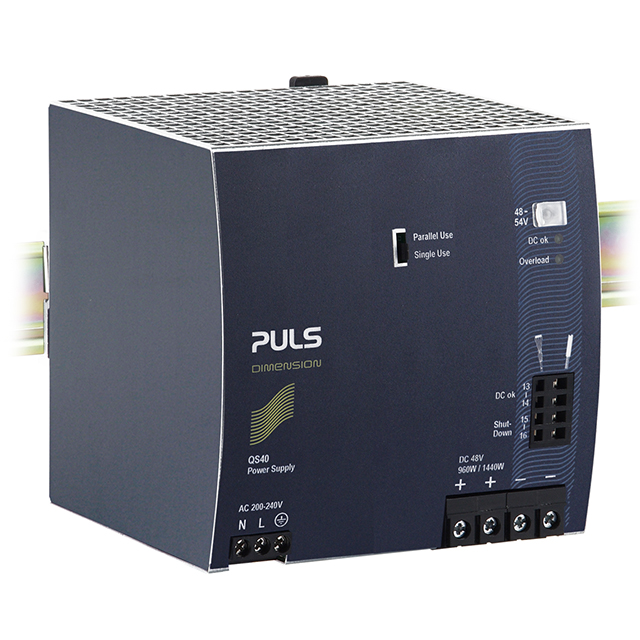

PULS, LP QS40.484	20 A	70 °C	-10 °C	124 mm	4.88 in	124 mm	5 "	4.88 in	127 mm	1	ITE (Commercial)	95 %	500 V	508 60950-1 61010-2-201	48 V	960 W	AC	Adjustable Output Load Sharing PFC	170 VAC	264 VAC	ABS DNV GL EAC IEC UL

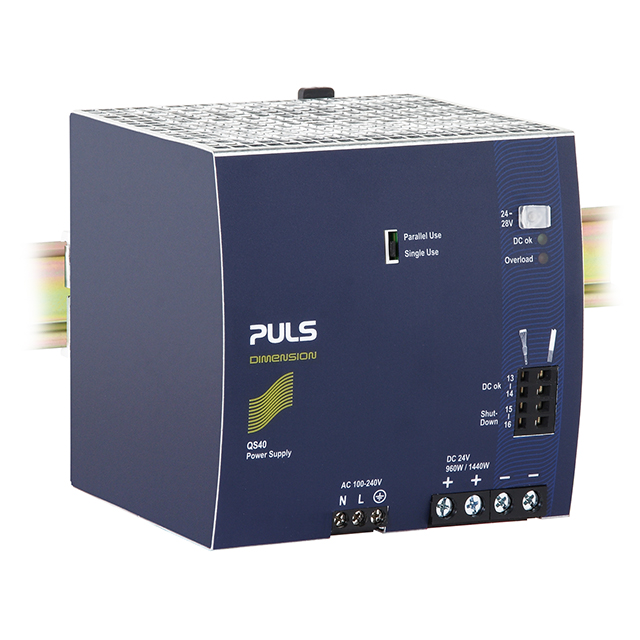

PULS, LP QS40.241	40 A	70 °C	-10 °C	124 mm	4.88 in	124 mm	5 "	4.88 in	127 mm	1	Hazardous Locations ITE (Commercial)	94.6 %	500 V	508 60950-1 61010-2-201 Class I Div 2	24 V	960 W	AC	Adjustable Output Load Sharing PFC	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL

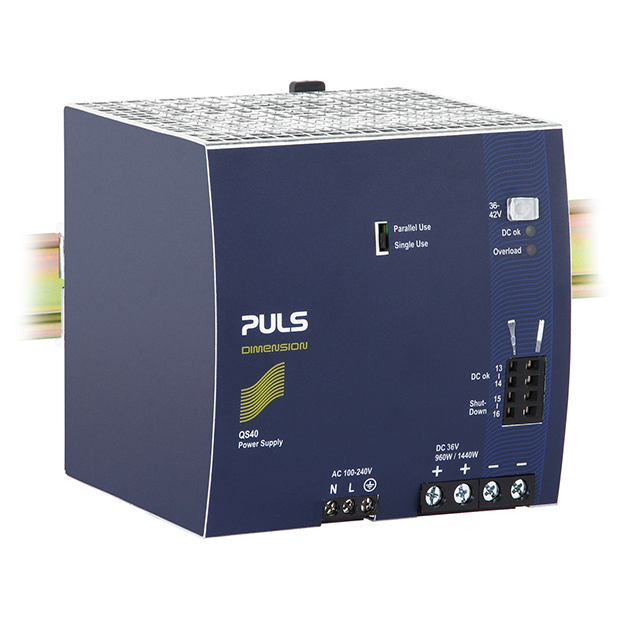

PULS, LP QS40.361	26.7 A	70 °C	-10 °C	124 mm	4.88 in	124 mm	5 "	4.88 in	127 mm	1	ITE (Commercial)	94.6 %	500 V	508 60950-1 61010-2-201 Class I Div 2		960 W	AC	Adjustable Output Load Sharing PFC	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL	36 V
