Yagi Series

Antennas YAGI,FWB,3,896-970MH z, 15,6 dBi,NM

Manufacturer: TE Connectivity AMP Connectors

Catalog

Antennas YAGI,FWB,3,896-970MH z, 15,6 dBi,NM

Catalog

Antennas YAGI,FWB,3,896-970MH z, 15,6 dBi,NM

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	VSWR	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Gain	Antenna Type	Number of Bands	Termination	Frequency (Center/Band)	RF Family/Standard	Features	Applications	Power - Max [Max]	Height (Max) [z]	Height (Max) [z]

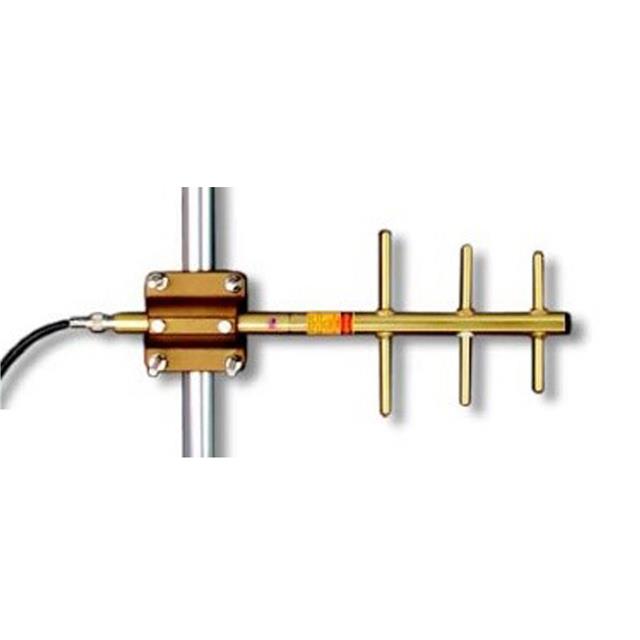

TE Connectivity AMP Connectors Y8963	425 mm	16.732 in	1.5	1 GHz	UHF	300 MHz	896 MHz	970 MHz	Bracket Mount	6 dBi	Yagi 3-Element	1	N Type Female	933 MHz
TE Connectivity AMP Connectors Y45012	182.88 cm	72 in	1.5	1 GHz	UHF	300 MHz	450 MHz	470 MHz	Bracket Mount	11 dB	Yagi 12-Element	1	N Type Female	460 MHz
TE Connectivity AMP Connectors YE490012			2		SHF (f > 4GHz)		4.9 GHz	5.85 GHz	Bracket Mount	10 dBi	Yagi	1	N Type Female	5400 MHz	WiFi	Cable - 457mm	Wi-Fi	300 W	9.25 in	234.95 mm
TE Connectivity AMP Connectors Y8963	425 mm	16.732 in	1.5	1 GHz	UHF	300 MHz	896 MHz	970 MHz	Bracket Mount	6 dBi	Yagi 3-Element	1	N Type Female	933 MHz
TE Connectivity AMP Connectors Y45012	182.88 cm	72 in	1.5	1 GHz	UHF	300 MHz	450 MHz	470 MHz	Bracket Mount	11 dB	Yagi 12-Element	1	N Type Female	460 MHz
