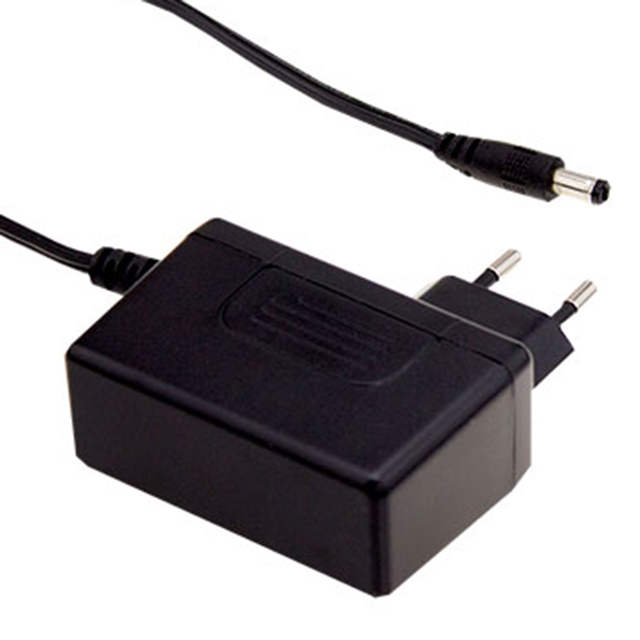

SGA25E09 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 9V 25W
| Part | Voltage - Output | Input Type | Efficiency | Region Utilized | Polarization | Current - Output (Max) [Max] | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Form | Cord Length | Cord Length | Input Connector | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [x] | Output Connector [diameter] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 9 V | Fixed Blade | Level VI | Europe | Positive Center | 2.77 A | 75 mW | -20 ░C | 60 °C | 25 W | ITE (Commercial) | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | CB CE GS | Wall Mount | 1 m | 39.4 in | CEE 7/16 | 264 VAC | 90 VAC | 11 mm | 2.1 mm 5.5 mm | Barrel Plug |
