SDI160 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 12V 150W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Output Connector	Operating Temperature [Max]	No Load Power Consumption	Input Connector	Power (Watts)	Applications	Approval Agency	Voltage - Output	Standard Number	Cord Length	Cord Length	Efficiency	Form	Efficiency

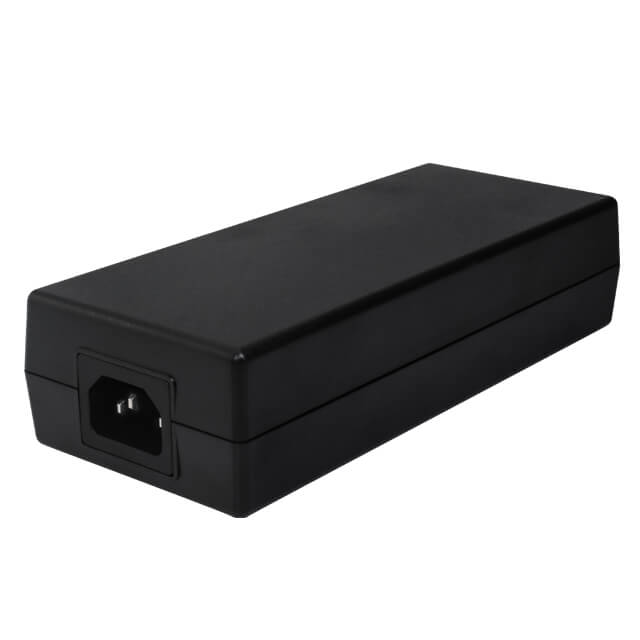

CUI Inc. SDI160-12-U-P51	175.2 mm	2.91 in	1.65 "	74 mm	42 mm	6.9 "	12.5 A	Cord (Sold Separately)	100 VAC	240 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	150 W	ITE (Commercial)	CE cUL cULus FCC UL	12 V	62368-1	1.2 m	47.2 in	CoC Tier 2 Level VI	Desktop (Class I)
CUI Inc. SDI160G-48-U-P51	161 mm	2.13 in	1.31 "	54.2 mm	33.2 mm	6.34 in	3.3 A	Cord (Sold Separately)	90 VAC	264 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	158 W	ITE (Commercial)	EN FCC PSE UL	48 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class I)	90 %
CUI Inc. SDI160G-24-U-P51	161 mm	2.13 in	1.31 "	54.2 mm	33.2 mm	6.34 in	6.6 A	Cord (Sold Separately)	90 VAC	264 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	158 W	ITE (Commercial)	EN FCC PSE UL	24 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class I)	90 %
CUI Inc. SDI160G-48-UD2-P51	150 mm	2.13 in	1.3 in	54 mm	33 mm	5.91 in	3.3 A	Cord	90 VAC	264 VAC	Europe	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C8	158 W	ITE (Commercial)	EN FCC PSE UL	48 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class II)	90 %
CUI Inc. SDI160-48-U-P51	175.2 mm	2.91 in	1.65 "	74 mm	42 mm	6.9 "	3.3 A	Cord (Sold Separately)	100 VAC	240 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	158 W	ITE (Commercial)	CE cUL cULus FCC UL	48 V	62368-1	1.5 m	59 in	CoC Tier 2 Level VI	Desktop (Class I)

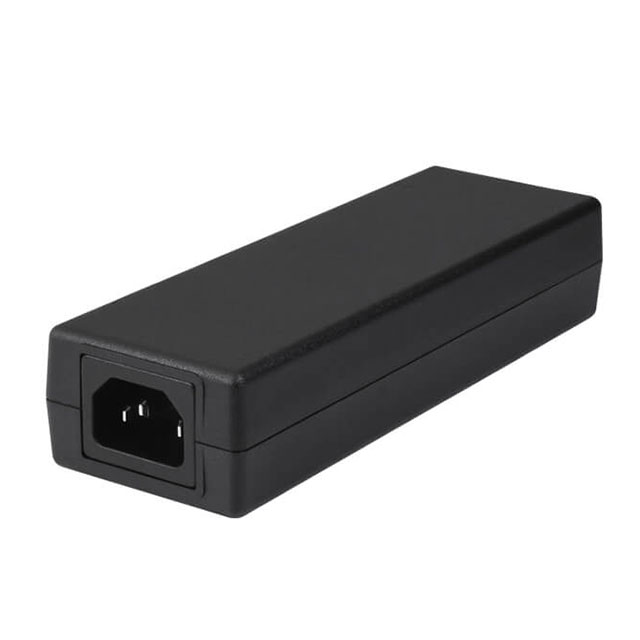

CUI Inc. SDI160G-12-U2-P51	161 mm	2.13 in	1.31 "	54.2 mm	33.2 mm	6.34 in	12.5 A	Cord	90 VAC	264 VAC	Europe	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	150 W	ITE (Commercial)	EN FCC PSE UL	12 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.2 m	47.2 in		Desktop (Class I)	90 %
CUI Inc. SDI160G-19-U-P51	161 mm	2.13 in	1.31 "	54.2 mm	33.2 mm	6.34 in	8.4 A	Cord (Sold Separately)	90 VAC	264 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C14	160 W	ITE (Commercial)	EN FCC PSE UL	19 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class I)	90 %

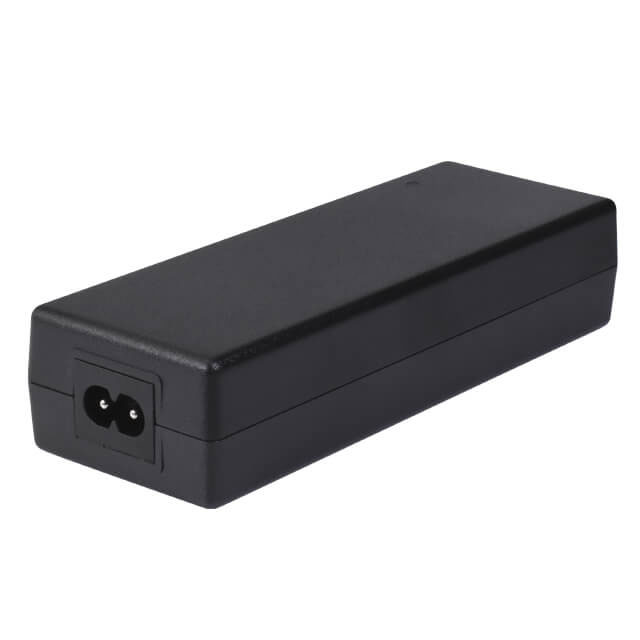

CUI Inc. SDI160G-56-UDC-P51	150 mm	2.13 in	1.3 in	54 mm	33 mm	5.91 in	2.86 A	Cord	90 VAC	264 VAC	North America	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C8	160 W	ITE (Commercial)	EN FCC PSE UL	56 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class II)	90 %
CUI Inc. SDI160G-12-UD-P51	150 mm	2.13 in	1.3 in	54 mm	33 mm	5.91 in	12.5 A	Cord (Sold Separately)	90 VAC	264 VAC	International	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C8	150 W	ITE (Commercial)	EN FCC PSE UL	12 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.2 m	47.2 in		Desktop (Class II)	90 %
CUI Inc. SDI160G-24-UDC-P51	150 mm	2.13 in	1.3 in	54 mm	33 mm	5.91 in	6.6 A	Cord	90 VAC	264 VAC	North America	Power DIN 4 Pin	40 °C	150 mW	IEC 320-C8	158 W	ITE (Commercial)	EN FCC PSE UL	24 V	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1.5 m	59 in		Desktop (Class II)	90 %
