LM3434 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC LED DRIVER CTRLR PWM 24WQFN
| Part | Voltage - Supply (Max) [Max] | Number of Outputs | Voltage - Supply (Min) [Min] | Frequency | Mounting Type | Dimming | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Type | Topology | Supplier Device Package | Internal Switch(s) | Utilized IC / Part | Features | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output / Channel [custom] | Outputs and Type | Outputs and Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.8 V | 1 | 3 V | 1 MHz | Surface Mount | PWM | 24-WFQFN Exposed Pad | -40 °C | 125 ¯C | DC DC Controller | Step-Down (Buck) | 24-WQFN (4x4) | |||||||||

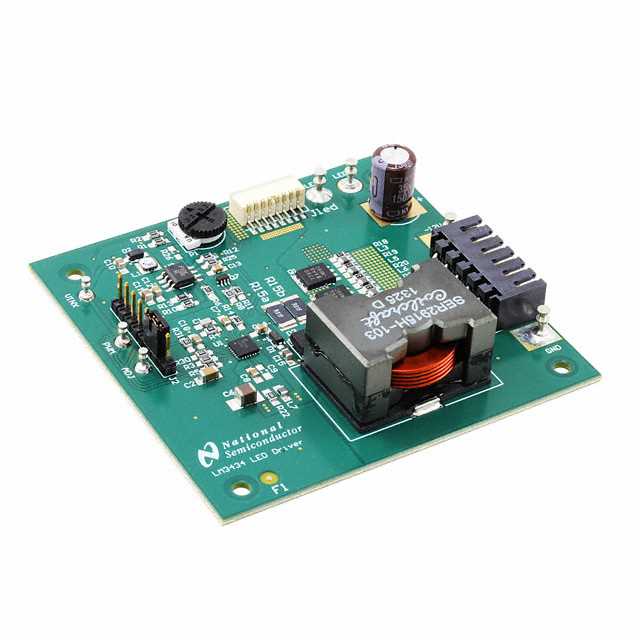

 Texas Instruments | LM3434 | Dimmable | -9 V | -30 V | 20 A | Non-Isolated | 1 | Board(s) | |||||||||||||
Texas Instruments | 5.8 V | 1 | 3 V | 1 MHz | Surface Mount | PWM | 24-WFQFN Exposed Pad | -40 °C | 125 ¯C | DC DC Controller | Step-Down (Buck) | 24-WQFN (4x4) |
