GPB527A Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH PUSH DPST-NO 10A 125V
| Part | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Circuit | Current Rating (Amps) | Switch Function | Color - Actuator/Cap | Actuator Type | Mounting Type | Panel Cutout Dimensions [diameter] | Type | Ingress Protection | Actuator Marking | Termination Style | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

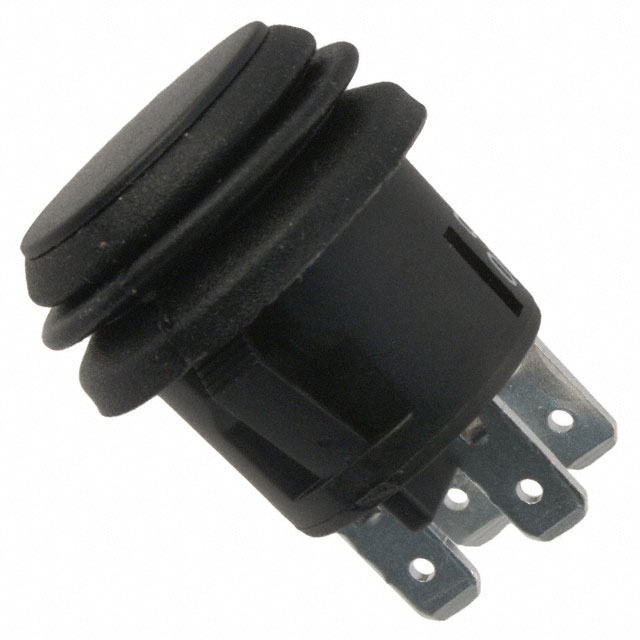

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | Black | Button Round | Panel Mount Snap-In | 20.2 mm | Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect | ||

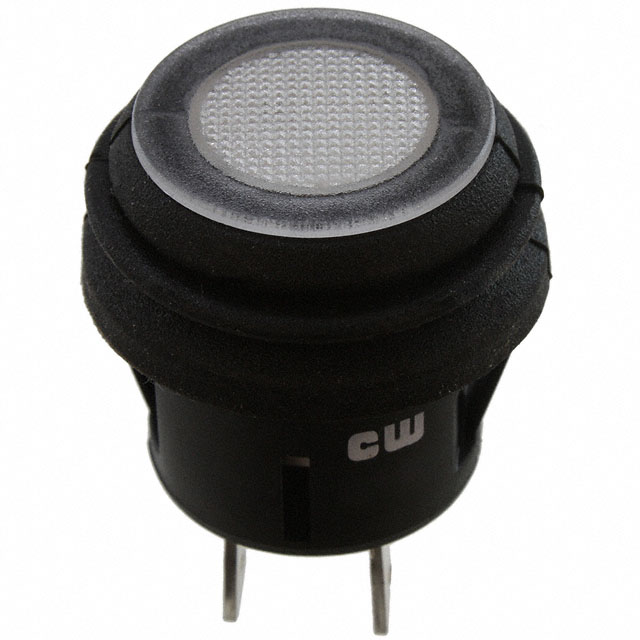

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | White | Button Round | Panel Mount Snap-In | 20.2 mm | Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect | ||

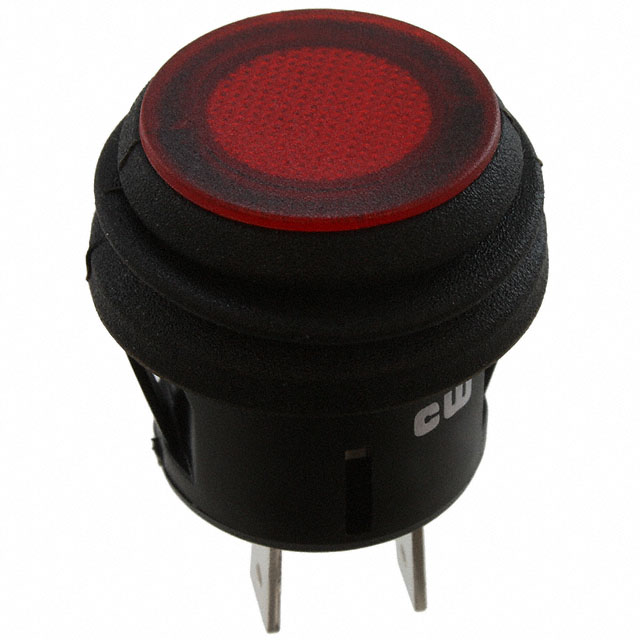

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | Red | Button Round | Panel Mount Snap-In | 20.2 mm | Illuminated Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect | LED Red | 12 VDC |

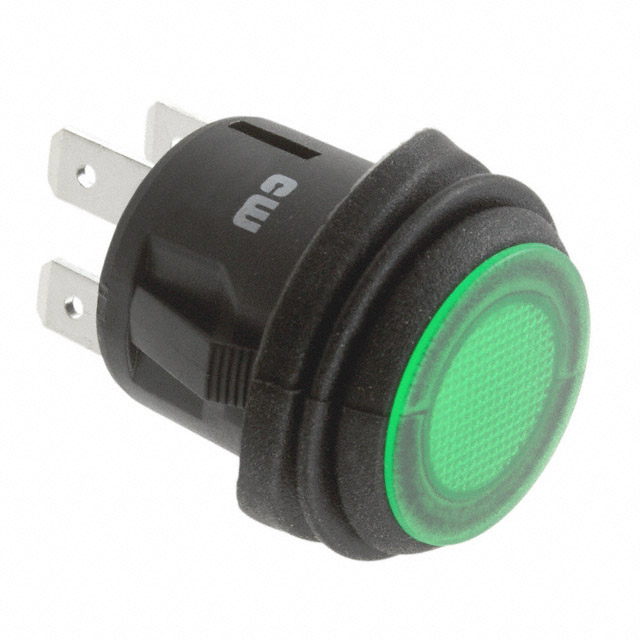

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | Green | Button Round | Panel Mount Snap-In | 20.2 mm | Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect | ||

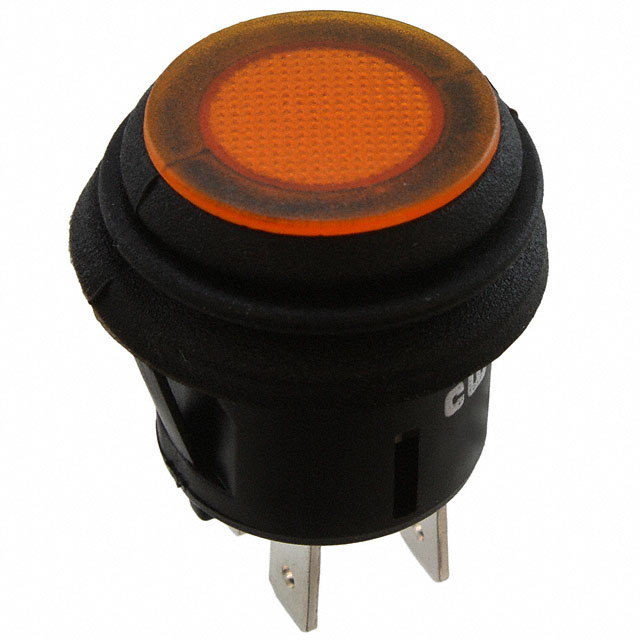

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | Amber | Button Round | Panel Mount Snap-In | 20.2 mm | Illuminated Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect | Amber LED | 12 VDC |

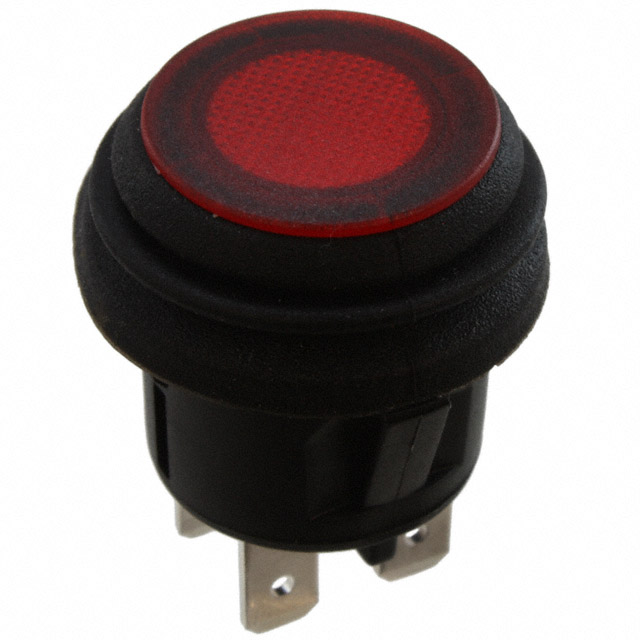

 CW Industries | 28 V | 85 °C | -25 °C | 125 V | DPST-NO | 10 A | Off-Mom | Red | Button Round | Panel Mount Snap-In | 20.2 mm | Standard | IP65 - Dust Tight Water Resistant | No Marking | Quick Connect |
