531803 Series

Catalog

CONN HEADER BRD EDGE 128P 1.27MM

Part	Number of Positions Loaded	Number of Positions	Style	Contact Type	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Rows	Mounting Type	Features	Connector Type	Fastening Type	Insulation Color
TE Connectivity Aerospace, Defense and Marine 2-531803-2	All	128	Board to Board Cable	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	0.15 in	3.81 mm	Tin-Lead	0.14 in	3.56 mm	Square	2	Board Edge Straddle Mount	Card Extender Mating Guide	Header	Push-Pull	Gray
TE Connectivity Aerospace, Defense and Marine 1-531803-7	All	70	Board to Board Cable	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	0.15 in	3.81 mm	Tin-Lead	0.14 in	3.56 mm	Square	2	Board Edge Straddle Mount	Card Extender Mating Guide	Header	Push-Pull	Gray
TE Connectivity Aerospace, Defense and Marine 2-531803-1	All	110 positions	Board to Board Cable	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	0.15 in	3.81 mm	Tin-Lead	0.14 in	3.56 mm	Square	2	Board Edge Straddle Mount	Card Extender Mating Guide	Header	Push-Pull	Gray

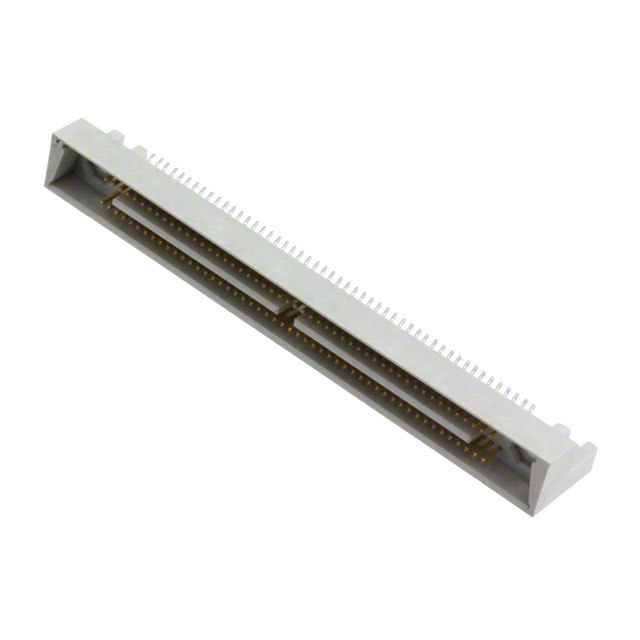

TE Connectivity Aerospace, Defense and Marine 2-531803-0	All	100	Board to Board Cable	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	0.15 in	3.81 mm	Tin-Lead	0.14 in	3.56 mm	Square	2	Board Edge Straddle Mount	Card Extender Mating Guide	Header	Push-Pull	Gray
