745-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 12POS 0.100

Part	Material - Insulation	Termination Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Color	Read Out	Contact Material	Number of Positions/Bay/Row	Pitch	Pitch	Termination	Number of Rows	Termination Rows [custom]	Number of Rows [custom]

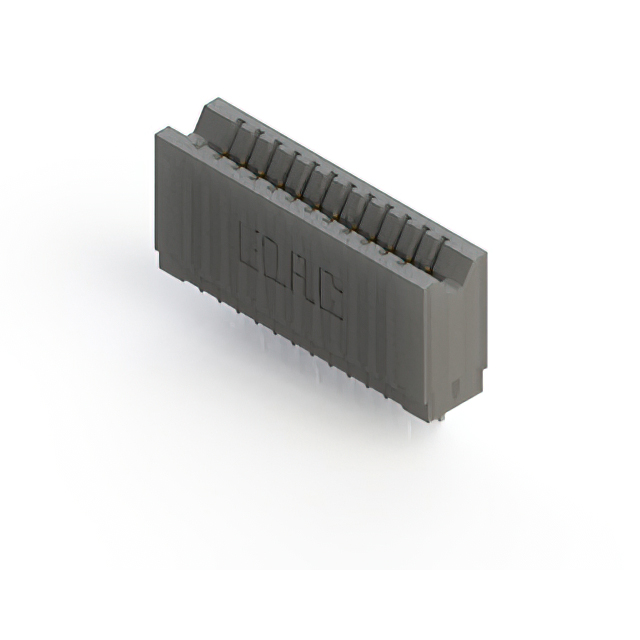

EDAC Inc. 745-012-545-106	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit	1
EDAC Inc. 745-012-541-101	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit Wire Wrap	1

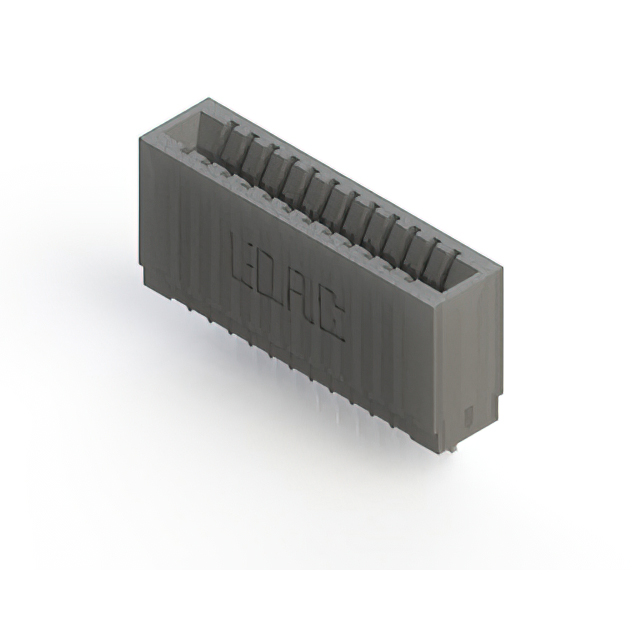

EDAC Inc. 745-012-522-101	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit	1

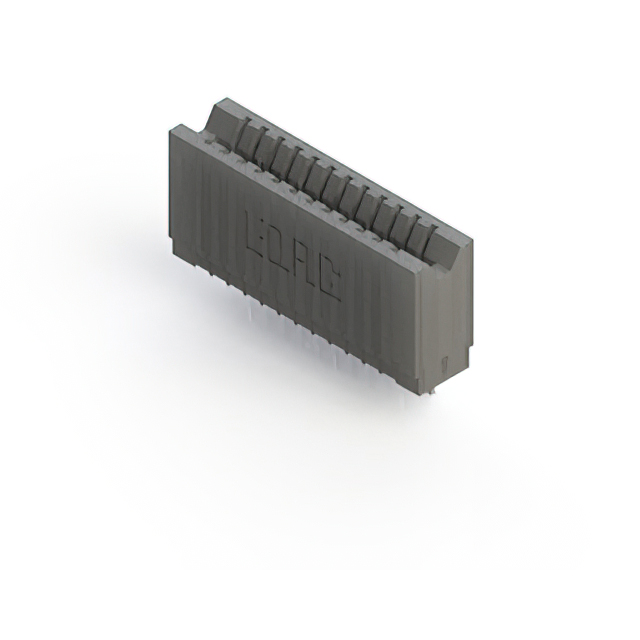

EDAC Inc. 745-012-541-106	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit Wire Wrap	1

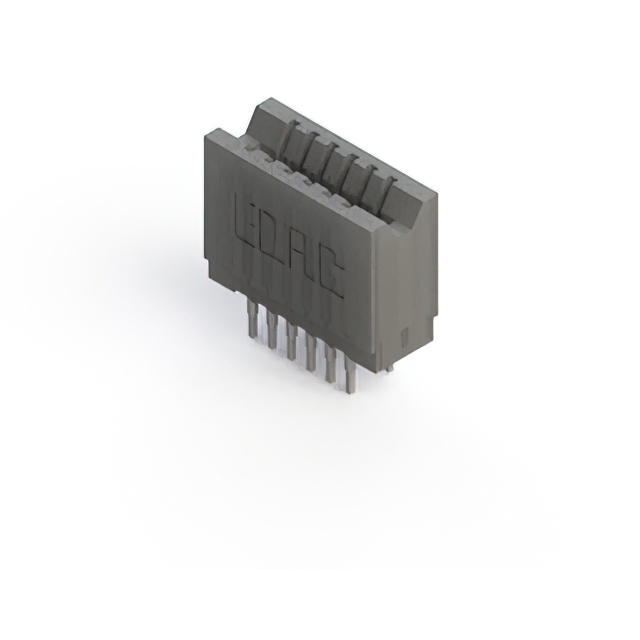

EDAC Inc. 745-012-541-206	Polyester Thermoplastic		Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Dual	Copper Alloy	6	0.1 "	2.54 mm	Press-Fit Wire Wrap		2	2
EDAC Inc. 745-012-560-206	Polyester Thermoplastic		Through Hole	-40 C	105 ░C	Cantilever Make Before Break	Female	30 Áin	0.76 Ám	12	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Dual	Copper Alloy	6	0.1 "	2.54 mm	Press-Fit		2	2
EDAC Inc. 745-012-540-201	Polyester Thermoplastic		Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Dual	Copper Alloy	6	0.1 "	2.54 mm	Press-Fit Wire Wrap		2	2
EDAC Inc. 745-012-540-106	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit Wire Wrap	1

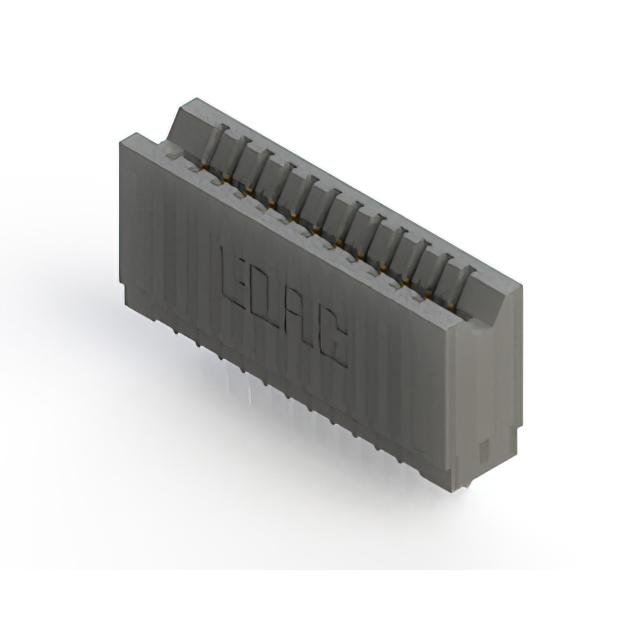

EDAC Inc. 745-012-525-106	Polyester Thermoplastic	1	Through Hole	-40 C	105 ░C	Cantilever	Female	30 Áin	0.76 Ám	12	Non Specified - Single Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	Copper Alloy	12	0.1 "	2.54 mm	Press-Fit	1

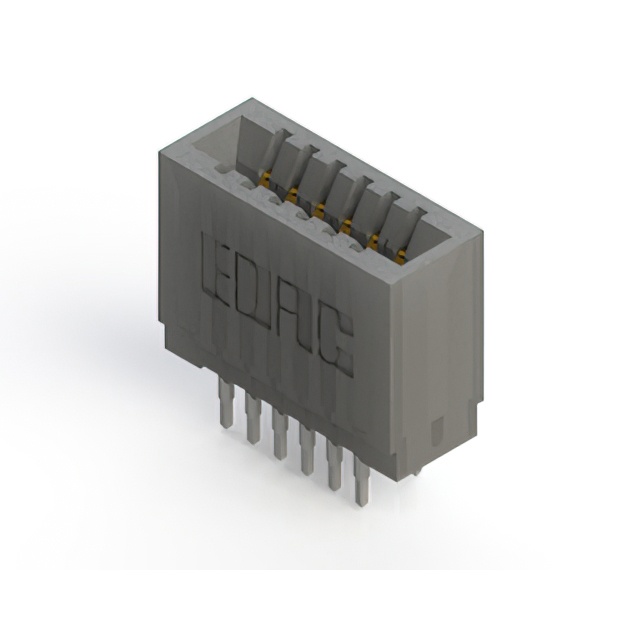

EDAC Inc. 745-012-560-201	Polyester Thermoplastic		Through Hole	-40 C	105 ░C	Cantilever Make Before Break	Female	30 Áin	0.76 Ám	12	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Dual	Copper Alloy	6	0.1 "	2.54 mm	Press-Fit		2	2
