CAT93C76B Series

EEPROM Serial 8-Kb Microwire

Catalog

EEPROM Serial 8-Kb Microwire

Part	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Memory Type	Memory Organization [custom]	Technology	Memory Size	Memory Format	Package / Case [custom]	Package / Case [custom]	Memory Organization	Access Time
ON Semiconductor CAT93C76VGI	3 MHz	85 °C	-40 °C	Microwire	Surface Mount	1.8 V	5.5 V	8-SOIC	3.9 mm	0.154 in	8-SOIC	Non-Volatile	1K x 8 512 x 16	EEPROM	8 Kbit	EEPROM
ON Semiconductor CAT93C76YI-GT3	3 MHz	85 °C	-40 °C	Microwire	Surface Mount	1.8 V	5.5 V	8-TSSOP			8-TSSOP	Non-Volatile	1K x 8 512 x 16	EEPROM	8 Kbit	EEPROM	0.173 "	4.4 mm

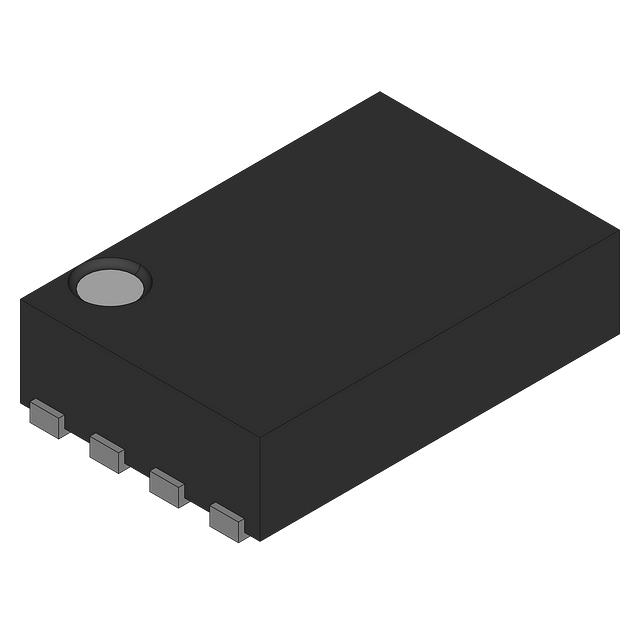

ON Semiconductor CAT93C76BHU4I-GT3	4 MHz	85 °C	-40 °C	Microwire	Surface Mount	1.8 V	5.5 V	8-UFDFN Exposed Pad			8-UDFN-EP (2x3)	Non-Volatile		EEPROM	8 Kbit	EEPROM			1K x 8 512 x 16	250 ns
ON Semiconductor CAT93C76BYI-GT3	4 MHz	85 °C	-40 °C	Microwire	Surface Mount	1.8 V	5.5 V	8-TSSOP			8-TSSOP	Non-Volatile	1K x 8 512 x 16	EEPROM	8 Kbit	EEPROM	0.173 "	4.4 mm

Catalog

EEPROM Serial 8-Kb Microwire

Key Features

• High Speed Operation: 4 MHz (5 V), 2 MHz (1.8 V)

• Supply Voltage Range: 1.8 V to 5.5 V (-40°C to +125°C)1.65 V to 5.5 V (-20°C to +85°C)

• Selectable x8 or x16 Memory Organization

• Selftimed Write Cycle with Auto-clear

• Software Write Protection

• Power-up Inadvertant Write Protection

• Low Power CMOS Technology

• 1,000,000 Program/Erase Cycles

• 100 Year Data Retention

• Industrial Temperature Ranges

• Sequential Read

• 8-pin SOIC, TSSOP and 8-Pad UDFN Packages

• This Device is PbFree, Halogen Free/BFR Free and RoHS Compliant

Description

The CAT93C76B is an 8-Kb Microwire Serial EEPROM memory device which is configured as either registers of 16 bits (ORG pin at VCCor Not Connected) or 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C76B is manufactured using ON Semiconductor's advanced CMOS EEPROM floating gate technology. The device is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years. The device is available in 8-pin PDIP, SOIC, TSSOP, MSOP, and 8-pad UDFN packages.
