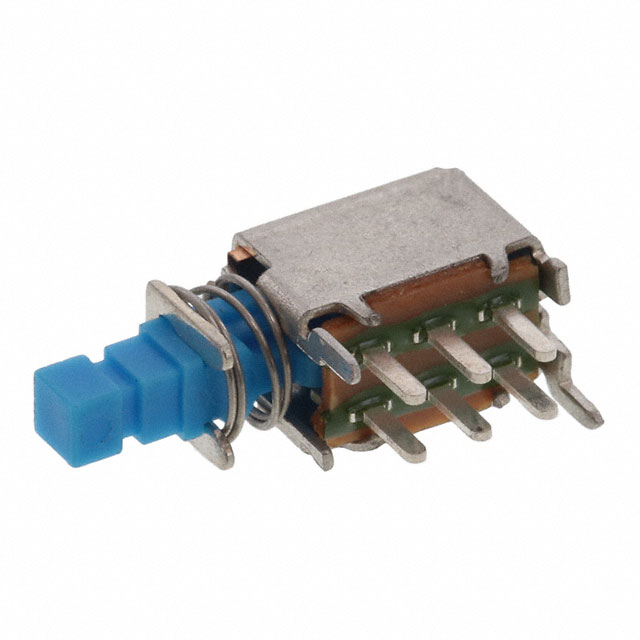

LC2255 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.3A/30VDC; RCONT MAX: 20MΩ; THT
| Part | Electrical Life | Mounting Type | Switch Function | Current Rating (Amps) | Actuator Type | Circuit | Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | Right Angle Through Hole | On-On | 300 mA | Plunger for Cap | DPDT | Standard | No Marking | 85 °C | -20 ░C | PC Pin | 30 V |
 E-Switch | 10000 Cycles | Right Angle Through Hole | On-On | 300 mA | Button Round | DPDT | Standard | No Marking | 85 °C | -20 ░C | PC Pin | 30 V |
 E-Switch | 10000 Cycles | Right Angle Through Hole | On-Mom | 300 mA | Plunger for Cap | DPDT | Standard | No Marking | 85 °C | -20 ░C | PC Pin | 30 V |
 E-Switch | 10000 Cycles | Right Angle Through Hole | On-On | 300 mA | Plunger for Cap | DPDT | Standard | No Marking | 85 °C | -20 ░C | PC Pin | 30 V |
