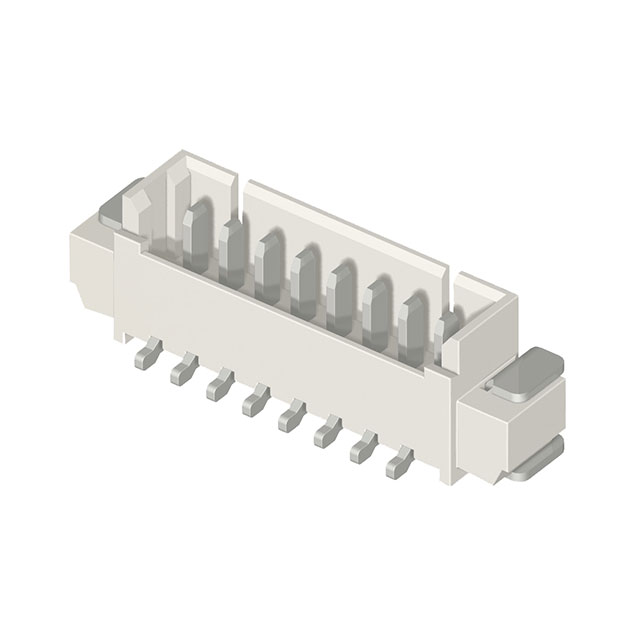

CI4402M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
2 POS 1.25MM(.049) WIRE TO BOARD
| Part | Contact Type | Mounting Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Positions Loaded | Fastening Type | Style | Voltage Rating | Material Flammability Rating | Contact Material | Pitch - Mating | Pitch - Mating | Features | Contact Shape | Insulation Height | Insulation Height | Termination | Insulation Material | Connector Type | Number of Positions | Shrouding | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | Tab | Surface Mount | Tin | 85 °C | -40 C | Natural | All | Detent Lock | Board to Cable/Wire | 125 VAC | UL94 V-0 | Phosphor Bronze | 0.049 in | 1.25 mm | Solder Retention | Rectangular | 4.8 mm | 0.189 in | Solder | Halogen Free Nylon 6T Polyamide (PA6T) | Header | 2 | Shrouded - 3 Wall | 1 |
