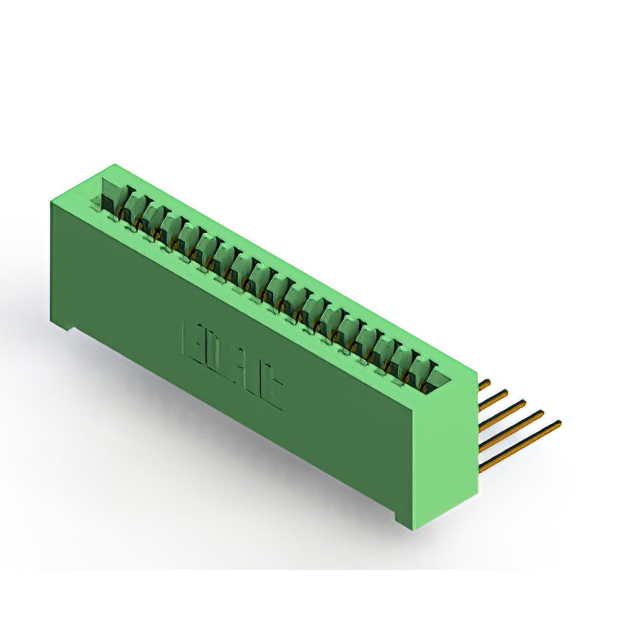

842-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 18POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Pitch | Pitch | Contact Type | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Type | Color | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

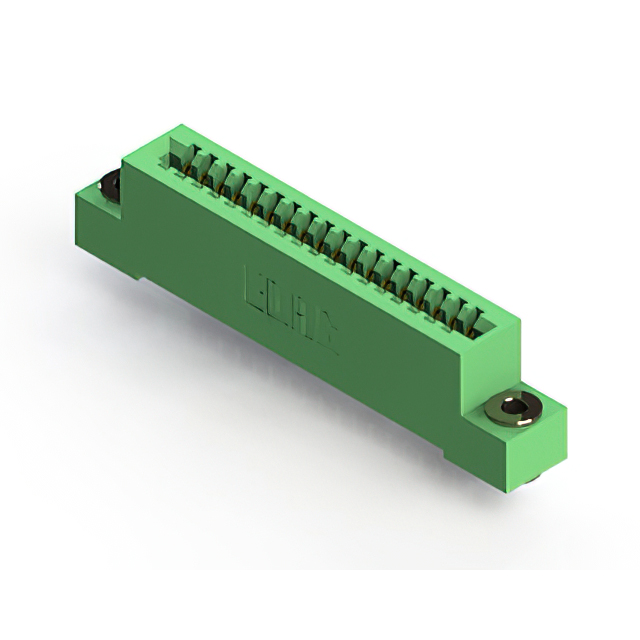

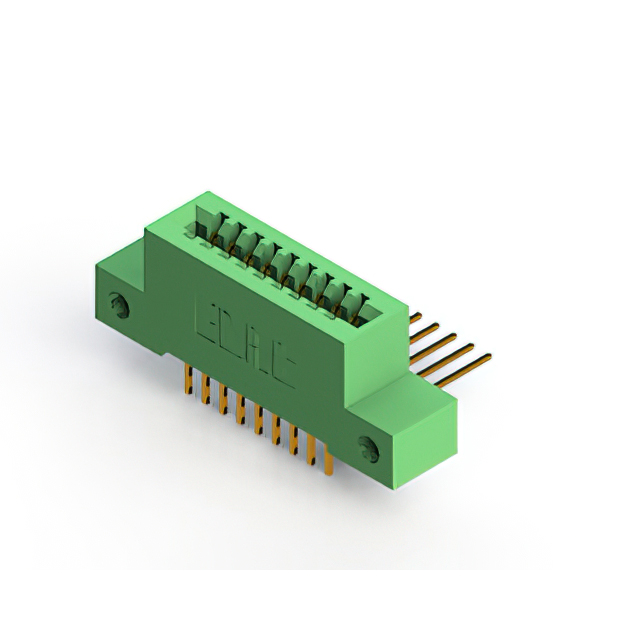

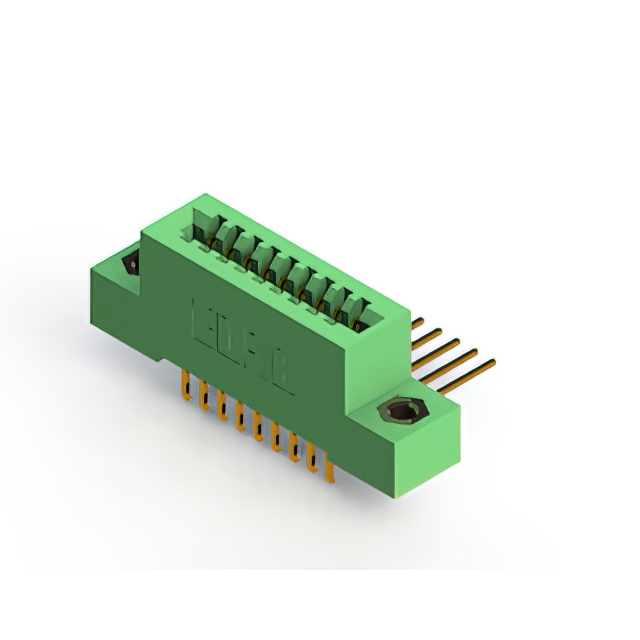

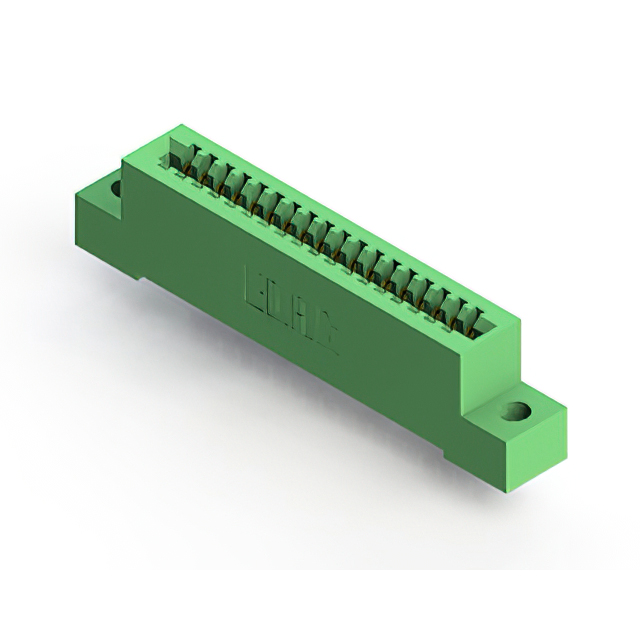

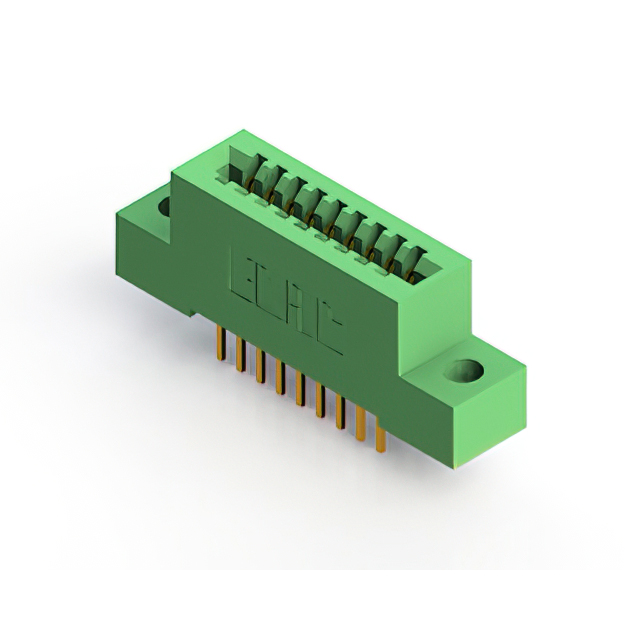

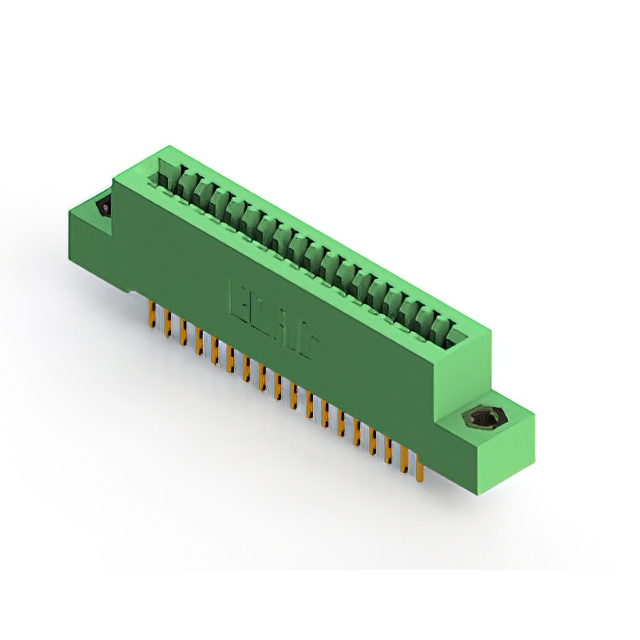

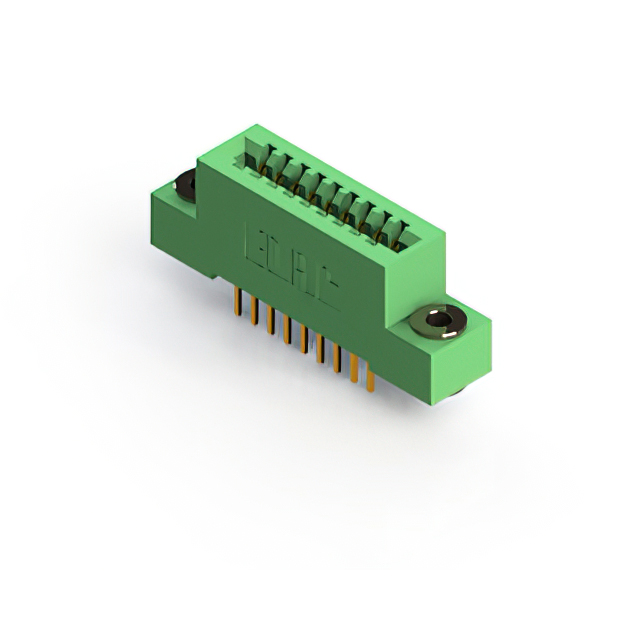

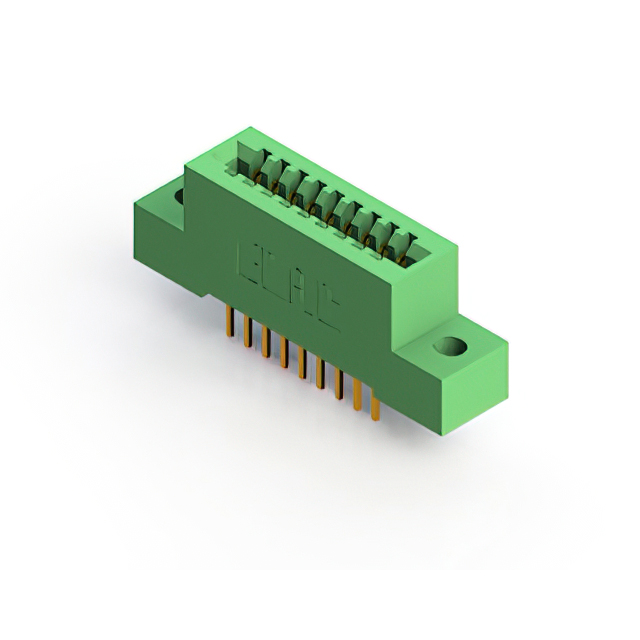

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Single Edge | Green | 0.25 Ám | 10 Áin | Gold | Single | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 1 | 18 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Single Edge | Green | 0.25 Ám | 10 Áin | Gold | Single | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 1 | 18 | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | Female | Non Specified - Single Edge | Green | 0.25 Ám | 10 Áin | Gold | Single | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 1 | 18 | 1 | ||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Single Edge | Green | 0.25 Ám | 10 Áin | Gold | Single | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 1 | 18 | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 9 | 0.1 " | 2.54 mm | Cantilever | Copper Alloy | Through Hole | 125 °C | -40 C | Female | Non Specified - Dual Edge | Green | 2 | 0.25 Ám | 10 Áin | Gold | Dual | 18 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap |
