DML-10 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER SMD 10POS 3MM

Part	Termination	Connector Type	Number of Rows [custom]	Style	Features	Shrouding	Number of Positions Loaded	Contact Material	Fastening Type	Contact Finish - Post	Contact Type	Insulation Color	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Mounting Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Current Rating (Amps)	Contact Length - Post	Contact Length - Post

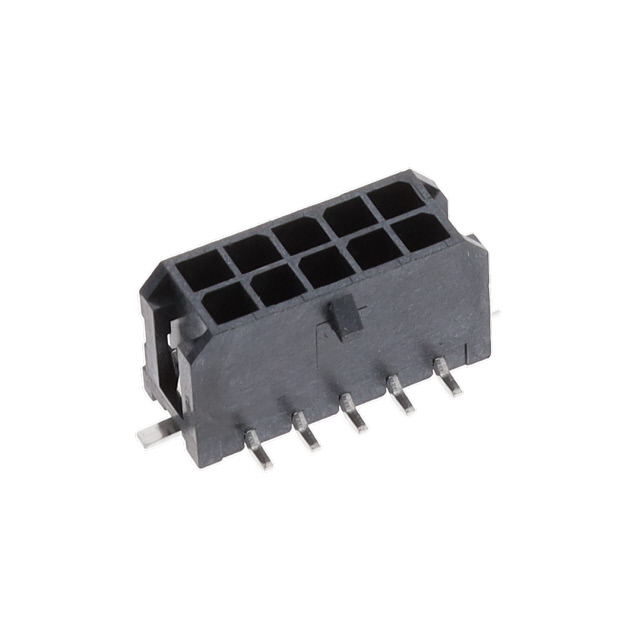

Adam Tech DML-10-A-V-T-TSMT-T/R	Solder	Header	2	Board to Cable/Wire	Solder Retention	Shrouded - 4 Wall	All	Brass	Locking Ramp	Tin	Male Pin	Black	UL94 V-0	250 VAC	5 A	3 mm	0.118 in	0.118 in	3 mm	Square	Surface Mount	Thermoplastic	0.39 in	9.91 mm	10	105 ░C	-25 °C

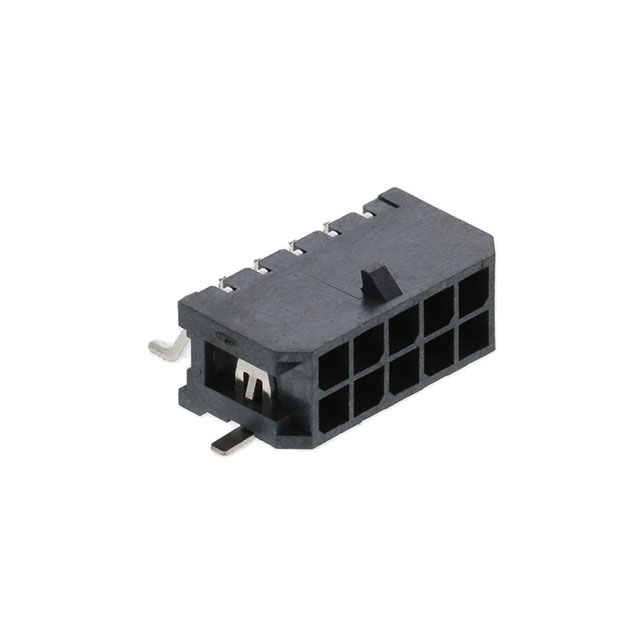

Adam Tech DML-10-A-H-T-A-TSMT-T/R	Solder	Header	2	Board to Cable/Wire	Solder Retention	Shrouded - 4 Wall	All	Brass	Locking Ramp	Tin	Male Pin	Natural	UL94 V-0	250 VAC	5 A	3 mm	0.118 in	0.118 in	3 mm	Square	Right Angle Surface Mount	Thermoplastic	0.289 "		10	85 °C	-25 °C	7.34 mm

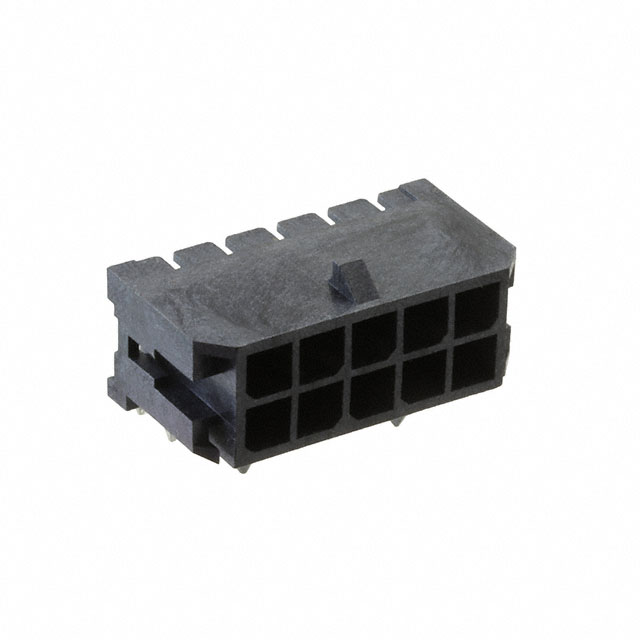

Adam Tech DML-10-A-H-T-A	Solder	Header	2	Board to Cable/Wire	Board Lock	Shrouded - 4 Wall	All	Brass	Locking Ramp	Tin	Male Pin	Black	UL94 V-0	250 V		3 mm	0.118 in	0.118 in	3 mm	Square	Right Angle Through Hole	Thermoplastic	0.27 in	6.86 mm	10				Varies by Wire Gauge	0.125 in	3.18 mm

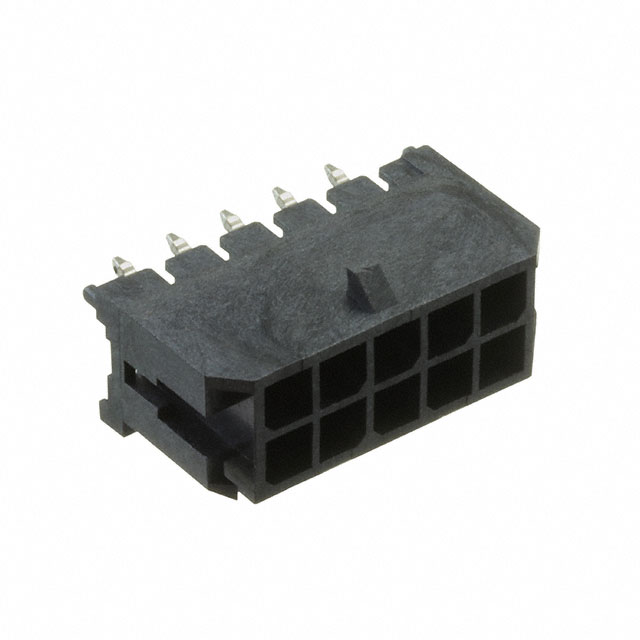

Adam Tech DML-10-A-V-T-A	Kinked Pin Solder	Header	2	Board to Cable/Wire	Board Guide	Shrouded - 4 Wall	All	Brass	Locking Ramp	Tin	Male Pin	Black	UL94 V-0	250 V		3 mm	0.118 in	0.118 in	3 mm	Square	Through Hole	Thermoplastic	0.39 in	9.91 mm	10	125 °C	-45 °C		Varies by Wire Gauge	0.125 in	3.18 mm
