LBW7L Series

Industrial Panel Mount Indicators / Switch Indicators LBW FLUSH PB MAIN. GREEN

Manufacturer: IDEC

Catalog

Industrial Panel Mount Indicators / Switch Indicators LBW FLUSH PB MAIN. GREEN

Part	Mechanical Life	Electrical Life	Illumination Type, Color	Color - Actuator/Cap	Circuit	Mounting Type	Type	Illumination Voltage (Nominal)	Ingress Protection	Voltage Rating - AC	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
IDEC LBW7L-M1T14VPW	2000000 Cycles	50000 Cycles	LED White	White	SPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-Mom	55 °C	-25 °C	PC Pin
IDEC LBW7L-M1T24S	2000000 Cycles	50000 Cycles	Blue LED	Clear	DPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-Mom	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
IDEC LBW7L-M1T24VR	2000000 Cycles	50000 Cycles	LED Red	Clear	DPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-Mom	55 °C	-25 °C	PC Pin

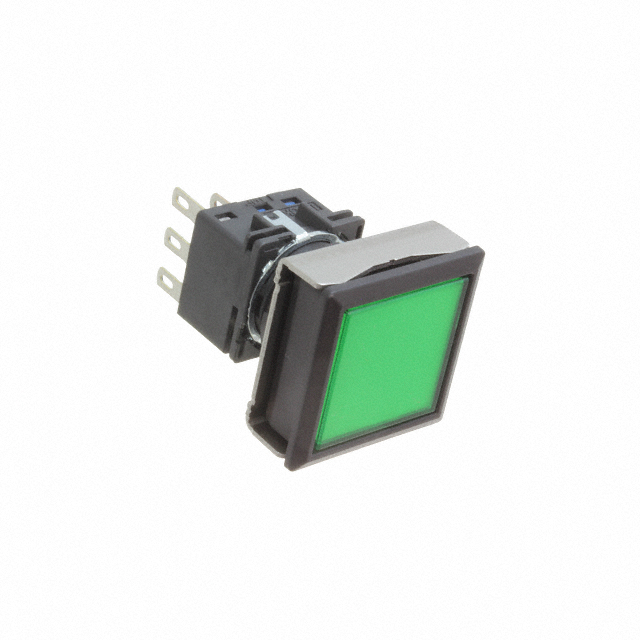

IDEC LBW7L-M1T54G	2000000 Cycles	50000 Cycles	Green LED	Clear	SPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	5 A	On-Mom	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
IDEC LBW7L-A1T54PW	250000 Cycles	50000 Cycles	LED White	White	SPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	5 A	On-On	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
IDEC LBW7L-M1T24VS	2000000 Cycles	50000 Cycles	Blue LED	Clear	DPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-Mom	55 °C	-25 °C	PC Pin
IDEC LBW7L-M1T14W	2000000 Cycles	50000 Cycles	LED White	White	SPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-Mom	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
IDEC LBW7L-A1T24R	250000 Cycles	50000 Cycles	LED Red	Clear	DPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	100 mA	On-On	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)

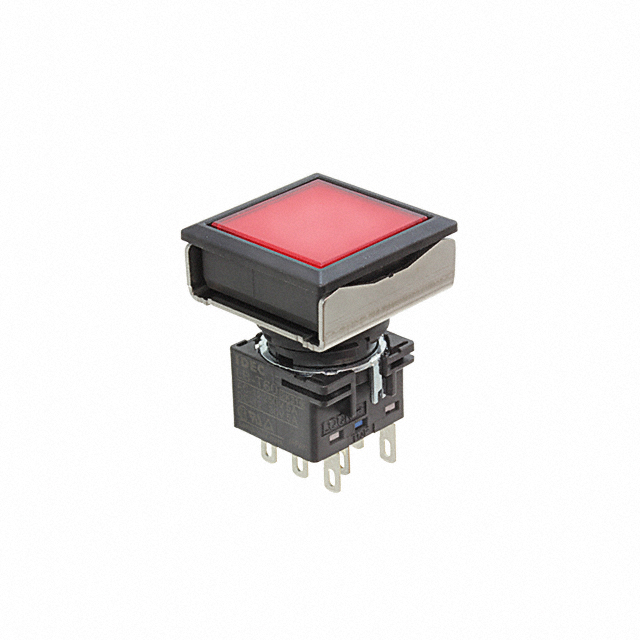

IDEC LBW7L-M1T64R	2000000 Cycles	50000 Cycles	LED Red	Clear	DPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	5 A	On-Mom	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
IDEC LBW7L-M1T54S	2000000 Cycles	50000 Cycles	Blue LED	Clear	SPDT	Panel Mount Front	Illuminated Standard	24 VAC/DC	IP65 - Dust Tight Water Resistant	125 V	No Marking	30 V	22.5 mm	22.5 mm	5 A	On-Mom	55 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)
