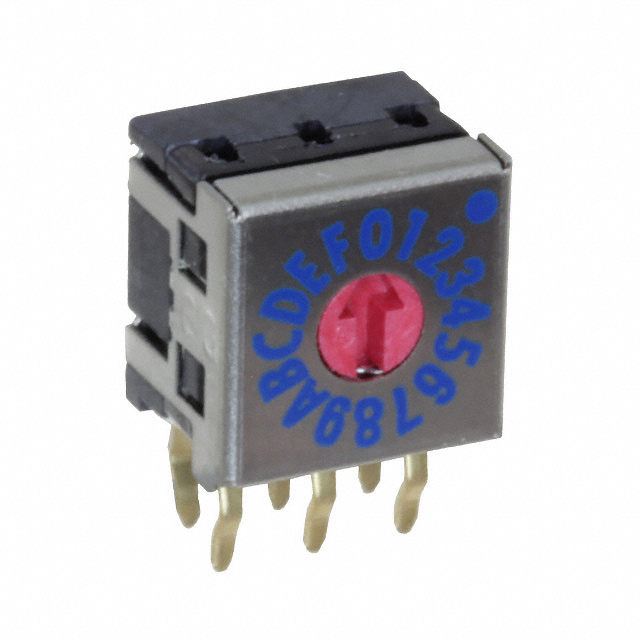

DRR7116 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SW ROTARY DIP HEX COMP 0.03A 15V
| Part | Circuit | Termination Style | Actuator Type | Current Rating (Amps) | Pitch [x] | Pitch | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Washable | Actuator Level | Height Above Board | Height Above Board | Mechanical Life | Mounting Type | Contact Finish | Length [x] | Length [x] | Number of Positions | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Hexadecimal Complement | PC Pin | Rotary for Tool | 30 mA | 0.1 in | Full | 2.54 mm | -25 °C | 85 °C | 20000 Steps | Flush Recessed | 7.9 mm | 0.311 in | 20000 Cycles | Through Hole Right Angle | Gold | 7.5 mm | 0.295 in | 16 | Process Sealed | 15 VDC |
