39LA Series
Manufacturer: Bourns Inc.
Beta
⌘K

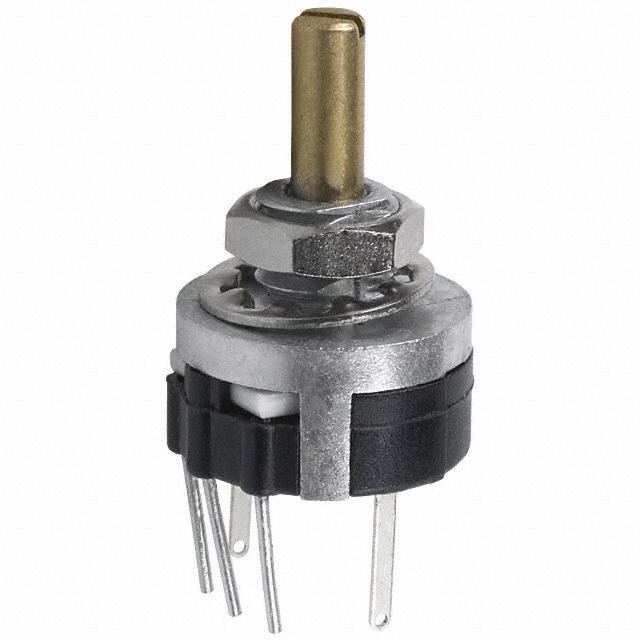

POT 20K OHM 1/4W PLASTIC LINEAR
| Part | Number of Turns | Actuator Type | Resistance (Ohms) | Actuator Length [x] | Actuator Length [x] | Termination Style | Size - Body [diameter] | Size - Body [diameter] | Taper | Built in Switch | Number of Gangs | Tolerance | Bushing Thread | Rotation | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistive Material | Adjustment Type | Mounting Type | Power (Watts) | Power (Watts) | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 | Slotted | 20 kOhms | 12.7 mm | 0.5 in | PC Pins | 0.512 " | 13 mm | Linear | Momentary Push SPST | 1 | 20 % | 1/4-28 | 230 ° | 3.18 mm | 0.125 in | Conductive Plastic | Top Adjustment | Panel Mount | 0.25 W | 0.25 W | ||
Bourns Inc. | 1 | Slotted | 12.7 mm | 0.5 in | PC Pins | 0.512 " | 13 mm | Linear | Momentary Push SPST | 1 | 20 % | 1/4-28 | 230 ° | 3.18 mm | 0.125 in | Conductive Plastic | Top Adjustment | Panel Mount | 0.25 W | 0.25 W | 50 kOhms | ||
Bourns Inc. | 1 | Slotted | 12.7 mm | 0.5 in | PC Pins | 0.512 " | 13 mm | Linear | Momentary Push SPST | 1 | 20 % | 1/4-28 | 230 ° | 3.18 mm | 0.125 in | Conductive Plastic | Top Adjustment | Panel Mount | 0.25 W | 0.25 W | 10k |
