9732 Series
Manufacturer: Belden Inc.
Beta
⌘K

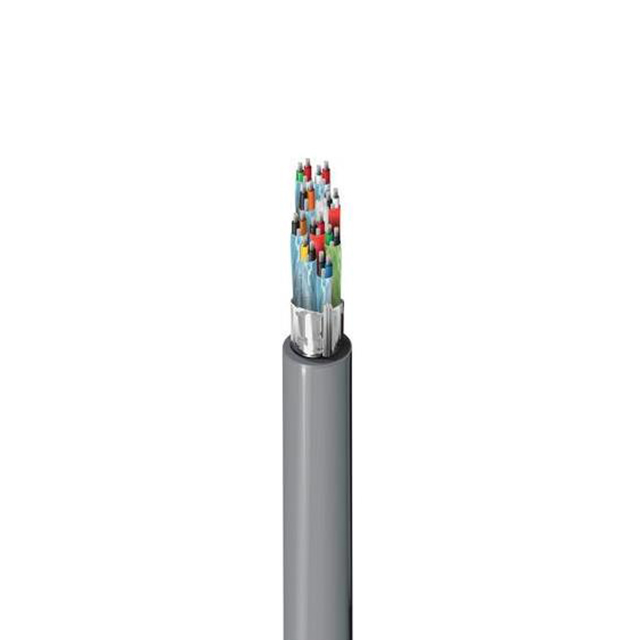

CABLE 18COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Conductor Material | Cable Type | Ratings | Features | Usage | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Wire Gauge | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 7 | 32 AWG | 18 | 1.219 mm | 0.048 in | 100 ft | 30.5 m | 80 °C | -20 ░C | Foil | Copper Tinned | Multi-Conductor | UL Style 2493 | Drain Wire | Computer | Poly-Vinyl Chloride (PVC) | 300 VDC | 12.4 mm | 0.488 in | Foam Polyethylene (FPE) | 24 AWG | Chrome |
