AR 28-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

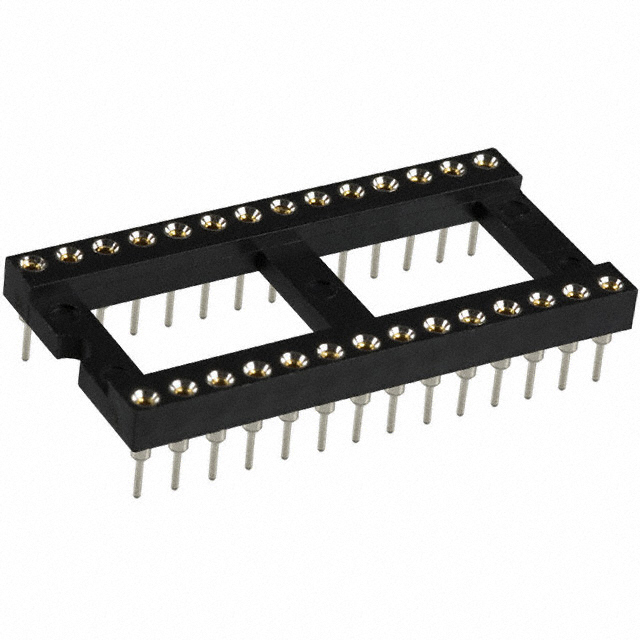

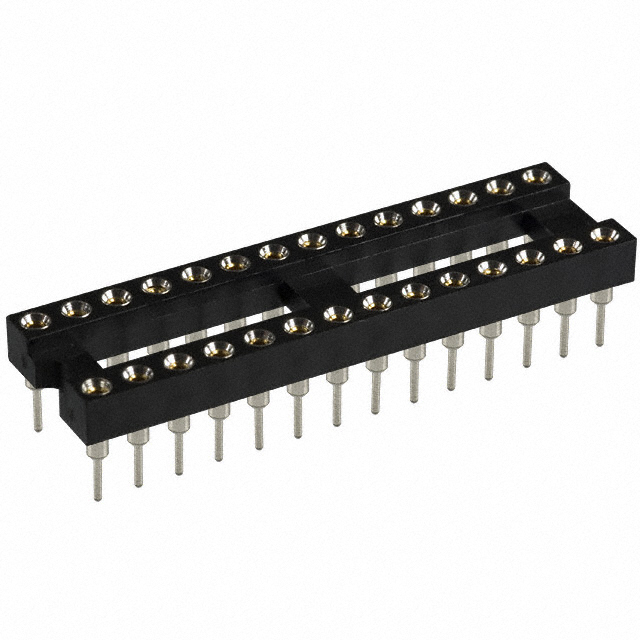

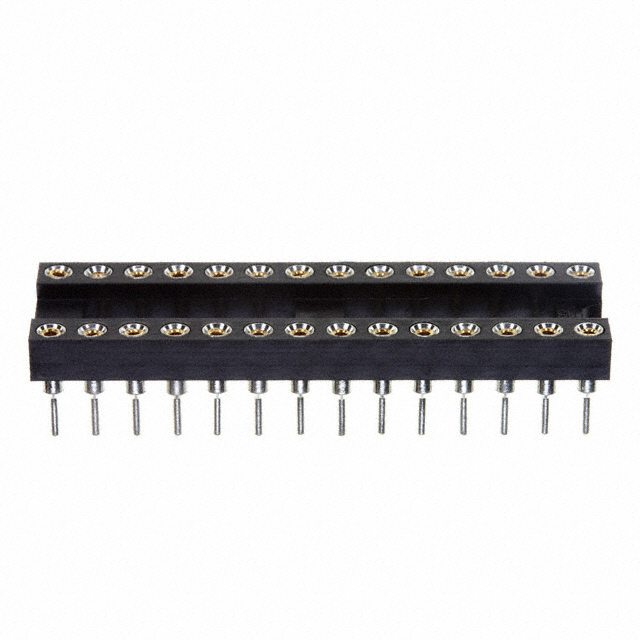

CONN IC DIP SOCKET 28POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Positions or Pins (Grid) | Contact Material - Mating | Contact Material - Post | Features | Termination | Type | Type | Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch - Post | Pitch - Post | Type [custom] | Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | 0.25 µm | 10 µin | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Solder | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | ||
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | 0.25 µm | 10 µin | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Solder | DIP | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | 15.24 mm | 0.6 in | ||
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Solder | DIP | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | 15.24 mm | 0.6 in | |||||
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | 0.76 Ám | 30 Áin | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Solder | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | ||
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | 0.76 Ám | 30 Áin | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Solder | DIP | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | 15.24 mm | 0.6 in | ||
 Assmann WSW Components | 3 A | UL94 V-0 | 4 mOhm | Tin | 200 µin | 5.08 µm | Through Hole | 28 | Beryllium Copper | Beryllium Copper | Open Frame | Wire Wrap | DIP | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Polyester Thermoplastic | 0.1 in | 2.54 mm | 15.24 mm | 0.6 in |
