1747147 Series

Catalog

CONN RCPT 4POS 0.4 GOLD PCB

Part	Insulation Material	Contact Type	Mounting Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Number of Positions	Fastening Type	Number of Rows	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Mating	Contact Finish - Post	Contact Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating

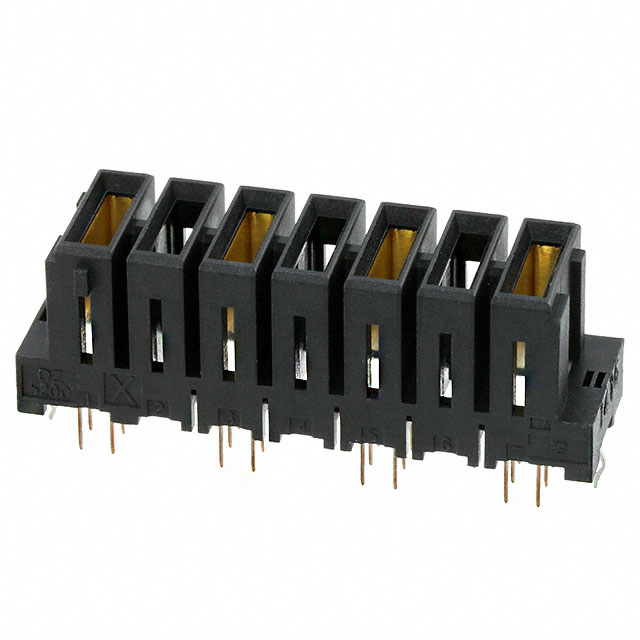

TE Connectivity Raychem Cable Protection 5-1747147-4	Polyester Glass Filled	Female Blade Socket	Through Hole	Solder	2 çm	78.7 çin	600 V	4	Push-Pull	1	Receptacle	0.15 in	3.81 mm	All	105 ░C	-55 °C	Black	UL94 V-0	Rectangular	0.551 in	14 mm	30 A	Gold	Tin	Phosphor Bronze	Board Guide Board Lock	0.203 Ám	8 Áin	10.16 mm	0.4 in

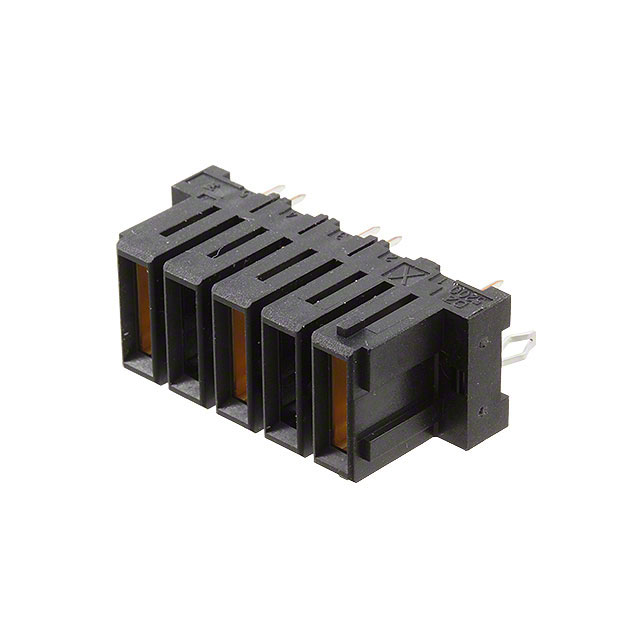

TE Connectivity Raychem Cable Protection 5-1747147-3	Polyester Glass Filled	Female Blade Socket	Through Hole	Solder	2 çm	78.7 çin	600 V		Push-Pull	1	Receptacle	0.15 in	3.81 mm	All	105 ░C	-55 °C	Black	UL94 V-0	Rectangular	0.551 in	14 mm	30 A	Gold	Tin	Phosphor Bronze	Board Guide Board Lock	0.203 Ám	8 Áin	10.16 mm	0.4 in
