29521 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 24V
| Part | Coil Resistance | Termination Style | Approval Agency | Coil Type | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Relay Type | Coil Current | Switching Voltage | Release Time | Features | Contact Rating (Current) | Mounting Type | Load - Max Switching | Contact Material | Coil Voltage | Switching Voltage [Max] | Supplier Device Package | Diode Configuration | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Speed [Min] | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) [Max] | Package / Case | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1142 Ohms | Screw Terminal | EAC | Non Latching | SPDT (1 Form C) | -20 ░C | 50 °C | 9 ms | General Purpose | 21 mA | 250 VAC 250 VDC | 10 ms | Diode Lighted Indicator Socket Included | 5 A | DIN Rail | 120 W 1250 VA | Silver Nickel (AgNi) | 24 VDC | ||||||||||

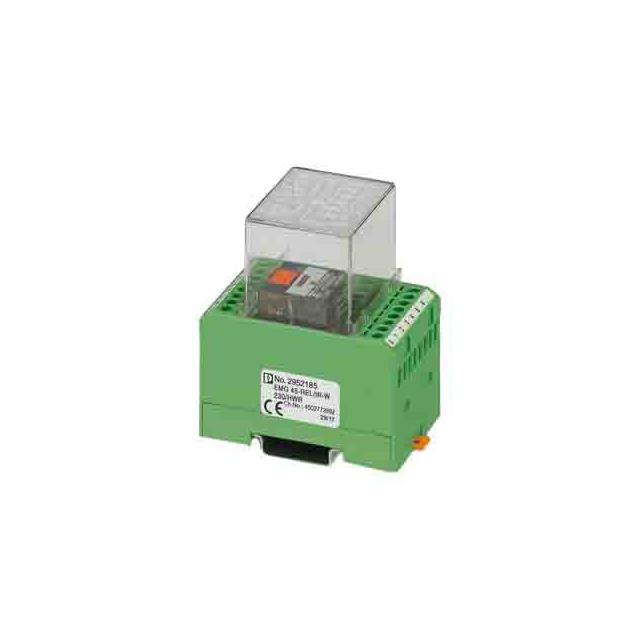

 Phoenix Contact | 14.4 kOhms | Screw Terminal | EAC | Non Latching | DPDT (2 Form C) | -20 ░C | 50 °C | 15 ms | General Purpose | 16 mA | 25 ms | Diode Socket Included | 3 A | DIN Rail | Silver Nickel (AgNi) | 230 VAC | 110 VDC 250 VAC | |||||||||||

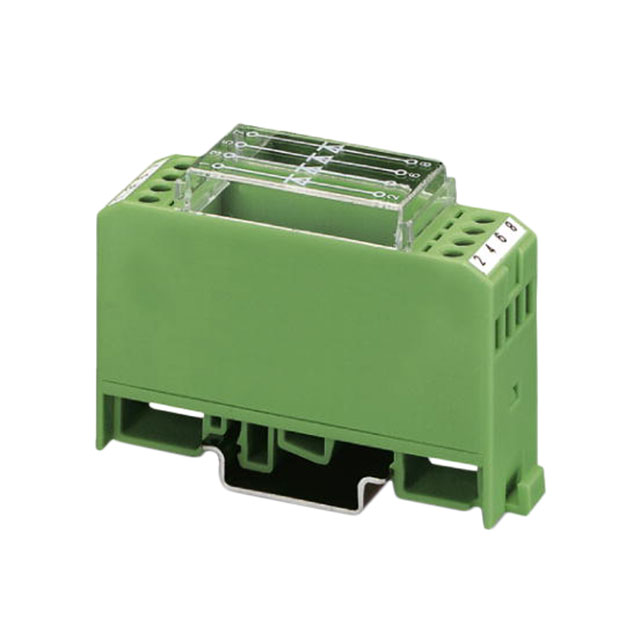

 Phoenix Contact | DIN Rail | Module | 4 Common Cathode | -20 °C | 50 °C | 200 mA 500 ns | 10 çA | 1000 V | Module | Standard |
