CPC1983YE Series
600V AC/DC 1-FORM-A ENHANCED ISO PSIP
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
600V AC/DC 1-FORM-A ENHANCED ISO PSIP
| Part | Load Current | On-State Resistance (Max) [Max] | Termination Style | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Input | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 1 A | 660 mOhms | PC Pin | AC DC | 85 °C | -40 °C | 4-SIP | 8-SIP 4 Leads | 600 V | 0 V | 1.36 VDC | CSA TUV UL | Through Hole |
Littelfuse/Commercial Vehicle Products | 500 mA | 6 Ohms | PC Pin | AC DC | 85 °C | -40 °C | 4-SIP | 8-SIP 4 Leads | 600 V | 0 V | 1.2 VDC | CSA TUV UL | Through Hole |
Key Features
• Current Loads up to 15 Arms@ Tc=25°C
• Dc Loads up to 32 A at 25°C
• Voltage ratings up to 1 kV
• Low On-resistance
• Compact i4-PAC Package

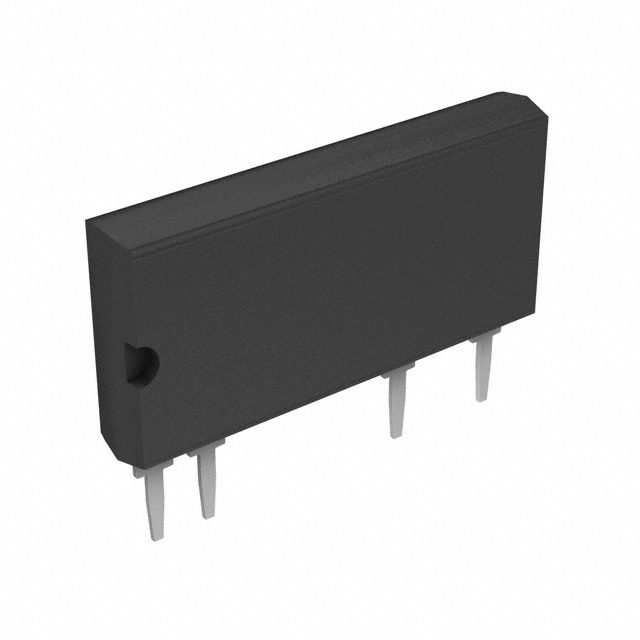

• Industry Standard 4-Pin SIP Package
• Low input control current
• Up to 5 kVrmsinput-to-output isolation
• Low thermal impedances:
• 0.35°C/W - i4-PAC
Description
AI
Optically isolated solid state power relays (MOSFET-based). Power SIP Packages: Pin-to-pin compatibility with other solid state relays, easy upgrade path for existing designs, compatibility for new designs.Input to Output Isolation up to 4000VRMS For power applications requiring a non-biased heat sink with superior thermal management properties, the i4-PAC and ISOPLUS-264 power relays are an ideal solution. For high-current applications requiring enhanced isolation, the new Power SOIC is an ideal choice. To upgrade existing designs or to design compatible new designs, select the Power SIP, which offers pin-for-pin compatibility with many existing power relays.
