GBTAAT0-E Series
Manufacturer: ODU
Beta
⌘K

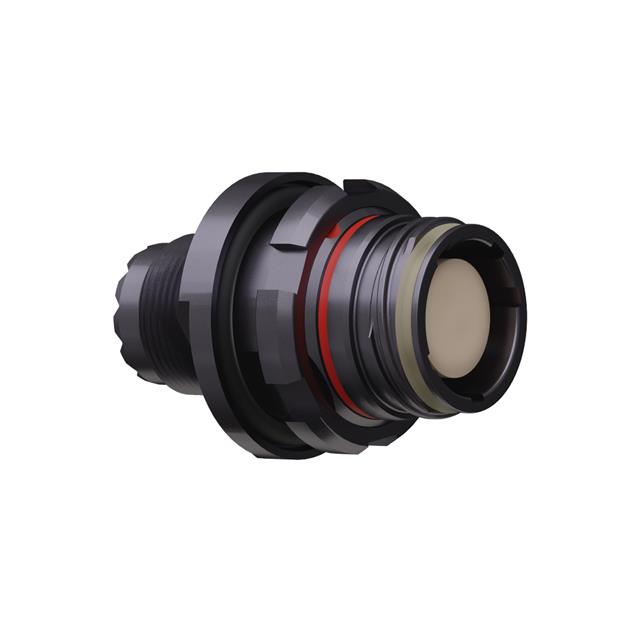

ODU AMC SERIES T RECEPTACLE FOR
| Part | Insert Material | Contact Finish - Mating | Features | Voltage Rating | Shell Finish | Ingress Protection | Mounting Feature | Shell Size - Insert | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Orientation | Number of Positions | Contact Material | Termination | Shell Material | Fastening Type | Current Rating (Amps) | Shielding | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Gold | Backshell Coupling Nut | 50 V | Tin Nickel | IP68 IP69K | Bulkhead - Front Side Nut | 9 | UL94 V-0 | -65 ░C | 175 °C | Free Hanging (In-Line) Panel Mount | 50 µin | 1.27 µm | Metal | A | 8 | Copper Alloy | Crimp | Aluminum | Push-Pull Threaded | 5 A | Shielded | Silver | Receptacle Female Sockets | |
Polyetheretherketone (PEEK) | Gold | Backshell Coupling Nut | 50 V | Tin Nickel | IP68 IP69K | Bulkhead - Front Side Nut | 9 | UL94 V-0 | -65 ░C | 175 °C | Free Hanging (In-Line) Panel Mount | 50 µin | 1.27 µm | Metal | A | 10 | Copper Alloy | Crimp | Aluminum | Push-Pull Threaded | 5 A | Shielded | Silver | Receptacle Female Sockets |
